WEATHERHEAD 1871X4 Male Run Tee 1/8-27 1/4 Inch Tube Size
Item: AC4FMUModel: 1871X4Cross Ref: 2ZKU7
7 In Stock
Ships within 2 days via
10.00% off
€52.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Male Run Tee |
| Application | Air |
| Color | Gold |
| Connection | Quick Connect |
| Connection Type | Quick Connect |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side A Tube Outer Diameter | 1/4" |
| Fitting Side B Connection Type | Push-To-Connect |
| Fitting Side B Tube Outer Diameter | 1/4" |
| Fitting Side C Tube Outer Diameter | 1/8" |
| Gasket Material | Ethylene Propylene Rubber |
| Includes Pre-applied Thread Sealant | Yes |
| Material | Brass |
| Maximum Operating Pressure | 150 psi |
| Maximum Operating Temperature | 200°F |
| Minimum Operating Temperature | 40°F |
| Overall Length | 1 5/8" |
| Pipe Size | 1/8" |
| Pressure Rating | 150 psi |
| Specific Fitting Shape | Adapter Tee |
| System Of Measurement | Imperial |
| Temp. Range | -40°F to +200°F |
| Thread Size | 1/8"-27 |
| Tube Size | 1/4" |
| Type | Male |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 1.78 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 4.57 |
| HS code | 7412200015 |
| Country of Origin | MX |
Product Variants
| Product | Model | Connection Type | Connection | Specific Fitting Shape | Fitting Side A Connection Type | Fitting Side B Connection Type | Overall Length | Fitting Side C Connection Type | Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
1871X4S | Quick Connect | Quick Connect | Swivel Adapter Tee | Push-To-Connect | Push-To-Connect | 1 3/4" | Push-To-Connect | -40°F to +200°F | €61.34 | |
 |

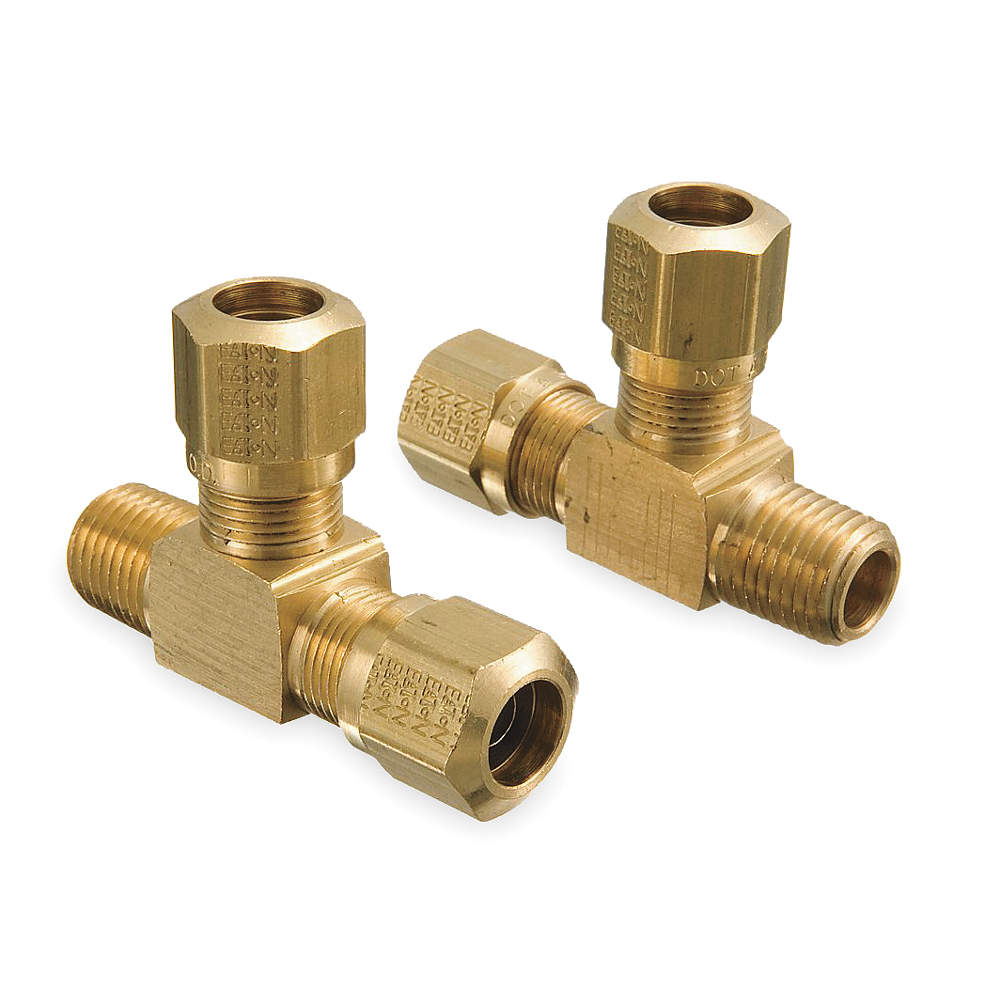

1471X4 | Compression Nylon Tube | Compression Nylon Tube | Adapter Tee | Compression | Compression | 1 9/16" | MNPT | -40°F to +200°F | €46.01 |
