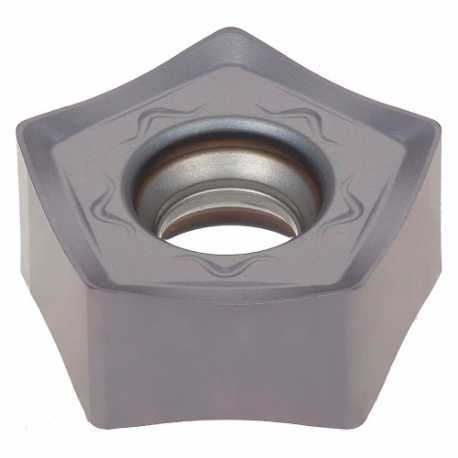

TUNGALOY 6999323 Pentagon Milling Insert, 0.480 Inch Inscribed Circle, 0.80 mm Corner Radius
Item: CU7CZGModel: 6999323Cross Ref: 38UE70
7 In Stock
Ships within 2 days via
10.00% off
€38.41 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Milling Insert |
| Ansi Code | PNMU0905GNEN-MJ AH3135 |
| Cast Iron (k) Compatibility | Yes |
| Chip-breaker | Yes |
| Chip-breaker Code | MJ |
| Chip-breaker Style | Double Sided |
| Clearance Angle | 0° |
| Coating | PVD |
| Coating Process | PVD |
| Compatibility | Yes |
| Corner Radius | 0.8 mm |
| Countersink Hole Angle | 40° to 60° |
| Cutting Application | Medium Cutting |
| Cutting Depth | 6.4 mm |
| Cutting Direction | Neutral |
| Cutting Edge Length | 8.9 mm |
| Features | Excellent Wear Resistance |
| Finish - Machining | TiAlN |
| For Toolholder | EEN09R125U0125W03, EEN09R150U0125W04, TEN09R200U0075A03, TEN09R200U0075A04, TEN09R200U0075A06, TEN09R250U0075A04, TEN09R250U0075A06, TEN09R250U0075A08, TEN09R300U0100A04, TEN09R300U0100A07, TEN09R300U0100A10, TEN09R400U0150A05, TEN09R400U0150A08, TEN09R400U0150A12, TEN09R500U0150A06, TEN09R500U0150A10, TEN09R500U0150A16, TEN09R600U0200A07, TEN09R600U0200A12, TEN09R600U0200A20 |
| For Use With | 70 Degrees End Mills |
| Hardened Compatibility | No |
| Hole Type | 40° To 60° Double Countersink Hole |
| Included Angle | 108° |
| Inscribed Circle | 12/25" |
| Insert Application | Medium |
| Insert Holding Type | Screw On |
| Insert Size | 905 |
| Insert Style | PNMU |
| Lead Angle | 75° |
| Manufacturer Grade | Grade AH3135 |
| Material | Carbide |
| Material - Machining | Carbide |
| Mounting Hole Dia. | 0.181" |
| Mounting Style | Screw On |
| No. Of Edges | 10 |
| Non Ferrous (n) Compatibility | No |
| Number Of Cutting Edges | 10 |
| Primary Material Application | Stainless Steel, Steel |
| Primary Material Application Iso Code | M, P |
| Rake | Positive |
| Secondary Material Application | Nickel, Titanium |
| Secondary Material Application Iso Code | S |
| Shape | Pentagon |
| Stainless Compatibility | No |
| Super Alloy Compatibility | No |
| System Of Measurement | Metric |
| Thickness | 0.236" |
| Workpiece Compatibility | Steel |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Primary Material Application | Secondary Material Application | Inscribed Circle | Corner Radius | Thickness | No. Of Edges | Chip-breaker | Coating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

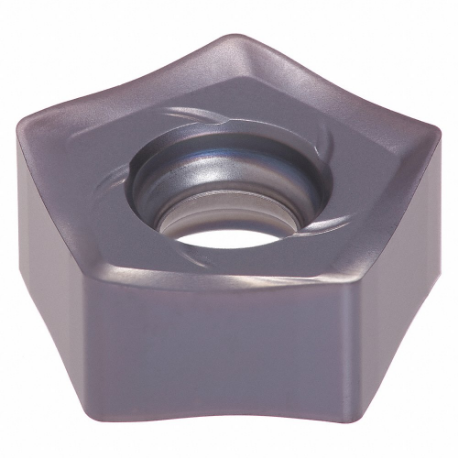

6860126 | Nickel, Steel, Titanium | Cast Iron, Stainless Steel | 12/25" | 0.8 mm | 0.236" | 10 | Yes | PVD | €44.81 |
