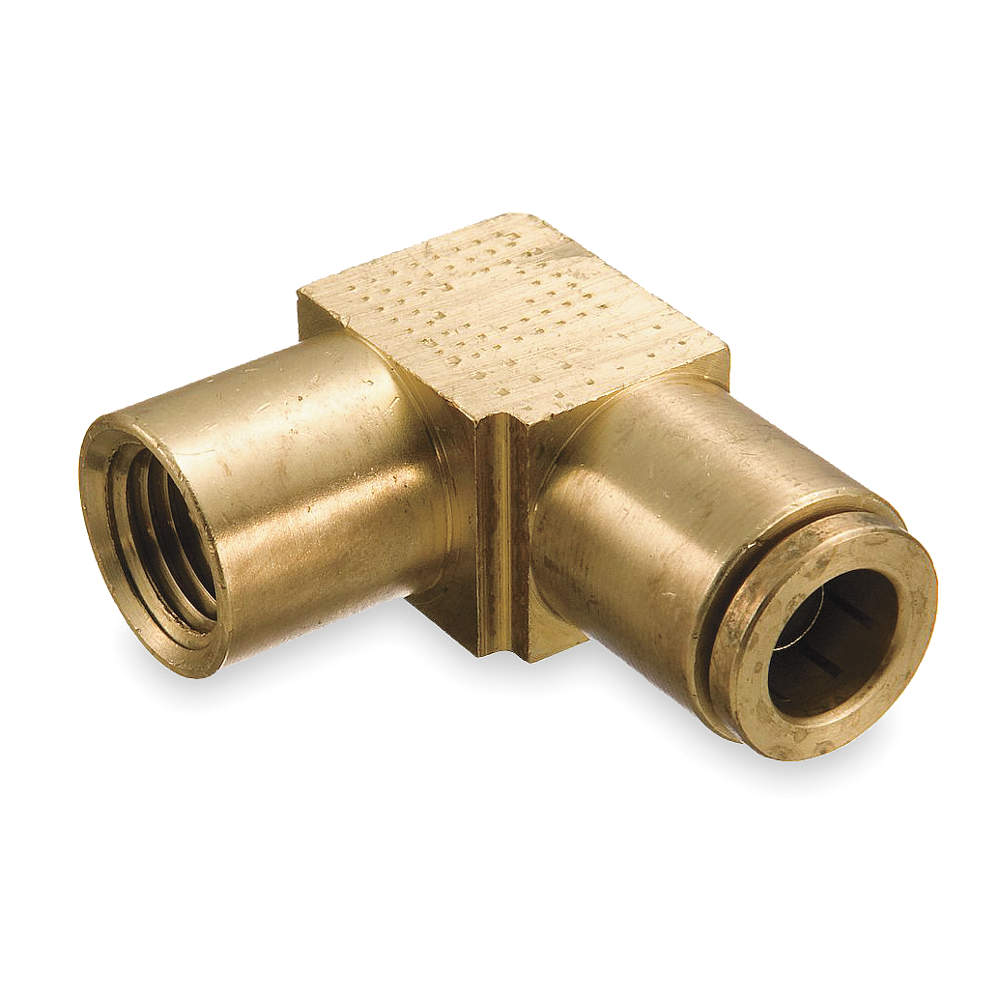

WEATHERHEAD 1870X4 Female Elbow 1/8-27 1/4 Inch Tube Size
Item: AC4FMNModel: 1870X4Cross Ref: 2ZKT8
7 In Stock
Ships within 2 days via
13.00% off
€21.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Female Elbow |
| Angle | 90° |
| Application | Air |
| Color | Gold |
| Connection | Quick Connect |
| Connection Type | Quick Connect |
| End 1 Type | Push To Connect |
| End Gender 2 | Female |
| End Type 1 | Push To Connect |
| End Type 2 | NPTF |
| Female Pipe Size | 1/8" |
| Finish | Brass |
| Fitting Description | 90° Female Elbow |
| Fitting Material | Brass |
| Fitting Pipe Size | 1/8" |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side A Tube Outside Dia. | 1/4" |
| Fitting Side B Connection Type | NPTF |
| Fitting Side B Pipe Size | 1/8" |
| Fitting Thread Size | 1/8"-27 |
| For Use With | Push Connect/Air Brake |
| Gasket Material | Ethylene Propylene Rubber |
| Height | 1.26" |
| Included Pre-applied Thread Sealant | Yes |
| M | 1.03" |
| Male Pipe Size | 1/8" |
| Material | Brass |
| Max. Operating Pressure | 150 psi |
| Max. Operating Temp. | 200°F |
| Min. Operating Temp. | 40°F |
| N | 0.83" |
| Overall Length | 1 3/32" |
| Pipe Size | 1/8" |
| Pressure Rating | 150 psi |
| Release Ring Material | Epr |
| Resistance Properties | Vibration Resistant |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| System Of Measurement | Imperial |
| Temp. | -40°F to +200°F |
| Thread Size | 1/8"-27 |
| Tube Outside Dia. | 1/4" |
| Tube Size | 1/4" |
| Type | Female |
| Width | 3/5" |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 7.62 |
| HS code | 7412200015 |
| Country of Origin | MX |
Product Variants
| Product | Model | Fitting Side A Connection Type | Fitting Side A Tube Outside Dia. | Fitting Side B Connection Type | Included Pre-applied Thread Sealant | Fitting Side B Pipe Size | Tube Size | Connection | Fitting Thread Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
1870X8X8 | Push-To-Connect | 1/2" | NPTF | Yes | 1/2" | 1/2" | Quick Connect | 1/2"-14 | €83.77 | |
 |

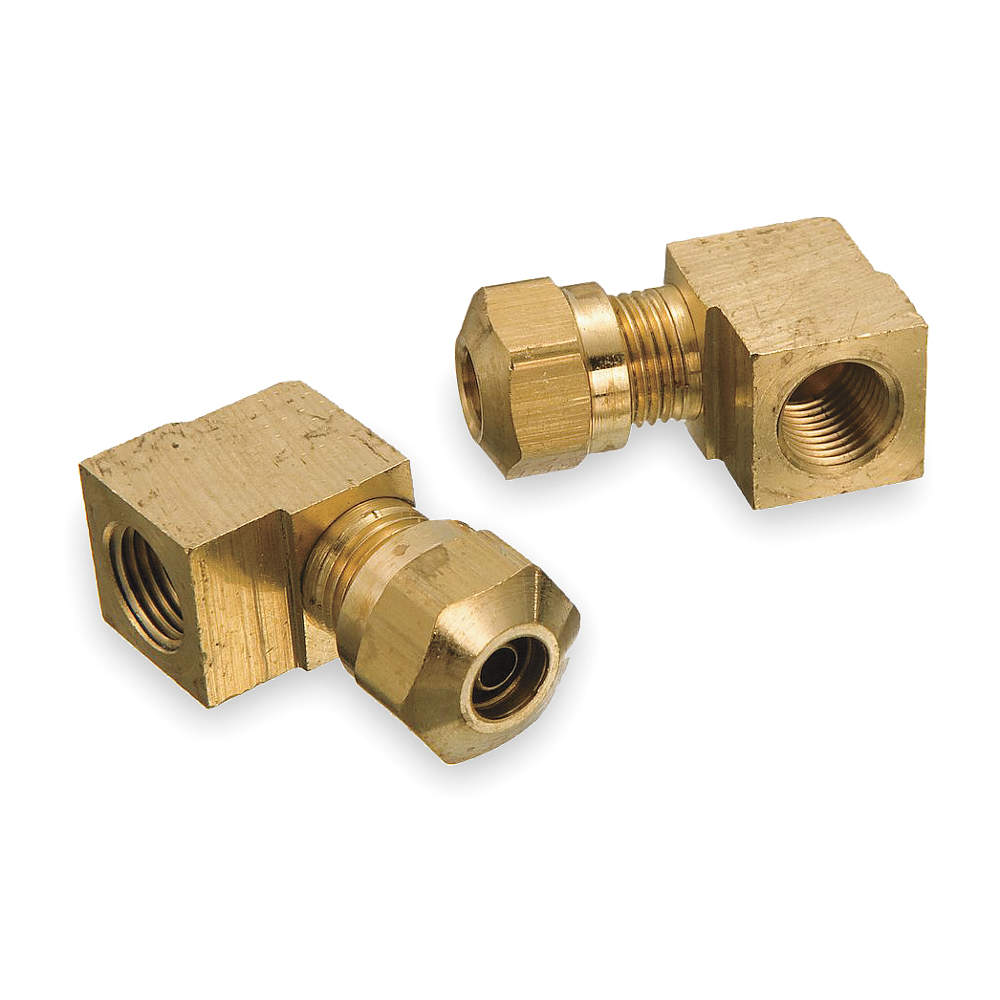

1470X4 | Compression | 1/4" | FNPTF | No | 1/8" | 1/4" | Compression Nylon Tube | - | €49.32 |
