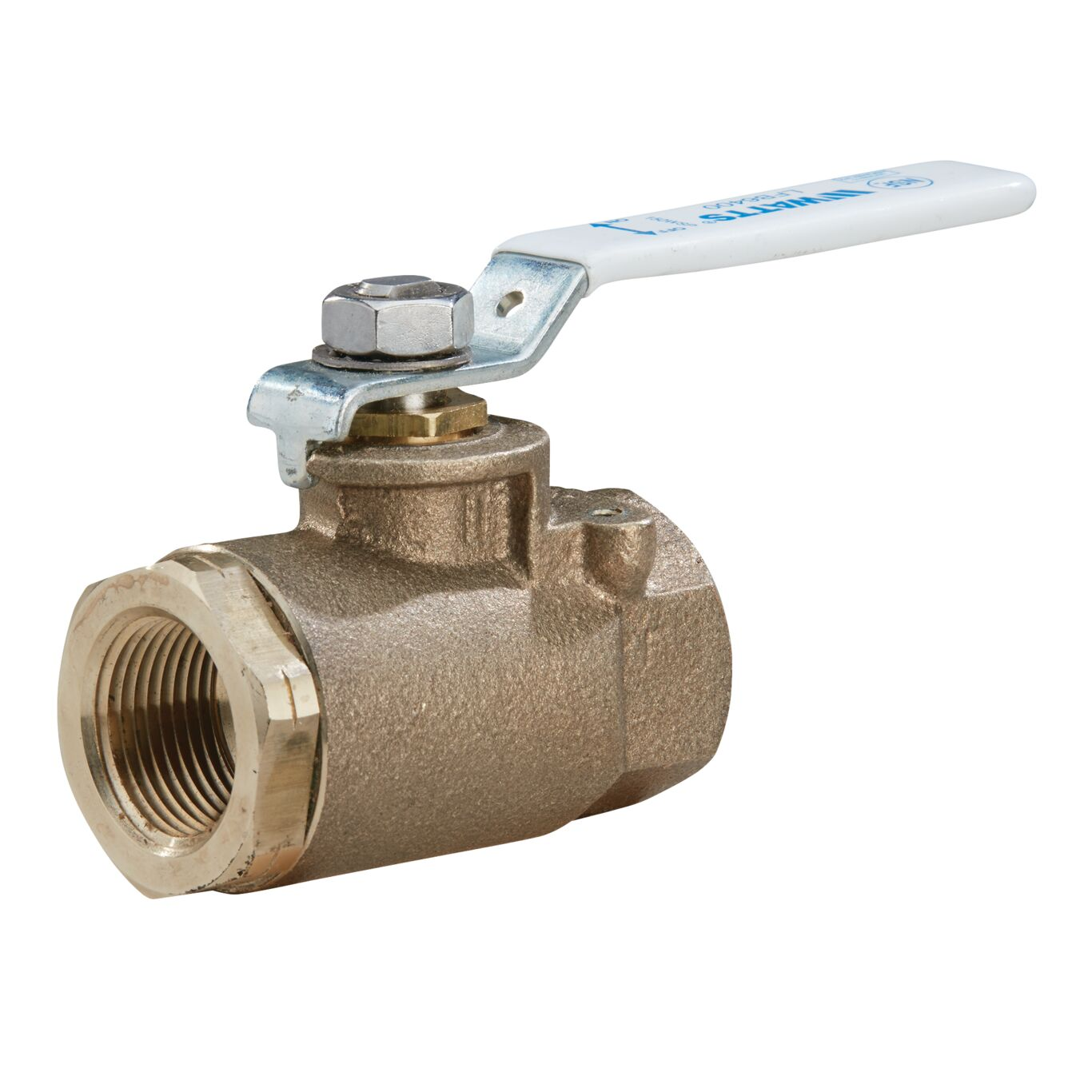

WATTS LFB6400 4 0123210 Ball Valve, 4 Inch Inlet, 450 Deg. F Max. Temp., 400 Psi
€2,369.31 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve |
| Actuation | No |
| Actuator | No |
| Actuator Type | No |
| Assembled | Yes |
| Assembled Dry | Yes |
| Balance Stop Plate | No |
| Ball Material | Stainless Steel |
| Body Finish | Bronze |
| Body Material | Lead Free Copper Silicon Alloy |
| Control Type | Lever Handle |
| Cross Reference | 0123210 |
| Cv Rating | 450 GPM |
| Inlet Connection Size | 4" |
| Inlet Size | 4" |
| Inlet Thread Type | NPT |
| Inlet Type | Female Threaded |
| Lead | Not Present |
| Lead Free | Yes |
| Max. Temp. | 450°F |
| Mfr. Series | LFB6400 Series |
| Min. Temp. | -55°F |
| Operating Torque | 800 lbs.-in. |
| Outlet Connection Thread Type | Female Threaded |
| Outlet Size | 4" |
| Outlet Thread Type | NPT |
| Outlet Type | Female Threaded |
| Port Type | Standard |
| Product Datasheet | watts-lfb6400-1.pdf |
| Seat Material | Carbon, Glass Reinforced PTFE Durafill |
| Shaft Material | Stainless Steel |
| Shaft Material Grade | Grade 316 |
| Stem Packing Material | Glass Reinforced PTFE |
| Stem Shaft Material | Stainless Steel |
| Stem Type | Bottom Loaded Blowout Proof |
| Thrust Washer Material | Glass Reinforced PTFE |
| Torque | 800 N-m |
| Valve Design | Two Piece |
| Valve Style | 2 Piece |
| Washer Material | Glass Reinforced PTFE |
| Wog (psi) | 400 psi |
| Wog Rating | 400 psi WOG |
Product Details:
Ball Valve, 4 Inch Inlet, 450 Deg. F Max. Temp., 400 Psi
Documentation:
Product Variants
| Model | Inlet Size | Outlet Size | Wog (psi) | Min. Temp. | Torque | Ball Material | Port Type | Actuator Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| LFB6400 1 | 1" | 1" | 600 psi | -55°F | 150 lbs.-in. | Stainless Steel | Standard | No | €156.12 | |
| LFB6400 3/4 | 3/4" | 3/4" | 600 psi | -55°F | 90 N-m | Stainless Steel | Standard | No | €107.99 | |
| LFB6400 1/4 | 1/4" | 1/4" | 600 psi | -55°F | 60 N-m | Stainless Steel | Standard | No | €82.96 | |

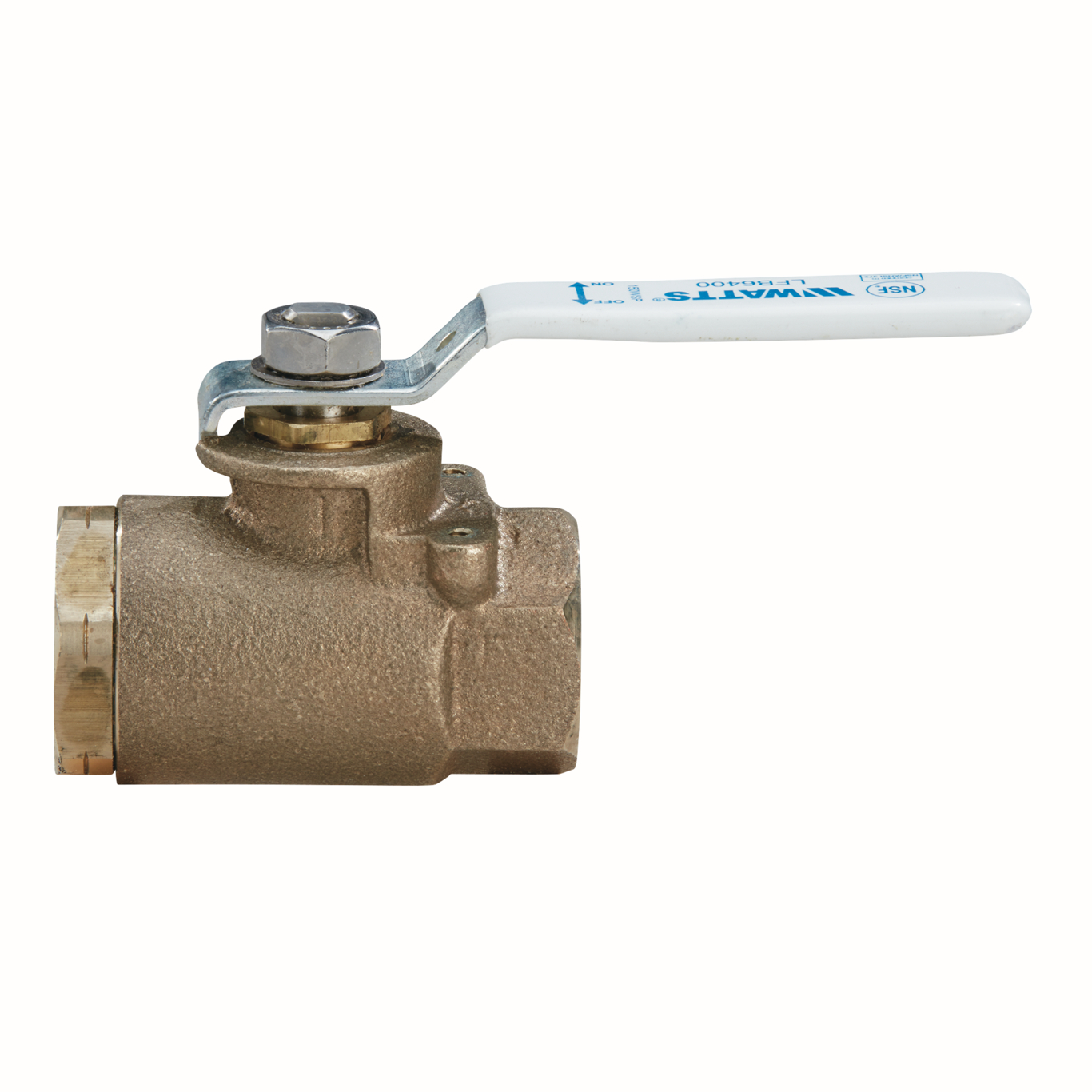

| LFB6400 3/8 | 10 mm | 3/8" | 600 psi | -49°C | 60 N-m | Stainless Steel | Standard | No | €82.96 | |
| LFB6400 1/2 | 1/2" | 1/2" | 600 psi | -55°F | 60 N-m | Stainless Steel | Standard | No | €82.96 | |
| LFB6400 1 1/2 | 1 1/2" | 1 1/2" | 600 psi | -55°F | 250 N-m | Stainless Steel | Standard | No | €273.58 | |
| LFB6400 2 | 2" | 2" | 600 psi | -55°F | 320 N-m | Stainless Steel | Standard | No | €431.26 |
