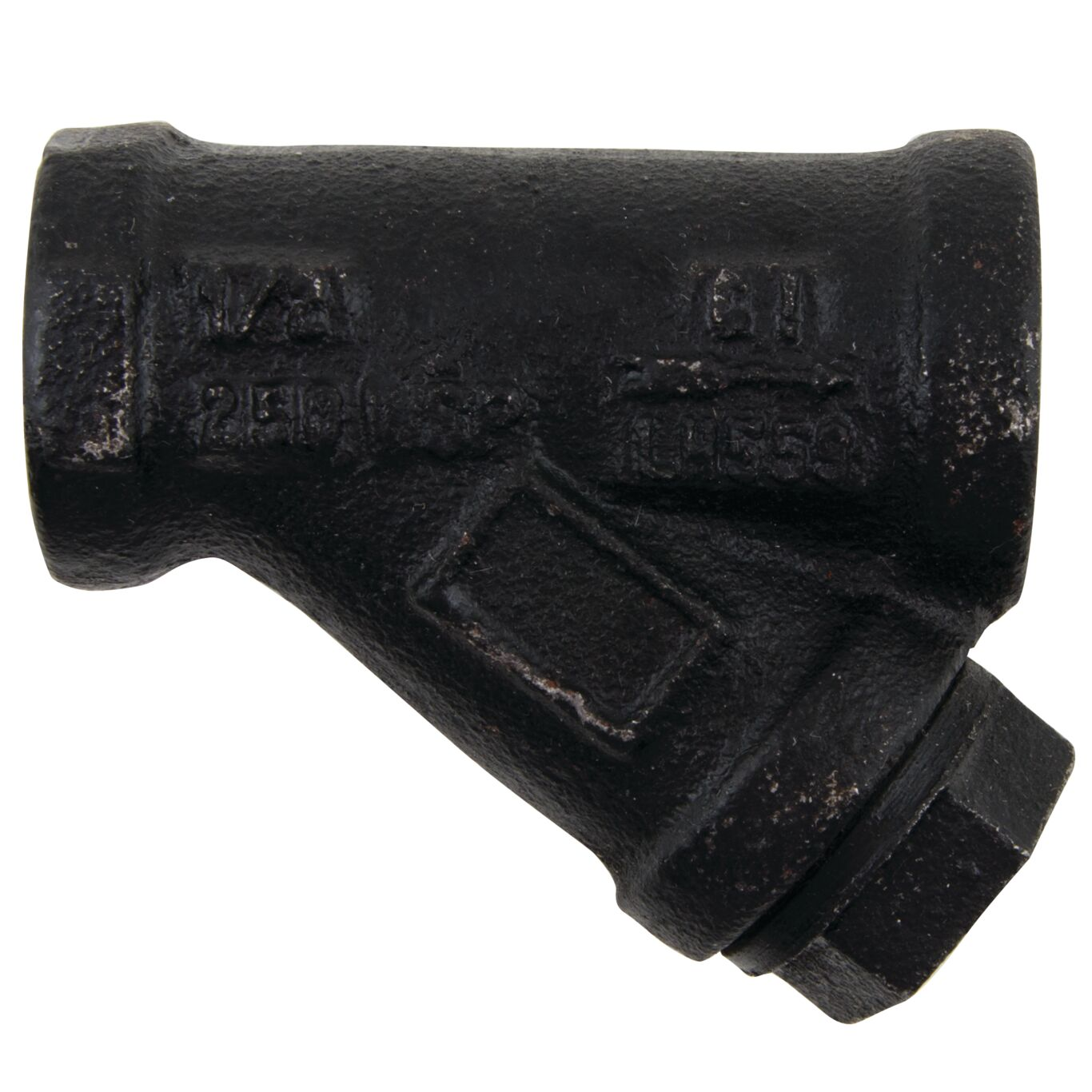

WATTS 77S1 2 0220081 Y Strainer, 2 Inch Inlet, 208 Deg. C, 400 Psi Pressure
Get it by Thursday, Dec 18
€100.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Y Strainer |
| Blowdown Outlet Connection | Female Threaded |
| Blowdown Outlet Size | 3/4" |
| Body Material | Cast Iron |
| Body Pattern | Wye |
| Body Style | Wye |
| Bolt Material | Not Applicable |
| Buy American Act Compliant | No |
| Class Rating | Not Applicable |
| Control Type | Not Applicable |
| Cover Material | Cast Iron |
| Cover Type | Tapped Without Closure Plug |
| Cross Reference | 0220081 |
| Flange Material | Not Applicable |
| Gasket Material | PTFE |
| Grooved Coupling Material | Not Applicable |
| Inlet Connection | Female Threaded |
| Inlet Connection Size | 2" |
| Inlet Size | 2" |
| Inlet Thread Type | NPT |
| Inlet Type | Female Threaded |
| Lead | Present |
| Lead Free | No |
| Max. Operating Temp. | 406 Deg. F |
| Max. Operating Temp. | 208°C |
| Max. Pressure | 27.6 Bar |
| Maximum Pressure And Temperature | 400 psi @ 150°F, 250 psi @ 406°F |
| Maximum Working Pressure And Temperature | 400 psi At 150°F, 250 psi At 406°F |
| Mfr. Series | 77SI Series |
| Min. Temp. | 0°C |
| Outlet Connection | Female Threaded |
| Outlet Connection Size | 2" |
| Outlet Connection Thread Type | Female Threaded |
| Outlet Size | 3/4" |
| Outlet Thread Type | NPT |
| Outlet Type | Female Threaded |
| Plug Material | No Plug |
| Pressure Rating | 27.6 Bar, 17.2 Bar |
| Pressure-temperature Rating | 400 psi @ 150°F, 250 psi @ 406°F |
| Retainer Cover Type | Tapped Without Closure Plug |
| Screen Material | Stainless Steel |
| Screen Size | 20 mesh |
| Seat Material | Not Applicable |
| Strainer | Wye |
| Wog (psi) | 400 psi |
Shipping Info:
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Details:
Y Strainer, 2 Inch Inlet, 208 Deg. C, 400 Psi Pressure
Product Variants
| Product | Model | Cover Type | Plug Material | Retainer Cover Type | Gasket Material | Outlet Size | Body Material | Cover Material | Inlet Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
77SI 1 | Tapped With Closure Plug | Cast Iron | Tapped With Closure Plug | Fiber Filled NBR | 1" | Cast Iron | Cast Iron | 25 mm | €39.32 | |
 |

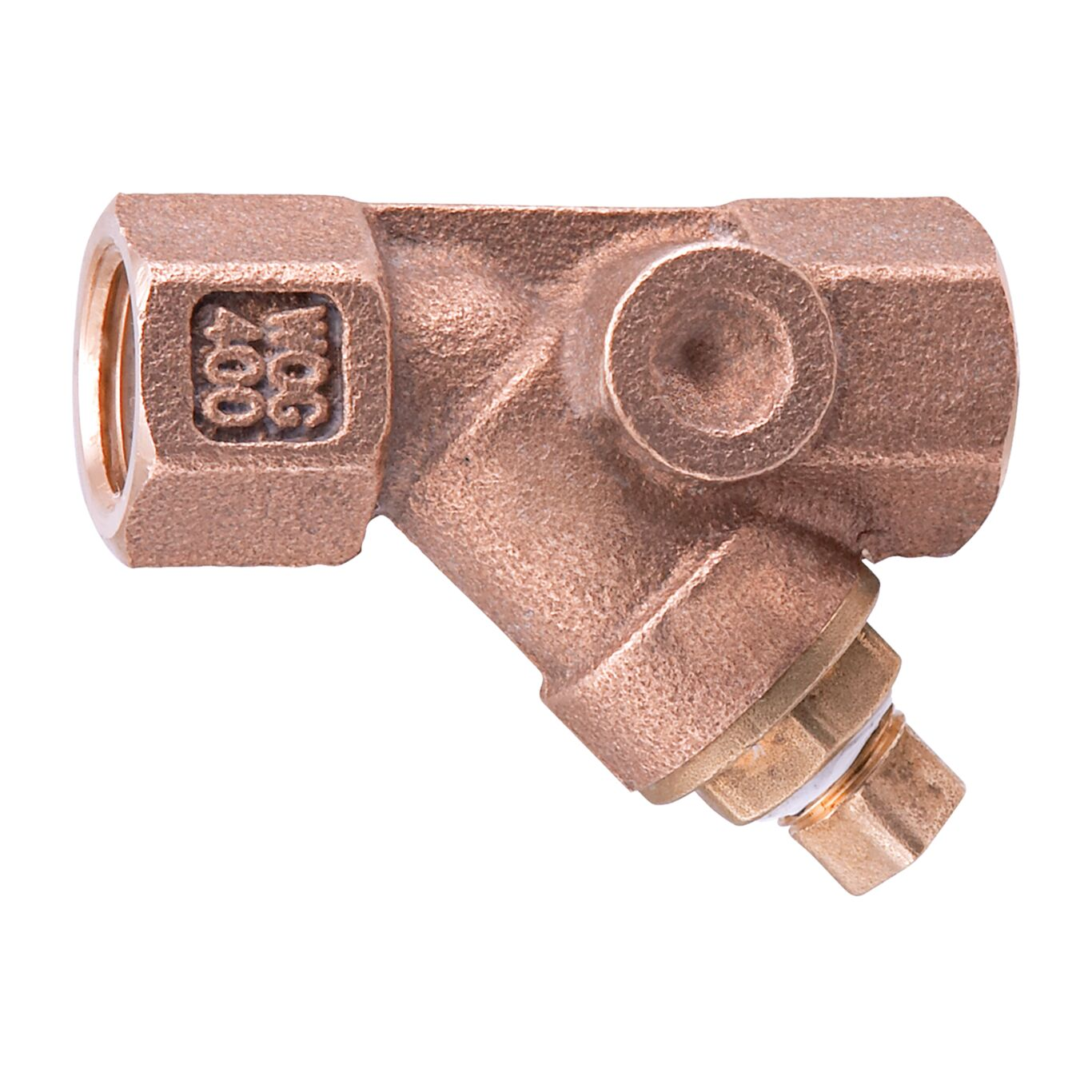

B777SI 1/2 | Tapped With Closure Plug | Bronze | Tapped With Closure Plug | NBR | 1/4" | Bronze | Brass | 1/2" | €65.64 | |
|
B777SI 1 1/4 | Tapped With Closure Plug | Bronze | Tapped With Closure Plug | NBR | 1 1/4" | Bronze | Brass | 32 mm | €116.07 | |
|
B777SI 3/4 | - | Bronze | Tapped With Closure Plug | - | - | - | - | - | €79.24 | |
|
B777SI 1 | Tapped With Closure Plug | Bronze | Tapped With Closure Plug | NBR | 1/2" | Bronze | Brass | 1" | €92.45 | |
|
B777SI 1 1/2 | Tapped With Closure Plug | Bronze | Tapped With Closure Plug | NBR | 3/4" | Bronze | Brass | 1 1/2" | €159.71 | |
 |

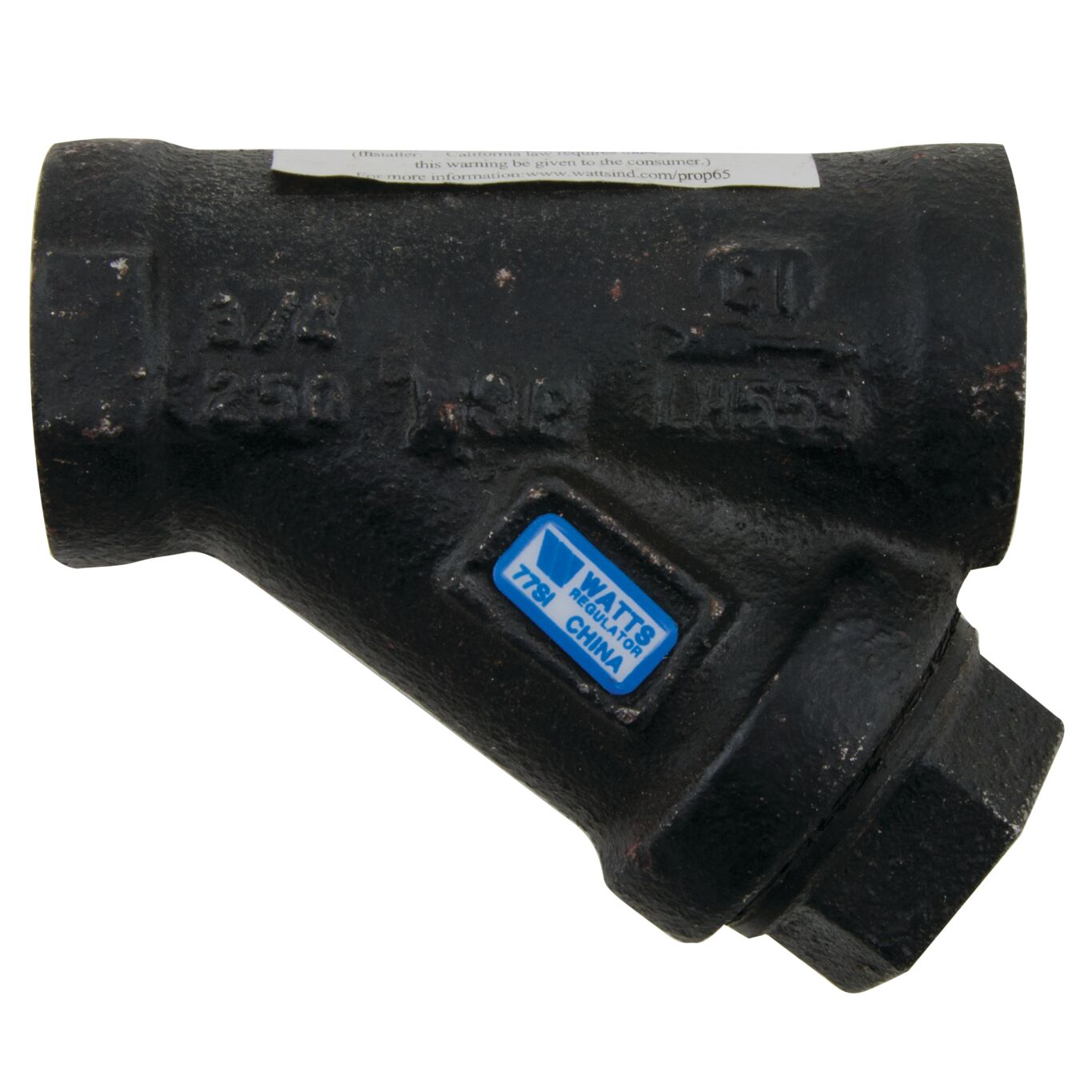

77S1 1 1/2 | Tapped With Closure Plug | Cast Iron | Tapped With Closure Plug | Fiber Filled NBR | 3/4" | Cast Iron | Cast Iron | 1 1/2" | €64.79 |
