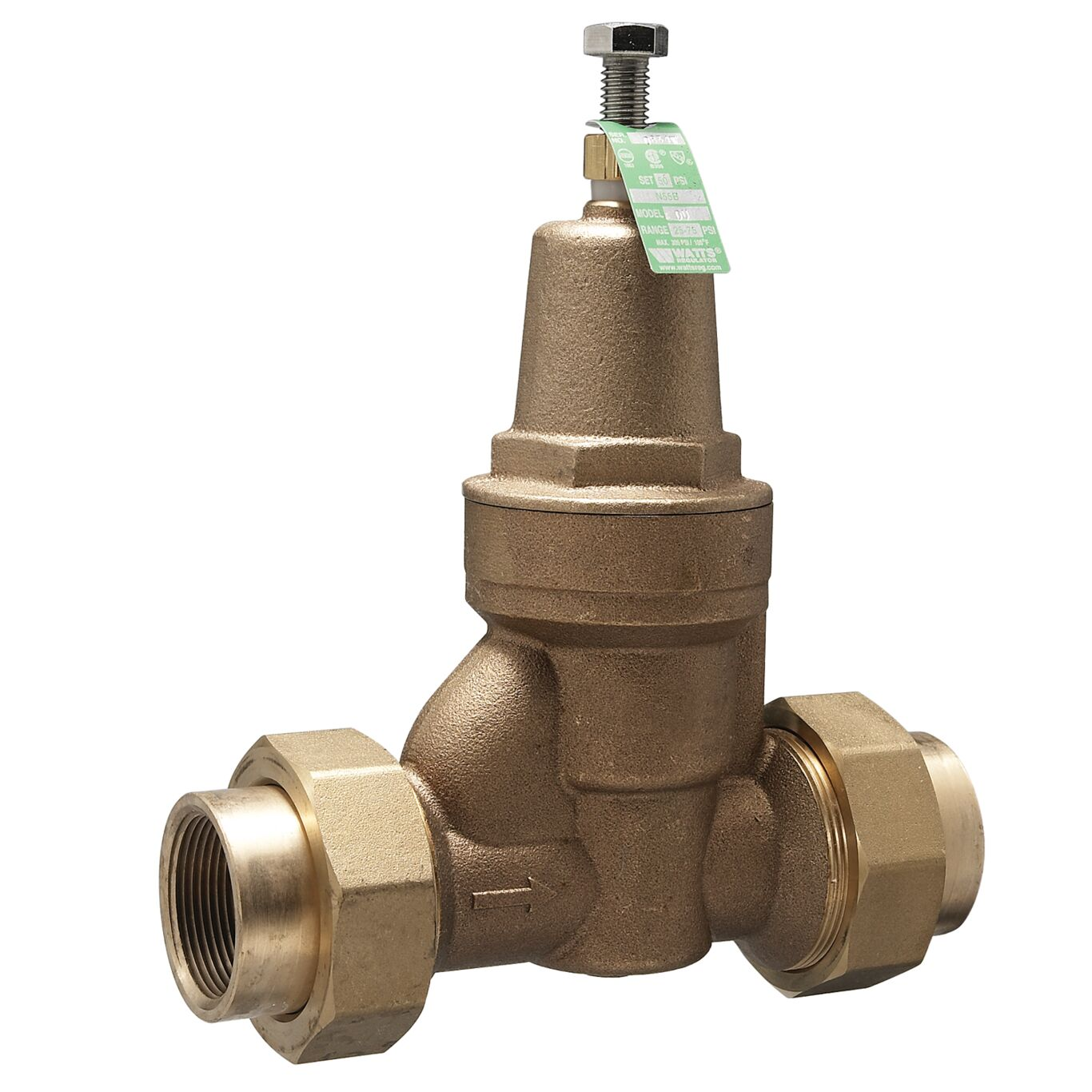

WATTS LFN55B-U 1 1/4 IN 0009674 Water Pressure Reducing Valve, NPT x NPT, 1 1/4 Inch Pipe Size, Brass, 25 PSI to 75 PSI
Item: AE3JEZModel: LFN55B-U 1 1/4 INCross Ref: 5DMA1 / 0009674
7 In Stock
Female Threaded
1 1/4"
400 psi
Union Joint
Ships within 2 days via
10.00% off
€836.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Water Pressure Reducing Valve |
| Adjustable Pressure Range | 25 psi to 75 psi |
| Adjustable Reduced Pressure Range | 1.8 Bar to 5.2 Bar |
| Application | Commercial Use, Residential Use |
| Body Material | Brass |
| Coating/lining | NSF Listed Fusion Bonded Epoxy Lining And Coating |
| Connection Type | NPT Union x FNPT |
| Connections | NPT x NPT |
| Corrosion Resistant Coating | No |
| Cross Reference | 0009674 |
| Disc Material | Elastomer, Reinforced EPDM |
| Factory Set Pressure | 50 psi |
| For Media | Water |
| Gauge Option | No Gauge |
| Height | 6" |
| Includes Strainer | Strainer Included |
| Inlet Connection Size | 1 1/4" |
| Inlet Size | 1 1/4" |
| Inlet Thread Type | NPT |
| Inlet Type | Union Joint |
| Lead Free | Yes |
| Length | 4 3/4" |
| Low-lead Compliance | Low Lead Compliant |
| Material | Lead Free Brass |
| Max. Operating Temp. | 180°F |
| Max. Operating Temperature | 180°F |
| Max. Pressure | 400 psi |
| Max. Temp. | 160°F |
| Max. Working Pressure | 400 psi |
| Mfr. Series | LFN55B Series |
| Min. Temp. | 33°F |
| Nsf Certifications For Food And Drinking Water | NSF 61G |
| Operating Pressure Range | 300 psi |
| Outlet Connection Size | 1 1/4" |
| Outlet Thread Type | NPT |
| Outlet Type | Female Threaded |
| Overall Height | 10 5/16" |
| Pipe Size | 1 1/4" |
| Port Design | Full Port |
| Preset Pressure Settings | 50 psi |
| Pressure Adjustment Range | 25 psi to 75 psi |
| Pressure Setting Range | 3.4 Bar |
| Seat Material | TPE |
| Strainer | Yes |
| Strainer Material | Stainless Steel |
| Thermal Expansion Bypass | Yes |
| Trim Material | Bronze |
| Type | Standard |
| Valve Style | Standard |
Shipping Info:
| Ship weight (kg) | 3.17 |
| Ship height (cm) | 14.99 |
| Ship length (cm) | 30.99 |
| Ship width (cm) | 24.13 |
| HS code | 8481801095 |
| Country of Origin | US |
Product Variants
| Product | Model | Body Material | Disc Material | Inlet Type | Outlet Type | Inlet Thread Type | Connection Type | Max. Operating Temp. | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2 LF N55BU | Bronze | EPDM | - | - | - | NPT Union x FNPT | - | 6" | €1,142.58 | |
 |
LFN55B-DU-S 1 1/4 IN | Brass | Reinforced EPDM | Union Solder | Union Solder | Not Applicable | - | 180°F | - | €694.50 | RFQ
|
 |
LFN55B 1 1/2 IN | - | - | - | - | - | - | - | - | - | RFQ
|
|
LFN55B 1 1/4 IN | - | - | - | - | - | - | - | - | - | RFQ
|
|
LFN55B 2 IN | - | - | - | - | - | - | - | - | - | RFQ
|
 |
LFN55B-DU 1 1/2 IN | - | - | - | - | - | - | - | - | - | RFQ
|
|
LFN55B-DU 1 1/4 IN | - | - | - | - | - | - | - | - | - | RFQ
|
