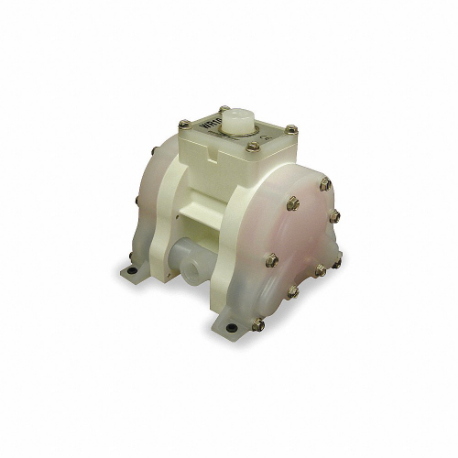

SANDPIPER WR10KP5BKK9. Double Diaphragm Pump, Air, Pvdf, Bolt, 3/8 Inch Fluid Connection Size, Npt, Ptfe, Pvdf
Item: CU9TNLModel: WR10KP5BKK9.Cross Ref: 2ERY9
7 In Stock
Ships within 2 days via
10.00% off
€1,099.45 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Double Diaphragm Pump |
| Air Consumption | 5 SCFM |
| Air Inlet | 1/4" FNPT |
| Center Section Material | Polypropylene |
| Check Seat Material | PVDF |
| Chemical Compatibility | Ammonium Hydroxide, Calcium Carbonate, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Phosphoric Acid 40%, Phosphoric Acid 50%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Sulfuric Acid 80%, Water |
| Connection Size | 3/8" |
| Diaphragm Material | PTFE |
| Display Qty | 1 |
| Flow Rate @ 100 Psi | 6.33 GPM |
| Flow Rate @ 20 Psi | 3.87 GPM |
| Flow Rate @ 40 Psi | 5.69 GPM |
| Flow Rate @ 60 Psi | 6.12 GPM |
| Flow Rate @ 80 Psi | 6.26 GPM |
| Fluid Connection Inlet Type | FNPT |
| Fluid Discharge Connection Size | 3/8" |
| Fluid Discharge Connection Type | NPT |
| Fluid Intake Connection | 3/8" Fnpt |
| For Use With Potable Systems | No |
| Housing Material | PVDF |
| Inlet Size | 1/4" |
| Inlet Type | FNPT |
| Manifold Connection | Single Port |
| Manifold Connection Type | NPT |
| Manufacturers Warranty Length | 1 yr. |
| Max. Discharge Pressure | 100 psi |
| Max. Flow Rate | 6.8 GPM |
| Max. Head | 231 ft. |
| Max. Media Temp. | 220°F |
| Max. Outlet Pressure | 100 psi |
| Max. Solid Dia. | 0.1" |
| Media Discharge Location | Center, Top |
| Media Intake Location | Bottom, Center |
| Outlet Type | NPT |
| Overall Height | 5.7" |
| Overall Length | 4.1" |
| Overall Width | 5.3" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Bolt |
| Rated Air Pressure | 100 psi |
| Self Priming | Yes |
| Valve Material | PVDF |
| Valve Type | Poppet |
Shipping Info:
| Ship weight (kg) | 1.44 |
| Ship height (cm) | 14.48 |
| Ship length (cm) | 10.41 |
| Ship width (cm) | 13.46 |
| Country of Origin | US |
