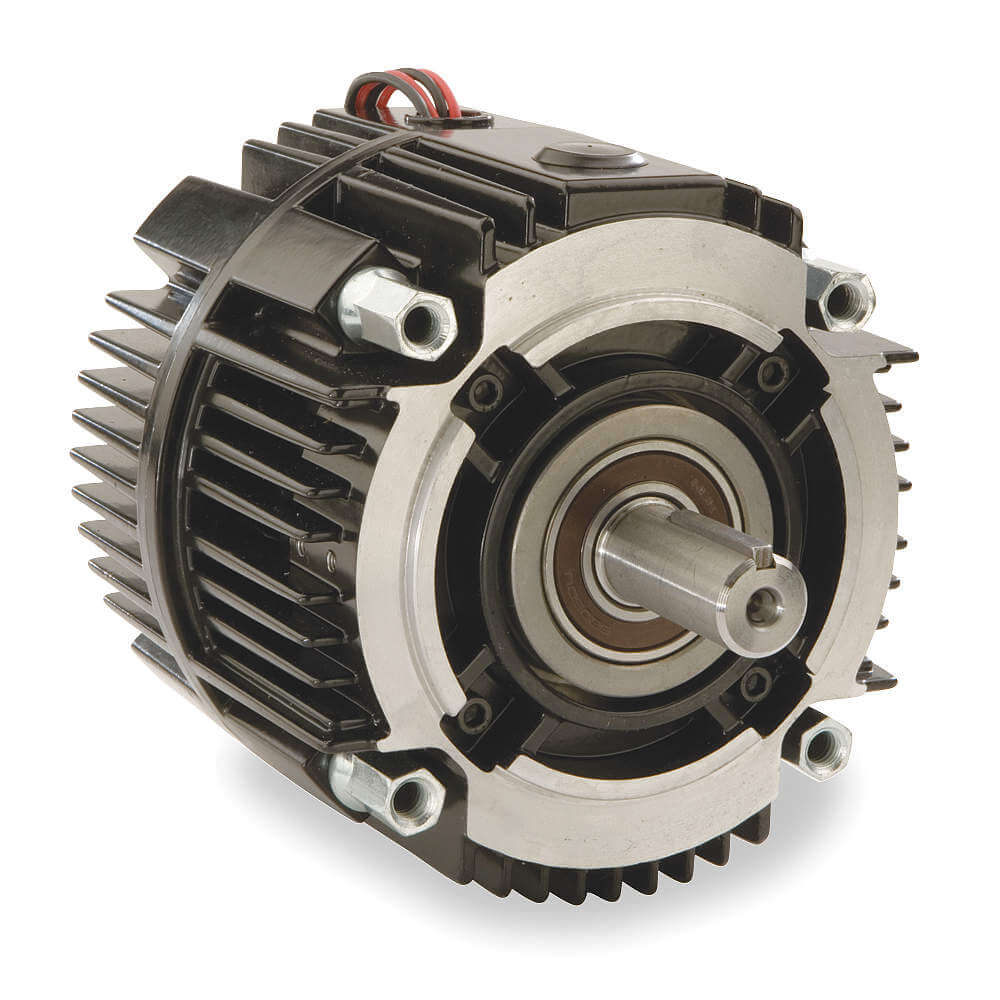

WARNER ELECTRIC 5370-271-214 UM-180-1040 90V C-face Clutch Torque 30 Ft-lb 90 Dc
Get it by Monday, Aug 24
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
€2,972.83 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Clutch |
| Brake Mouting Position | Horizontal |
| Clutch/brake Type | C Face |
| Coil Voltage | V DC |
| Dc Voltage | 90 |
| Enclosure Type | Vented |
| Finish | Black Paint |
| For Use With | NEMA C Face Motor, Reducer |
| Housing Material Finish | Black Paint |
| Included | Mounting Hardware |
| Lead Length | 30" |
| Length | 6 5/8" |
| Max. Speed | 3600 RPM |
| Motor Frame Designation | Nema 182C |
| Mounting Location | NEMA C-Face Motor Or Between Motor And Reducer |
| Mounting Orientation | Horizontal |
| Mounts On | NEMA C Face Motor, Between Motor And Reducer |
| Mounts On | NEMA C-Face Motor or Between Motor and Reducer |
| Nema/iec Frame | 182C/143TC/184C/145TC |
| Overall Length | 6.63" |
| Overall Width | 6 3/4" |
| Power Lead Length | 30" |
| Power Lead Length (in.) | 30 |
| Shaft Dia. | 7/8" |
| Static Torque | 30 lbs.-ft. |
| Static Torque | 30 Ft.-Lb. |
| Type | C Face |
| Voltage (dc) | 90 |
| Width | 6 3/4" |
Shipping Info:
| Ship weight (kg) | 7.94 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 29.21 |
| Ship width (cm) | 22.61 |
| HS code | 8505200000 |
| Country of Origin | US |
Product Variants
| Model | Static Torque | Coil Voltage | Shaft Dia. | Overall Width | Dc Voltage | Nema/iec Frame | Motor Frame Designation | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 5370-273-204 | 16 lbs.-ft. | 90V DC | 5/8" | 6 3/4" | 90 | 56C | NEMA 56C | - | €2,180.30 | |
| 5370-273-018 | 16 lbs.-ft. | 24V DC | 5/8" | 6 3/4" | 24V DC | 56C | NEMA 56C | - | €2,536.82 | |
| 5370-273-209 | 30 lbs.-ft. | 90V DC | 5/8" | 6 3/4" | 90 | 56C | NEMA 56C | - | €2,776.61 | |
| 5370-273-208 | 30 lbs.-ft. | 24V DC | 5/8" | 6 3/4" | 24V DC | 56C | NEMA 56C | - | €3,272.92 | |
| 5370-273-214 | 30 lbs.-ft. | 90V DC | 7/8" | 6 3/4" | 90 | 182C/143TC/184C/145TC | Nema 182C | - | €2,704.09 | |
| 5370-273-213 | 30 lbs.-ft. | 24V DC | 7/8" | 6 3/4" | 24V DC | 182C/143TC/184C/145TC | Nema 182C | - | €3,272.92 | |
| 5370-271-204 | 16 lbs.-ft. | 90V DC | 5/8" | 6 3/4" | 90 | 56C | NEMA 56C | C Face | €2,164.12 |
