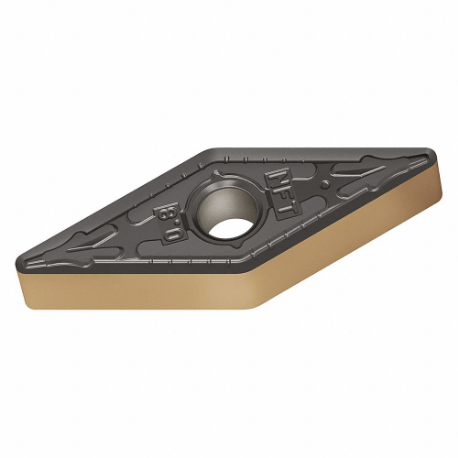

WALTER TOOLS VNMG160408-NFT WSM20S Diamond Turning Insert, Neutral, 3/16 Inch Thick, 1/32 Inch Corner Radius
Item: CU9PFAModel: VNMG160408-NFT WSM20SCross Ref: 449Y36
7 In Stock
Ships within 2 days via
10.00% off
€46.78 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Ansi Code | VNMG332-NFT WSM20S |
| Chip-breaker | Yes |
| Chip-breaker Code | NFT |
| Clearance Angle | 0° |
| Corner Radius | 1/32" |
| Cutting Application | Turning |
| Cutting Depth | 0.3 mm to 2 mm |
| Cutting Direction | Neutral |
| Finish - Machining | Tialn+Al2O3+Al |
| Included Angle | 35° |
| Inscribed Circle | 3/8" |
| Insert Code | VNMG332 |
| Insert Holding Type | Straight Hole |
| Insert Style | VNMG |
| Iso Number | VNMG160408-NFT WSM20S |
| Manufacturer Grade | Wsm20S |
| Material | Carbide |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Number Of Cutting Edges | 4 |
| Primary Material Application | Nickel, Stainless Steel, Titanium |
| Primary Material Application Iso Code | M, S |
| Rake | Negative |
| Shape | Rhombic |
| System Of Measurement | Imperial |
| Thickness | 3/16" |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Model | Insert Code | Corner Radius | Clearance Angle | Cutting Direction | Insert Style | Thickness | Inscribed Circle | Chip-breaker Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CCGT060202-X5 WTP35 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X5 | €40.13 | |
| CCGT060202-X5 WAK15 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X5 | €39.70 | |
| CCGT060202-X15 WTP35 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X15 | €40.13 | |
| CCGT060202-X15 WXM15 | CCGT.5 | 0.008" | - | Neutral | CCGT | - | - | X15 | €39.70 | |
| CCGT060204-X5 WTP35 | CCGT1 | 1/64" | 7° | Neutral | CCGT | - | - | X5 | €40.28 | |
| CCGT060204-X15 WXM15 | CCGT1 | 1/64" | - | Neutral | CCGT | - | - | X15 | €39.23 | |
| CCGT060204-X5 WXM15 | CCGT1 | 1/64" | 7° | Neutral | CCGT | - | - | X5 | €39.70 |
