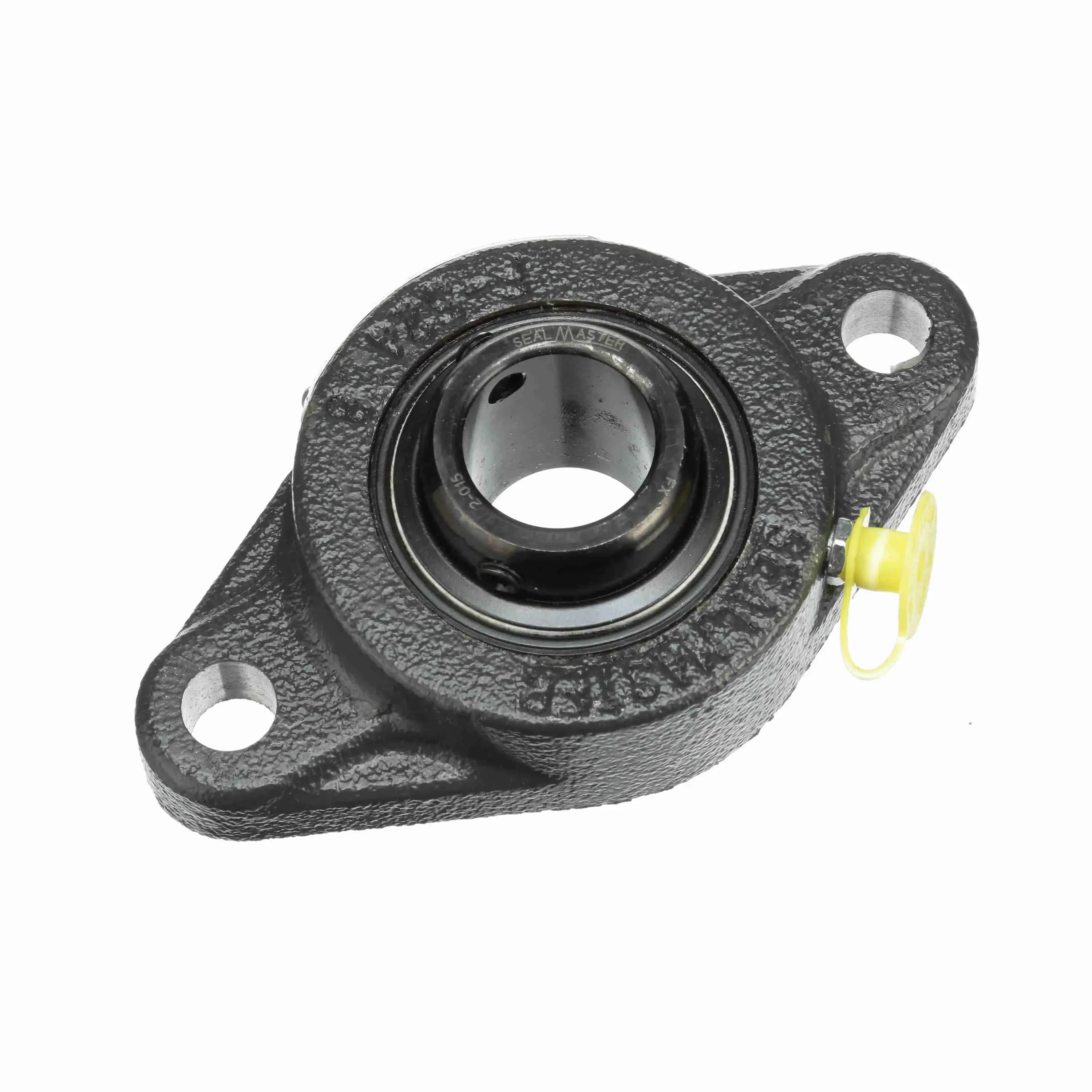

SEALMASTER SFT-15 700542 Flange Bearing, 2 Bolt, 15/16 Inch Bore, Cast Iron, Set Screws, 5-1/8 Inch Length
Item: BD7KXNModel: SFT-15Cross Ref: 44A553 / 700542
7 In Stock
Ships within 2 days via
10.00% off
€339.64 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Ability To Relubricate | Yes |
| Back Side To Center Width | 0.625" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | Grade 52100 |
| Bearing Type | Standard Duty |
| Bolt Size | 7/16" |
| Bore Dia. | 15/16" |
| Bore Diameter | 15/16" |
| Bore Shape | Straight |
| Bore Type | Cylindrical |
| Cage Type | Land Riding Retainer |
| Closure | Double Sealed |
| Duty Series | Standard |
| Dynamic Load Capacity | 2801 lbf. |
| End Cap | No |
| Expansion Type | Fixed |
| Features | Available With High Temperature Bearings, Wide Inner Ring Bearing |
| Finish | Black Oxide |
| Fixed Vs. Expansion | Fixed |
| Flange Thickness | 17/32" |
| Foot Height | 0.53" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/4"-28 |
| Grease Type | Goldplex-HP |
| Height | 3.94" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Htc | 8483.20.4040 |
| Included Bearing | UC205-15 |
| Includes | Set Screw |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 1 3/8" |
| Inner Ring Outside Diameter | 1 3/8" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 2-015 |
| Length | 4" |
| Length Through Bore | 1 3/8" |
| Locking Device | Setscrew |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubricant Material | Nlgi #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 6350 RPM |
| Maximum Speed | 6350 RPM |
| Maximum Temperature | 220°F |
| Minimum Temperature | -20°F |
| Misalignment Type | Static Only |
| Mount Hole Center-to-center Height | 3 57/64" |
| Mount Hole Center-to-center Length | 3 57/64" |
| Mount Hole Size | 15/32" |
| Mounting Bolt Size | 3/8" |
| Number Of Mount Holes | 2 |
| Outer Ring Land Profile | Standard |
| Overall Height | 2 11/16" |
| Overall Width | 1 15/32" |
| Pilot Configuration | No Pilot |
| Product Type | Sealmaster Gold-Standard |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Rolling Element Rows | 1 |
| Seal Flinger | Yes |
| Seal Material | Felt |
| Self Lubricating Bearing | No |
| Setscrew Torque | 85 lbs.-in. |
| Shaft Locking Type | Set Screws |
| Shaft Size | 15/16" |
| Size Code | 2-015 |
| Static Load Rating | 1651 lbs. |
| Static Radial Load Capacity | 1651 lbf. |
| Width | 1 1/2" |
Shipping Info:
| Ship weight (kg) | 0.67 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 10.01 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Housing Material | Number Of Mounting Holes | Price | |
|---|---|---|---|---|---|---|
 |
SFT-16 LT | - | Cast Iron | - | €177.69 | |
 |
SFT-14T | 7/8" | Cast Iron | - | €167.27 | |
 |
SFT-208C | - | - | - | €296.80 | |
 |
SFT-210C | - | - | - | €394.97 | |
 |
SFT-12C | 3/4" | Cast Iron | - | €112.50 | |
 |
SFT-208TMC CTY | - | - | - | €237.90 | |
|
SFT-25 BEV DRY | - | - | - | €268.53 |
