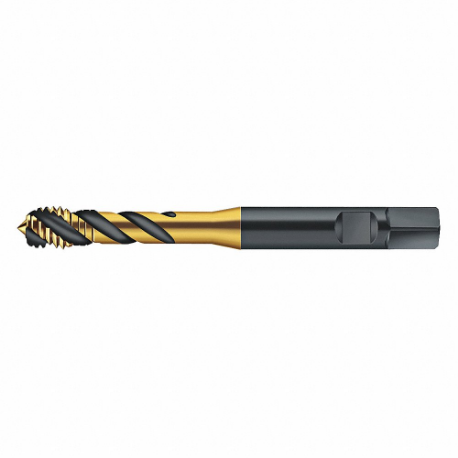

WALTER TOOLS S2156305-M10X1 5101758 Spiral Flute Tap, M10X1 Thread Size, 10.50 mm Thread Length, 90 mm Length
Item: CU9EBTModel: S2156305-M10X1Cross Ref: 429F02 / 5101758
7 In Stock
Ships within 2 days via
10.00% off
€167.86 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 9.25 mm |
| 65% Thread Drill Size | 23/64" |
| 75% Thread Drill Size | 9 mm |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 9 mm |
| Extended Neck | Yes |
| Features | For Long-Chipping Materials, Only For Synchronous Machining (Rigid Tapping) |
| Finish | Titanium Nitride Coated, Vaporized |
| Helix Angle | 40° |
| Material Grade - Machining | Grade TIN, VAP |
| Number Of Flutes | 3 |
| Overall Length | 90 mm |
| Primary Material Application | Cast Iron, Stainless Steel, Steel |
| Primary Material Application Iso Code | K, M, P |
| Secondary Material Application | Aluminum, Brass, Bronze, Composite, Copper, Nickel, Titanium |
| Secondary Material Application Iso Code | N, O, S |
| Shank Dia. | 10 mm |
| Shank Length | 51 mm |
| Shank Type | Weldon Flat |
| Shank Type - Machining | Weldon Flat |
| Spiral Direction | Right Hand |
| Square Size | 8 mm |
| Standards | DIN 371 |
| System Of Measurement | Metric |
| Tap Chamfer | Modified Bottoming, Semi Bottoming |
| Tap Finish | Tin/Vap |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN 371 |
| Tap Style | Spiral Flute |
| Tap Thread Size | M10 x 1 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Limit | 6HX |
| Thread Limit/class Of Fit | 6HX |
| Thread Pitch | 1 mm |
| Thread Size | M10 x 1 |
| Thread Standard | Metric Fine |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 9 |
| Ship width (cm) | 2.54 |
| Country of Origin | IN |
Product Variants
| Product | Model | Thread Size | Thread Direction | Thread Limit | Number Of Flutes | Overall Length | Thread Length | 75% Thread Drill Size | Tap Finish | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
23400-UNF0 | #0-80 | Right Hand | H1 | 3 | 40 mm | 6 mm | 1.2 mm | Bright | €141.41 | |
|
23410-UNF0 | #0-80 | Right Hand | H1, H2 | 3 | 40 mm | 6 mm | 1.2 mm | Bright | €131.93 | |
 |
AS2251005-UNC10 | #10-24 | Right Hand | H3, H4 | 3 | 70 mm | 11 mm | #25 | Tin/Vap | €91.44 | |
 |
EP2251302-UNC10 | #10-24 | Right Hand | H3, H4 | 3 | 70 mm | 8 mm | #25 | THL | €107.87 | |
 |
22410-UNC10 | #10-24 | Right Hand | H3, H4 | 3 | 70 mm | 8 mm | #25 | Bright | €78.08 | |
 |
AEP2251302-UNC10 | #10-24 | Right Hand | H3, H4 | 3 | 70 mm | 8 mm | #25 | THL | €107.42 | |
 |
TC115-UNC10-C0-WY80AA | #10-24 | Right Hand | H3, H4 | 3 | 70 mm | 8 mm | #25 | Tin | €40.56 |
