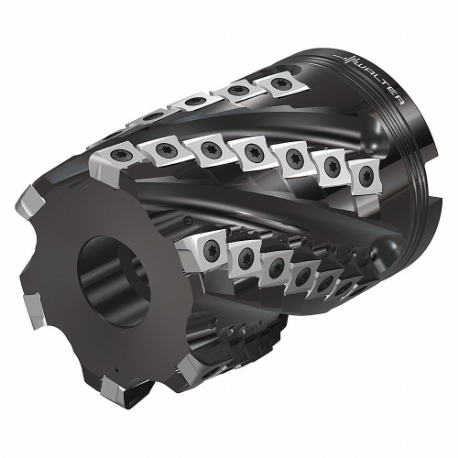

WALTER TOOLS M3255.076-B31-06-80 Indexable Face Mill, 3 Inch Max. Cutting Dia, 1-1/4 Inch Arbor Dia
Item: CU8JLRModel: M3255.076-B31-06-80Cross Ref: 56MU56
7 In Stock
Ships within 2 days via
5.00% off
€3,632.17 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Indexable Face Mill |
| Ansi Code | M3255.076-B31-06-80 |
| Arbor Dia. | 1 1/4" |
| Connection Dia. | 1 1/4" |
| Coolant Fed | Non Coolant Through |
| Cutting Depth | 3 3/20" |
| Cutting Edge Dia. | 3" |
| Cutting Edge Length | 3.15" |
| Depth Of Cut | 3.15" |
| Features | 2 Or 4 Cutting Edges Per Indexable Insert, Full Effective Design, Tangential Arrangement |
| Hub Outside Dia. | 2.85" |
| Iso Number | M3255.076-B31-06-80 |
| Max. Cutting Dia. | 3" |
| Max. Projection Length | 4 1/4" |
| Max. Speed | 16300 RPM |
| No. Of Indexable Inserts Face | 6 |
| No. Of Indexable Inserts Peripheral | 36 |
| No. Of Teeth | 6 |
| Overall Length | 4 1/4" |
Shipping Info:
| Ship weight (kg) | 2.32 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.8 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Cutting Depth | Coolant Fed | Ansi Code | Arbor Dia. | Iso Number | Connection Dia. | Cutting Edge Length | No. Of Teeth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
F5141.B40.160.Z13.12 | - | Coolant Through | F5141.B40.160.Z13.12 | 40 mm | F5141.B40.160.Z13.12 | 1.575" | 0.472" | 13 | €2,883.68 | |
 |
F5141.UB38.152.Z13.12 | - | Coolant Through | F5141.UB38.152.Z13.12 | 1 1/2" | F5141.UB38.152.Z13.12 | 1 1/2" | 0.472" | 13 | €2,883.68 | |
 |
M5130-050-B22-06-15 | 0.591" | Coolant Through | - | 0.866" | M5130-050-B22-06-15 | 0.866" | 0.591" | 6 | €1,086.96 | |
 |
M5130-063-B22-11-05 | 0.197" | Coolant Through | - | 0.866" | M5130-063-B22-11-05 | 0.866" | 0.197" | 11 | €1,473.28 | |
 |
M2136-063-B22-08-06 | 0.256" | Non Coolant Through | M2136-063-B22-08-06 | 0.866" | M2136-063-B22-08-06 | 0.866" | 0.256" | 8 | €1,999.07 | |
|
M5130-054-B22-03-15 | 0.591" | Coolant Through | M5130-054-B22-03-15 | 0.866" | M5130-054-B22-03-15 | 0.866" | 0.591" | 3 | €944.60 | |
|
M5130-063-B22-14-05 | 0.197" | Coolant Through | M5130-063-B22-14-05 | 0.866" | M5130-063-B22-14-05 | 0.866" | 0.197" | 14 | €1,555.99 |
