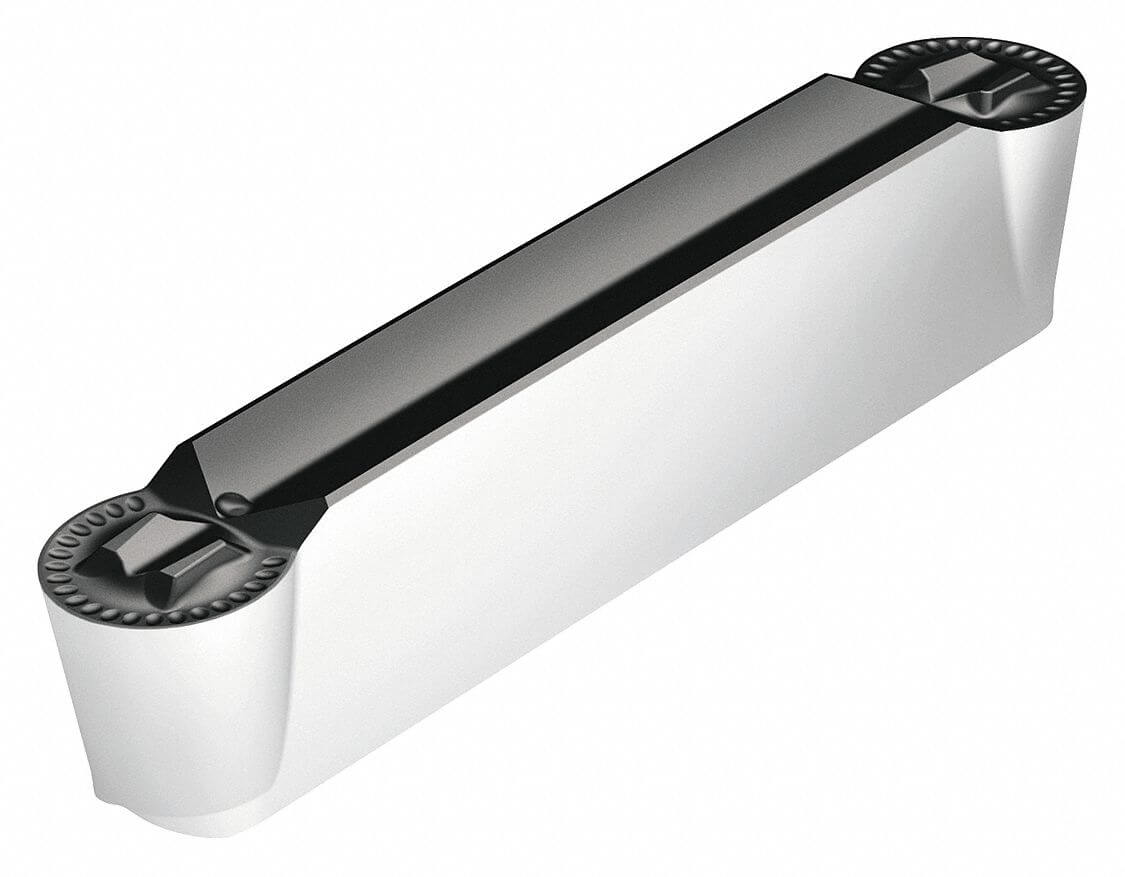

WALTER TOOLS GX24-4E635N32-RD4 Indexable Grooving Insert GX244E635N32RD4
Get it by Monday, Dec 22
This product can only be shipped in multiples of 10
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Indexable Grooving Insert |
| Ansi Code | GX24-4E635N32-RD4 WKP23S |
| Chip-breaker | Yes |
| Chip-breaker Code | RD4 |
| Clearance Angle | 6° |
| Coating | Tiger TEC CVD |
| Coating Process | CVD |
| Corner Radius | 3.18 mm |
| Cutting Application | Axial Grooving, Facing, Longitudinal Turning, Radial Grooving |
| Cutting Direction | Neutral |
| Cutting Location | External |
| Depth Of Cut | 22 mm |
| Grade | Grade WKP23S |
| Hole Type | No Hole |
| Insert Size | 24 |
| Iso Number | GX24-4E635N32-RD4 |
| Iso Number | GX24-4E635N32-RD4 WKP23S |
| Lead Angle | 0° |
| Manufacturer Grade | Grade WKP23S |
| Material - Machining | Carbide |
| Max. Grooving Width | 6.35 mm |
| Measurement System | Metric |
| Mounting Style | Clamp |
| No. Of Edges | 2 |
| Number Of Cutting Edges | 2 |
| Number Of Cutting Sides | 2 |
| Overall Length | 24 mm |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Rake | 7° |
| Reference Length | 24 mm |
| Seat Size | E |
| Width | 6.35 mm |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Details:
- Workpiece Compatibility : Cast Iron (K), Steel (P)
- Steel (P) Compatibility : Yes
- Stainless (M) Compatibility : No
- Cast Iron (K) Compatibility : Yes
- Non Ferrous (N) Compatibility : No
- Super Alloy (S) Compatibility : No
- Hardened (H) Compatibility : No
Product Variants
| Model | Corner Radius | Grade | Cutting Direction | Chip-breaker Code | Clearance Angle | Coating Process | Insert Size | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GX16-1E200N02-UD4 | 0.2 mm | Grade WKP23S | Neutral | UD4 | - | CVD | 16 | 16 mm | €44.34 | |
| GX16-1E200N02-UD4 | 0.2 mm | WSM33S | Neutral | UD4 | - | PVD | 16 | 16 mm | €45.65 | |
| GX16-2E300N03-UD4 | 0.3 mm | Grade WKP23S | Neutral | UD4 | - | CVD | 16 | 16 mm | €45.65 | |
| GX16-2E300N03-UD4 | 0.012" | WSM33S | Neutral | - | - | - | - | - | €45.65 | |
| GX16-3E400N04-UD4 | 0.4 mm | Grade WKP23S | Neutral | UD4 | - | CVD | 16 | 16 mm | €48.77 | |
| GX16-3E400N04-UD4 | 0.4 mm | WSM33S | Neutral | UD4 | - | PVD | 16 | 16 mm | €48.10 | |
| GX16-3E500N04-UD4 | 0.4 mm | WSM33S | Neutral | UD4 | - | PVD | 16 | 16 mm | €52.47 |
