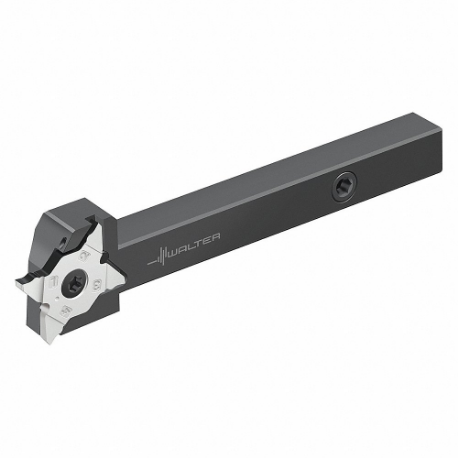

WALTER TOOLS G3011.10R-MX22-2-P Indexable Parting and Grooving Tool Holder, Novex-Cut, MX Insert, Coolant Through | CU8GRR 56NH47

WALTER TOOLS G3011.10R-MX22-2-P 7797749 Indexable Parting and Grooving Tool Holder, Novex-Cut, MX Insert, Coolant Through

Item: CU8GRRModel: G3011.10R-MX22-2-PCross Ref: 56NH47 / 7797749
7 In Stock
Overall Length
Functional Width

Ships within 2 days via

€411.83
5.00% off
€391.24 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Grooving Tool Holder
Ansi Code G3011.10R-Mx22-2-P
Ansi Number G3011.10R-MX22-2-P
Coolant Entry Thread Size G1/8
Coolant Fed Coolant Through
Coolant Pressure 2175.566 psi
Cutting Direction Right Hand
Features Four Precision-Ground Cutting Edges, Three Contact Points In The Tool Tangentially Mounted And Screw Fastened, Toolholder Protected By The Insert Core (Insert Seat Is Not Damaged If A Cutting Edge Breaks), Very Strong Tangential Insert Clamping For Optima
Functional Width 0.559"
Hand R
Indexable Insert Width 0.02" to 0.128"
Insert Style MX
Iso Number G3011.10R-MX22-2-P
Length 4.724"
Max. Cutting Depth 0.236"
Max. Overhang 1.024"
Overall Length 4.7244"
Product Family NOVEX-CUT
Shank Height 5/8"
Shank Width 5/8"
Toolholder Style G3011

Shipping Info:

Ship weight (kg) 0.19
Ship height (cm)2.54
Ship length (cm)12
Ship width (cm)2.54
Country of OriginDE

Product Variants

ProductModelShank Dia.Cutting DirectionToolholder StyleIso NumberAnsi NumberInsert Holding TypeAnsi CodeInsert StylePrice
WALTER TOOLS G4014-1212L-2T12DX18-P Indexable Parting and Grooving Tool Holder, Radial Grooving, 4.3307 Inch Overall Length | CU8FTE 56NP37 G4014-1212L-2T12DX18-P-Left HandG4014G4014-1212L-2T12DX18-PG4014-1212L-2T12DX18-PSide Clamping ScrewG4014-1212L-2T12Dx18-PDX€431.28
WALTER TOOLS G4014-1616L-2.5T17DX18-P Indexable Parting and Grooving Tool Holder, Radial Grooving, 4.7244 Inch Overall Length | CU8FTF 56NP38 G4014-1616L-2.5T17DX18-P-Left HandG4014-G4014-1616L-2.5T17DX18-PSide Clamping Screw-DX€452.42
WALTER TOOLS G4014-1212L-2T12DX18 Indexable Parting and Grooving Tool Holder, DX Insert, Left Hand, Radial Grooving | CU8FTG 56NP34 G4014-1212L-2T12DX18-Left HandG4014G4014-1212L-2T12DX18G4014-1212L-2T12DX18Side Clamping ScrewG4014-1212L-2T12DX18DX€284.19
WALTER TOOLS G4014-1616L-3T17DX18-P Indexable Parting and Grooving Tool Holder, Radial Grooving, 4.7244 Inch Overall Length | CU8FTH 56NP39 G4014-1616L-3T17DX18-P-Left HandG4014G4014-1616L-3T17DX18-PG4014-1616L-3T17DX18-PSide Clamping ScrewG4014-1616L-3T17DX18-PDX€452.42
WALTER TOOLS G4014-1616L-2T12DX18 Indexable Parting and Grooving Tool Holder, Radial Grooving, 4.7244 Inch Overall Length | CU8FTJ 56NP35 G4014-1616L-2T12DX18-Left HandG4014G4014-1616L-2T12DX18G4014-1616L-2T12DX18Side Clamping ScrewG4014-1616L-2T12DX18DX€298.43
WALTER TOOLS G4014-1616R-3T17DX18-P Indexable Parting and Grooving Tool Holder, Radial Grooving, 4.7244 Inch Overall Length | CU8FTK 56NP41 G4014-1616R-3T17DX18-P-Right HandG4014G4014-1616R-3T17DX18-PG4014-1616R-3T17DX18-PSide Clamping ScrewG4014-1616R-3T17DX18-PDX€452.42
WALTER TOOLS G4014-1616R-3T17DX18 Indexable Parting and Grooving Tool Holder, DX Insert, Right Hand, Radial Grooving | CU8FTL 56NP36 G4014-1616R-3T17DX18-Right HandG4014G4014-1616R-3T17DX18G4014-1616R-3T17DX18Side Clamping ScrewG4014-1616R-3T17DX18DX€298.43
