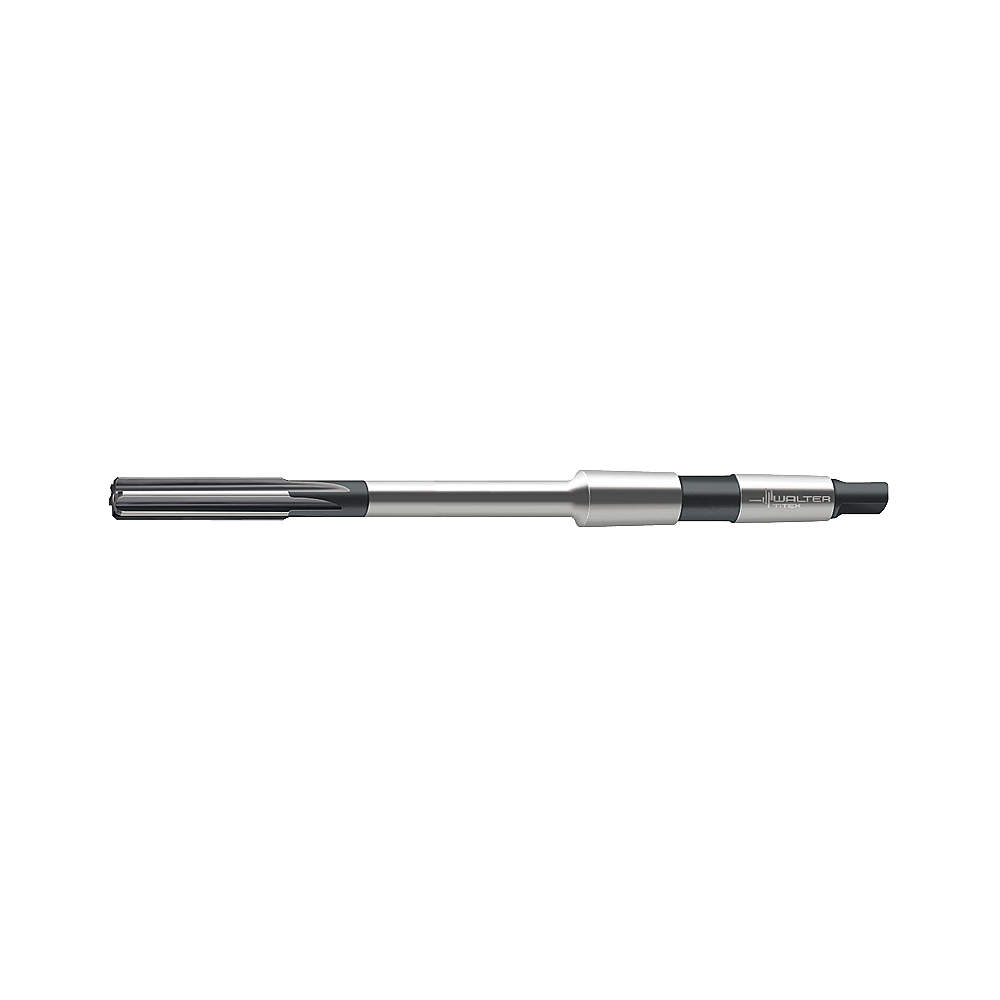

WALTER TOOLS F4162-8 Chucking Reamer 8mm 6 Flute Carbide
Get it by Friday, Aug 14
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Chucking Reamer |
| Application Method | Through Hole |
| Chamfer Angle | 45° |
| Coolant Fed | Non Coolant Through |
| Cutting Dia. | 0.315" |
| Cutting Direction | Right Hand |
| Cutting Edge Length | 1.299" |
| Decimal Equivalent | 0.315" |
| Dimensions Type | Metric |
| Finish | Bright |
| Flute Length | 33 mm |
| Flute Type | Straight |
| Length | 6.142" |
| Material | Carbide |
| Material Applications | Cast Iron, Heat-Resistant Alloys, Stainless Steel, Titanium |
| Measurement System | Metric |
| No. Of Flutes | 6 |
| No. Of Teeth | 6 |
| Overall Length | 156 mm |
| Primary Material Application | All Materials |
| Primary Material Application Iso Code | K, M, N, S1 |
| Reamer Application | Through Hole |
| Reamer Size | 8 mm |
| Reamer Size-decimal Equivalent | 0.315 |
| Secondary Material Application | All Materials |
| Secondary Material Application Iso Code | H |
| Shank Dia. | MT1 |
| Shank Type | Taper |
| Spiral Direction | Neutral |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 15.6 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Details:
- Flute Type : Straight
Product Variants
| Model | Material | Flute Length | Shank Dia. | Reamer Size | Reamer Size-decimal Equivalent | No. Of Flutes | Decimal Equivalent | Cutting Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| F4162-5 | Carbide | 23 mm | MT1 | 5 mm | 0.1969 | 6 | 0.197" | 0.197" | - | RFQ
|
| F4162-6 | Carbide | 26 mm | MT1 | 6 mm | 0.2362 | 6 | 0.236" | - | €349.66 | |
| F4162-7 | Carbide | 31 mm | MT1 | 7 mm | 0.2756 | 6 | 0.276" | - | €408.21 | |
| F4162-9 | Carbide | 36 mm | MT1 | 9 mm | 0.3543 | 6 | 0.354" | - | €490.98 | |
| F4162-10 | Carbide | 38 mm | MT1 | 10 mm | 0.3937 | 6 | 0.394" | 0.394" | €456.09 | |
| F4162-11 | Carbide | 41 mm | MT1 | 11 mm | 0.4331 | 6 | 0.433" | - | €510.97 | |
| F4162-12 | Carbide | 44 mm | MT1 | 12 mm | 0.4724 | 6 | 0.472" | - | €553.34 |
