BOSTON GEAR LSA122Y L Teeth Left Hand Unhardened Steel Spiral Tooth Bevel Gear
Get it by Thursday, Aug 27
€987.17 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Bore Size | 1 3/8" , 1.375" |
| Diametral Pitch | 5 |
| Finish | Unardened |
| Hardened Teeth | Without Hardened Teeth |
| Hub Dia. | 3 1/2" |
| Keyway | Without Keyway, Without Setscrew |
| Kwy/setscrew/other | With KWY, Setscrew |
| Length Through Bore | 3.005" |
| Material | Steel |
| Mounting Distance | 4 5/8" |
| No. Of Teeth | 25 |
| Outside Dia. | 5.26" |
| Pitch Dia. | 5" |
| Pressure Angle | 20° |
| Ratio | 1:1 |
| Spiral Angle | 20° |
| Spiral Direction | Left Hand |
| Spiral Tooth | Pressure Angle |
| Straight/spiral Tooth | Spiral Tooth |
| Torque @ 1200 Rpm | 630 lbs.-in. |
| Torque @ 1800 Rpm | 595 Lbs.-In. , 595 Lbs./In. |
| Torque @ 200 Rpm | 945 lbs.-in. |
| Torque @ 300 Rpm | 903 lbs.-in. |
| Torque @ 600 Rpm | 787 lbs.-in. |
| Torque @ 900 Rpm | 700 Lbs.-In. , 700 Lbs./In. |
Shipping Info:
| Ship weight (kg) | 3.87 |
| Country of Origin | US |
Product Variants
| Product | Model | Pitch Dia. | No. Of Teeth | Hub Dia. | Diametral Pitch | Length Through Bore | Mounting Distance | Bore Size | Torque @ 200 Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

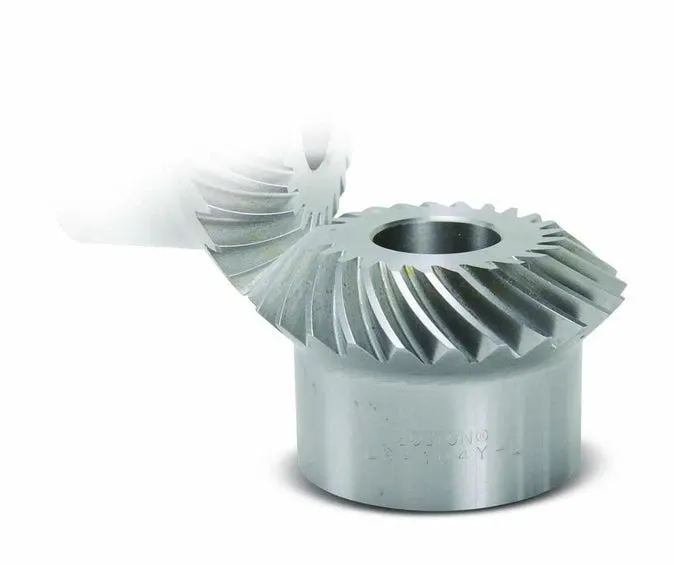

LSA106Y L | 3 1/2" , 3.5" | 28 | 2 1/2" | 8 | 2.099" | 3 1/4" | 1 3/16" , 1.1875" | 409 lbs.-in. | €419.27 | |
 |
LSA106Y R | 3 1/2" , 3.5" | 28 | 2 1/2" | 8 | 2.099" | 3 1/4" | 1 3/16" , 1.1875" | 409 lbs.-in. | €401.37 | |
 |
LSA110Y L | 1" | 18 | 3/4" | 18 | 0.739" | 1.062" | 0.375" , 3/8" | 12.6 lbs.-in. | €95.20 | |
 |
LSA122Y R | 5" | 25 | 3 1/2" | 5 | 3.005" | 4 5/8" | 1 3/8" , 1.375" | 945 lbs.-in. | €987.17 |
