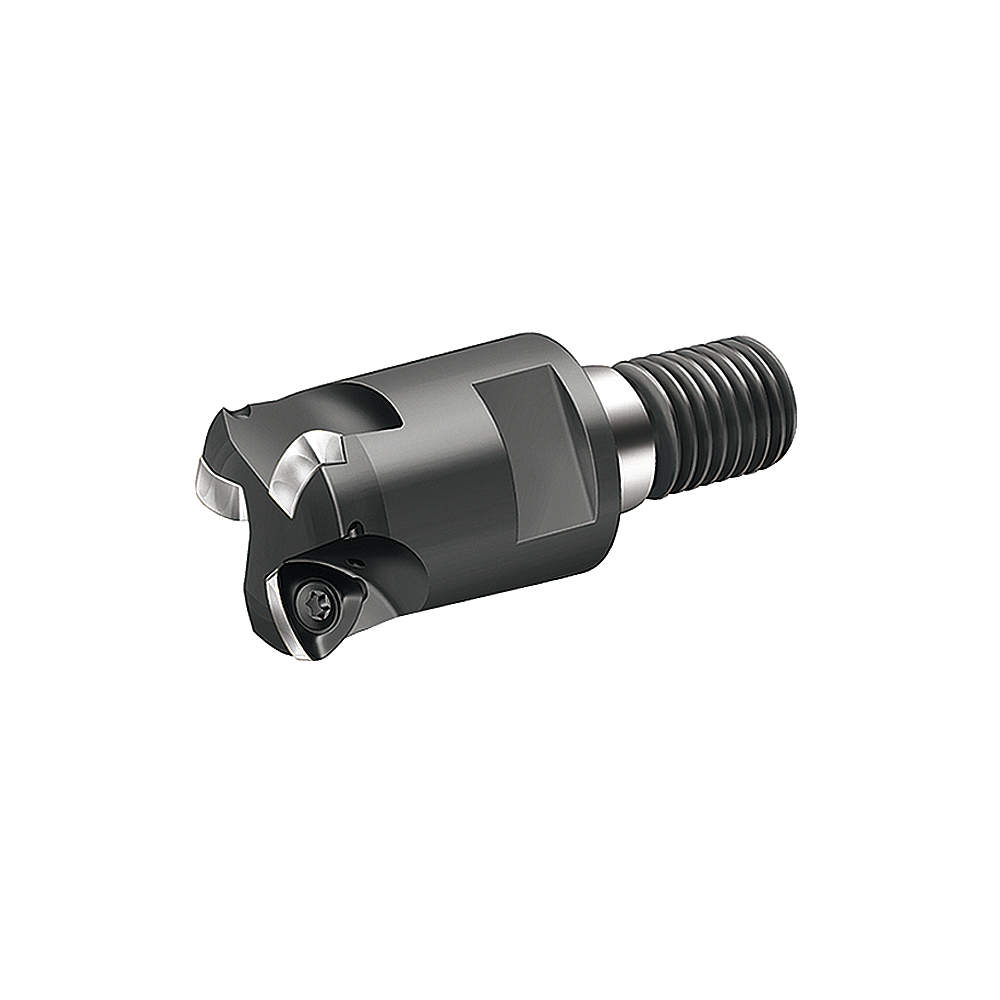

WALTER TOOLS F2330.UW15.019.Z02.01 5108498 Indexable Mill Cutter F2330uw15019z0201
Item: AD6CYUModel: F2330.UW15.019.Z02.01Cross Ref: 44W209 / 5108498
7 In Stock
Ships within 2 days via
5.00% off
€655.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Indexable Milling Cutter |
| Ansi Code | F2330.Uw15.019.Z02.01 |
| Compatible Hardware | Fs923 T8 Clamping Screw |
| Connection Dia. | 5/8" |
| Coolant Fed | Coolant Through |
| Cutting Application | Circular Interpolation Milling, Face Milling (Roughing), Plunge Milling, Pocket Milling, Ramping |
| Cutting Direction | Right |
| Cutting Edge Dia. | 0.356" |
| Cutting Edge Length | 0.039" |
| Cutting Edge Type | Carbide |
| Cutting Length | 0.039" |
| Dia. | 0.606" |
| Features | 3 Cutting Edges Per Indexable Insert, Fz Up To 3.5Mm |
| Functional Length | 1 21/25" |
| Insert Cutting Edge Length | 1 mm |
| Iso Number | F2330.UW15.019.Z02.01 |
| Length | 3 3/4" |
| Max. Cutting Dia. | 3/4" |
| Max. Radial Depth Of Cut | 0.311" |
| Min. Cutting Dia. | 9.04 mm |
| No. Of Coolant Holes | 2 |
| No. Of Indexable Inserts | 2 EA |
| No. Of Inserts | 2 |
| No. Of Inserts Required | 3 |
| No. Of Teeth | 2 |
| Nomenclature | F2330.UW15.019.Z02.01 |
| Overall Length | 3 3/4" |
| Shank Dia. | 3/4" |
| Side Cutting Edge Angle | 0° |
Shipping Info:
| Ship weight (kg) | 0.3 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 9.53 |
| Ship width (cm) | 2.54 |
| HS code | 8466100130 |
| Country of Origin | CN |
Product Variants
| Model | Cutting Length | Insert Cutting Edge Length | Dia. | No. Of Inserts Required | Nomenclature | Max. Cutting Dia. | No. Of Inserts | Iso Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| F2330.T36.042.Z03.01 5 | 0.059" | - | 1.102" | 3 | F2330.T36.042.Z03.01, 5 | - | - | - | €760.84 | |
| F2330.T36.040.Z03.01 5 | 0.059" | 1.5 mm | 1.024" | 3 | F2330.T36.040.Z03.01, 5 | 40 mm | 3 | F2330.T36.040.Z03.01,5 | €760.84 | |
| F2330.T18.020.Z02.01 | 0.039" | 1 mm | 0.394" | 2 | F2330.T18.020.Z02.01 | 20 mm | 2 | F2330.T18.020.Z02.01 | €659.17 | |
| F2330.T22.025.Z03.01 | 0.039" | 1 mm | 0.591" | 3 | F2330.T22.025.Z03.01 | 25 mm | 3 | F2330.T22.025.Z03.01 | €685.28 | |
| F2330.T28.032.Z03.01 5 | 0.059" | 1.5 mm | 0.709" | 3 | F2330.T28.032.Z03.01, 5 | 32 mm | 3 | F2330.T28.032.Z03.01,5 | €723.29 | |
| F2330.T28.035.Z03.01 5 | 0.059" | 1.5 mm | 0.827" | 3 | F2330.T28.035.Z03.01, 5 | 35 mm | 3 | F2330.T28.035.Z03.01,5 | €723.29 | |
| F2330.UT18.019.Z02.01 | 0.039" | 1 mm | 0.356" | 2 | F2330.UT18.019.Z02.01 | 3/4" | 2 | F2330.UT18.019.Z02.01 | €659.17 |
