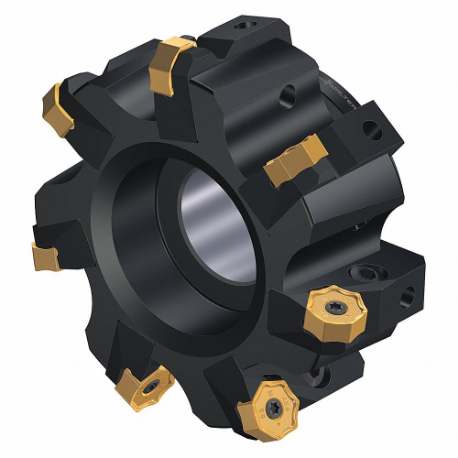

WALTER TOOLS F2010.B.100.Z07.04.R759M 7469942 Indexable Face Mill, 4.3310 Inch Max. Cutting Dia, 1.2600 Inch Arbor Dia
Item: CU8JQFModel: F2010.B.100.Z07.04.R759MCross Ref: 56MZ02 / 7469942
7 In Stock
Ships within 2 days via
10.00% off
€2,037.75 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Indexable Face Mill |
| Ansi Code | F2010.B.100.Z07.04.R759M |
| Arbor Dia. | 1.26" |
| Coolant Fed | Non Coolant Through |
| Cutting Application | Face Milling |
| Cutting Depth | 0.157" |
| Iso Number | F2010.B.100.Z07.04.R759M |
| Max. Cutting Dia. | 4.331" |
| Max. Speed | 6000 RPM |
| Min. Cutting Dia. | 3.937" |
| Number Of Inserts | 7 |
| Overall Length | 1.969" |
| Side Cutting Edge Angle | 0° |
| Standards | Iso 6462-B (Cutter Retaining Screw) |
Shipping Info:
| Ship weight (kg) | 1.79 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5 |
| Ship width (cm) | 2.54 |
| Country of Origin | NL |
Product Variants
| Product | Model | Coolant Fed | Overall Length | Arbor Dia. | Side Cutting Edge Angle | Max. Cutting Dia. | Insert Shape | Depth Of Cut | Cutting Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
F5141.B40.160.Z13.12 | Coolant Through | 63 mm | 40 mm | 90° | 160 mm | - | 0.472" | - | €2,691.44 | |
 |
F5141.UB38.152.Z13.12 | Coolant Through | 2.48" | 1 1/2" | 90° | 6" | - | 0.472" | - | €2,691.44 | |
 |
M5130-050-B22-06-15 | Coolant Through | 1.575" | 0.866" | 90° | - | - | - | 0.591" | €1,014.50 | |
 |
M5130-063-B22-11-05 | Coolant Through | 1.575" | 0.866" | 90° | - | - | - | 0.197" | €1,375.06 | |
 |
M2136-063-B22-08-06 | Non Coolant Through | 1.969" | 0.866" | 90° | - | - | - | 0.256" | €1,865.79 | |
|
M5130-054-B22-03-15 | Coolant Through | 1.575" | 0.866" | 90° | - | - | - | 0.591" | €881.62 | |
|
M5130-063-B22-14-05 | Coolant Through | 1.575" | 0.866" | 90° | - | - | - | 0.197" | €1,452.26 |
