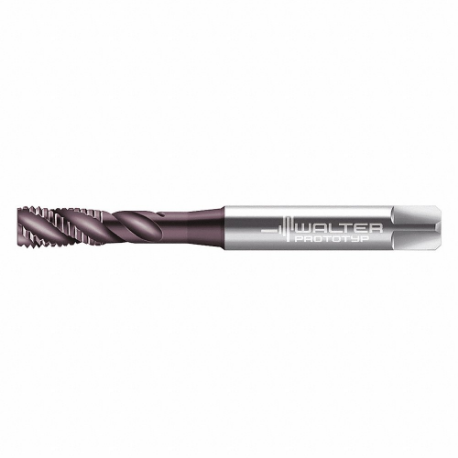

WALTER TOOLS EP2251312-UNC1/4 6245678 Spiral Flute Tap, 1/4-20 Thread Size, 10 mm Thread Length, 80 mm Length, Thl
Item: CU9DGDModel: EP2251312-UNC1/4Cross Ref: 428H34 / 6245678
7 In Stock
Ships within 2 days via
€132.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | #3 |
| 65% Thread Drill Size | #5 |
| 75% Thread Drill Size | #7 |
| Clamping Width | 5.5 mm |
| Class Of Fit | Class 2B |
| Connection Dia. | 7 mm |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 0.201" |
| Driving Square Length | 8 mm |
| Extended Neck | Yes |
| Finish | Titanium Halogen Nitride Coated |
| Functional Length | 80 mm |
| Helix Angle | 45° |
| Measurement System | Fractional Inch |
| No. Of Flutes | 3 |
| No. Of Grooves | 3 |
| Overall Length | 80 mm |
| Powdered Metal Base Material | Cobalt |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel |
| Primary Material Application Iso Code | K, M, N, P |
| Shank Dia. | 7 mm |
| Shank Length | 52.7 mm |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Spiral Direction | Right Hand |
| Square Size | 5.5 mm |
| System Of Measurement | Imperial |
| Tap Chamfer | Modified Bottoming, Semi Bottoming |
| Tap Finish | THL |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN 2184-1 |
| Tap Style | Spiral Flute |
| Tap Thread Size | 1/4"-20 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 10 mm |
| Thread Limit | H4, H5 |
| Thread Limit/class Of Fit | H4, 2B, H5, 2B |
| Thread Size | 1/4"-20 |
| Thread Standard | Coarse |
| Thread Type | UNC |
| Threads Per Inch | 20 |
| Usable Length | 27.3 mm |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Thread Size | Thread Direction | Thread Limit | Thread Length | Overall Length | 75% Thread Drill Size | Tap Finish | Tap Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
23400-UNF0 | #0-80 | Right Hand | H1 | 6 mm | 40 mm | 1.2 mm | Bright | High Speed Steel | €109.99 | |
|
23410-UNF0 | #0-80 | Right Hand | H1, H2 | 6 mm | 40 mm | 1.2 mm | Bright | High Speed Steel | €106.75 | |
 |
AS2251005-UNC10 | #10-24 | Right Hand | H3, H4 | 11 mm | 70 mm | #25 | TiN, Vap | High Speed Steel | €70.70 | |
 |
EP2251302-UNC10 | #10-24 | Right Hand | H3, H4 | 8 mm | 70 mm | #25 | THL | High Speed Steel | €87.87 | |
 |
22410-UNC10 | #10-24 | Right Hand | H3, H4 | 8 mm | 70 mm | #25 | Bright | High Speed Steel | €68.67 | |
 |
AEP2251302-UNC10 | #10-24 | Right Hand | H3, H4 | 8 mm | 70 mm | #25 | THL | High Speed Steel | €87.87 | |
 |
TC115-UNC10-C0-WY80AA | #10-24 | Right Hand | H3, H4 | 8 mm | 70 mm | #25 | TiN | High Speed Steel | €32.73 |
