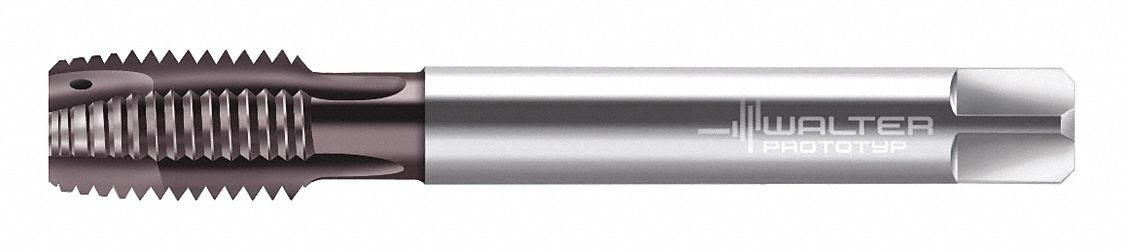

WALTER TOOLS EP2126342-M8X1 6584029 Tap 18mm Thread Length Fine
Item: AG6EELModel: EP2126342-M8X1Cross Ref: 35RM26 / 6584029
7 In Stock
Ships within 2 days via
€208.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tap |
| 55% Thread Drill Size | 7.25 mm |
| 65% Thread Drill Size | 9/32" |
| 75% Thread Drill Size | 7 mm |
| Clamping Width | 0.193" |
| Class Of Fit | Class 6H |
| Connection Dia. | 0.236" |
| Coolant Fed | Coolant Through |
| Drill Bit Size | 7 mm |
| Driving Square Length | 0.315" |
| Extended Neck | Yes |
| Finish | THL |
| Functional Length | 3.543" |
| Material | High Speed Steel |
| Measurement System | Metric |
| No. Of Flutes | 3 |
| No. Of Grooves | 3 |
| Overall Length | 90 mm |
| Pitch Type | 1 mm |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel |
| Primary Material Application Iso Code | K, M, N, P |
| Shank Dia. | 6 mm |
| Shank Length | 23 mm |
| Shank Type-machining | Straight |
| Size | M8 |
| Spiral Direction | Neutral |
| Square Size | 4.9 mm |
| Tap Chamfer | Plug |
| Tap Finish | THL |
| Tap Material | High Speed Steel |
| Tap Thread Size | M8 x 1 |
| Tap Type | Taper |
| Thread Direction | Right Hand |
| Thread Length | 18 mm |
| Thread Limit | 6HX |
| Thread Limit/class Of Fit | 6HX, 6H |
| Thread Pitch | 1 mm |
| Thread Size | M8 x 1 |
| Thread Standard | Metric Fine |
| Thread Type | Metric Fine |
| Usable Length | 2.638" |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 9 |
| Ship width (cm) | 2.54 |
| HS code | 8207403000 |
| Country of Origin | DE |
Product Variants
| Product | Model | Thread Size | Thread Length | Overall Length | 75% Thread Drill Size | Shank Length | Square Size | 65% Thread Drill Size | 55% Thread Drill Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
EP2126342-M20X1.5 | M20 x 1.5 | 24 mm | 125 mm | 18.5 mm | 45 mm | 12 mm | 18.75 mm | 18.9 mm | €492.74 |
