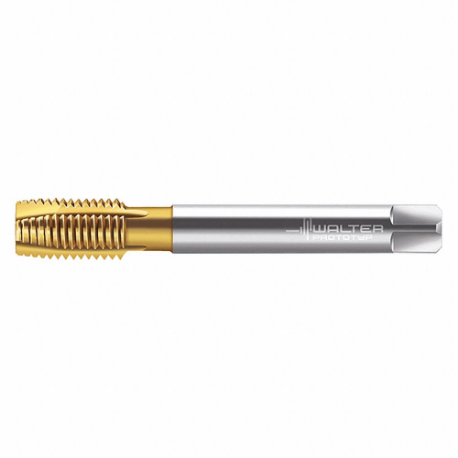

WALTER TOOLS EP2028305-M14 6432548 Spiral Point Tap, M14X2 Thread Size, 25 mm Thread Length, 110 mm Length
Item: CU9GZTModel: EP2028305-M14Cross Ref: 428C81 / 6432548
7 In Stock
Ships within 2 days via
€192.87 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Point Tap |
| 55% Thread Drill Size | 12.5 mm |
| 65% Thread Drill Size | 31/64" |
| 75% Thread Drill Size | 12 mm |
| Clamping Width | 0.354" |
| Connection Dia. | 0.433" |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 12 mm |
| Driving Square Length | 0.472" |
| Extended Neck | Yes |
| Finish | Titanium Nitride Coated |
| Functional Length | 4.331" |
| No. Of Flutes | 4 |
| No. Of Grooves | 4 |
| Overall Length | 110 mm |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel |
| Primary Material Application Iso Code | K, M, N, P |
| Shank Dia. | 11 mm |
| Shank Length | 29 mm |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 9 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Plug |
| Tap Finish | TiN |
| Tap Material | High Speed Steel |
| Tap Thread Size | M14 x 2 |
| Thread Direction | Right Hand |
| Thread Length | 25 mm |
| Thread Limit | 6GX |
| Thread Limit/class Of Fit | 6GX |
| Thread Pitch | 2 mm |
| Thread Size | M14 x 2 |
| Thread Standard | Metric Coarse |
| Usable Length | 3.189" |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 11 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Thread Size | Thread Direction | Thread Length | 75% Thread Drill Size | Overall Length | Thread Limit | Tap Finish | Thread Standard | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TC217.UNC10-G0-WY80FC | #10-24 | Right Hand | 1/2" | #25 | 2 13/16" | 2B | Black Oxide | Coarse | €72.07 | |
 |
EP2221302-UNC10 | #10-24 | Right Hand | 13 mm | #25 | 70 mm | H3, H4 | THL | Coarse | €88.11 | |
 |
AEP2221002-UNC10 | #10-24 | Right Hand | 13 mm | #25 | 70 mm | H3, H4 | THL | Coarse | €87.14 | |
|
TC217.UNF10-G0-WY80RG | #10-32 | Right Hand | 1/2" | #21 | 2.812" | 2B | - | Fine | €95.00 | |
|
EP2321302-UNF10 | #10-32 | Right Hand | 13 mm | #21 | 70 mm | H2, H3 | THL | Fine | €96.90 | |
|
EP2221302-UNC2 | #2-56 | Right Hand | 7 mm | 1.73 mm | 45 mm | H2, H3 | THL | Coarse | €106.88 | |
 |
AS2221005-UNC4 | #4-40 | Right Hand | 6.4 mm | 2.2 mm | 56 mm | H2, H3 | TiN | Coarse | - | RFQ
|
