MARTIN SPROCKET 4040 Taper Bushings
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S| Style | Model | Bore Dia. | Key Way Size | Screw Size | Hub Dia. | Bore Size | Material | Type | Bolt Circle Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 4040 1 1/2 | 1 1/2" | 3/8" x 3/16" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | 1 1/2" | Cast Iron | Standard | 5.54" | €259.08 | |
| B | 4040 1 3/4 | 1 3/4" | 3/8" x 3/16" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | 1 3/4" | Cast Iron | Standard | 5.54" | €259.08 | |
| B | 4040 1 5/8 | 1 5/8" | 3/8" x 3/16" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | - | Cast Iron | Standard | 5.54" | €259.08 | |
| C | 4040 1 7/8 | 1 7/8" | 1/2" x 1/4" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | 1 7/8" | Cast Iron | Standard | 5.54" | €259.08 | |
| B | 4040 1 7/16 | 1 7/16" | 3/8" x 3/16" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | 1 7/16" | Cast Iron | Standard | 5.54" | €259.08 | |
| D | 4040 1 9/16 | 1 9/16" | 3/8" x 3/16" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | - | Cast Iron | Standard | 5.54" | €259.08 | |
| D | 4040 1 11/16 | 1 11/16" | 3/8" x 3/16" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | - | Cast Iron | Standard | 5.54" | €259.08 | |
| D | 4040 1 13/16 | 1 13/16" | 1/2" x 1/4" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | - | Cast Iron | Standard | 5.54" | €259.08 | |
| E | 4040 1 15/16 | 1 15/16" | 1/2" x 1/4" | 5/8" x 1 3/4" | 8 1/2" to 9 1/2" | 1 15/16" | Cast Iron | Standard | 5.54" | €259.08 | |
| B | 4040 2 1/2 | 2 1/2" | 5/8" x 5/16" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | 2 1/2" | Cast Iron | Standard | 5.54" | €259.08 | |
| B | 4040 2 1/4 | 2 1/4" | 1/2" x 1/4" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | 2 1/4" | Cast Iron | Standard | 5.54" | €259.08 | |
| B | 4040 2 1/8 | 2 1/8" | 1/2" x 1/4" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | 2 1/8" | Cast Iron | Standard | 5.54" | €259.08 | |
| F | 4040 2 3/4 | 2 3/4" | 5/8" x 5/16" | 5/8" x 1 3/4" | 8 1/2" to 9 1/2" | 2 3/4" | Cast Iron | Standard | 5.54" | €259.08 | |
| B | 4040 2 3/8 | 2 3/8" | 5/8" x 5/16" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | 2 3/8" | Cast Iron | Standard | 5.54" | €259.08 | |
| B | 4040 2 3/16 | 2 3/16" | 1/2" x 1/4" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | 2 3/16" | Cast Iron | Standard | 5.54" | €259.08 | |
| B | 4040 2 5/8 | 2 5/8" | 5/8" x 5/16" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | 2 5/8" | Cast Iron | Standard | 5.54" | €259.08 | |
| D | 4040 2 5/16 | 2 5/16" | 5/8" x 5/16" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | - | Cast Iron | Standard | 5.54" | €259.08 | |
| B | 4040 2 7/8 | 2 7/8" | 3/4" x 3/8" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | 2 7/8" | Cast Iron | Standard | 5.54" | €259.08 | |
| B | 4040 2 7/16 | 2 7/16" | 5/8" x 5/16" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | 2 7/16" | Cast Iron | Standard | 5.54" | €259.08 | |
| G | 4040 2 9/16 | 2 9/16" | 5/8" x 5/16" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | - | Cast Iron | Standard | 5.54" | €259.08 | |
| H | 4040 2 11/16 | 2 11/16" | 5/8" x 5/16" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | 2 11/16" | Cast Iron | Standard | 5.54" | €259.08 | |
| I | 4040 2 13/16 | 2 13/16" | 3/4" x 3/4" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | - | Cast Iron | Standard | 5.54" | €259.08 | |

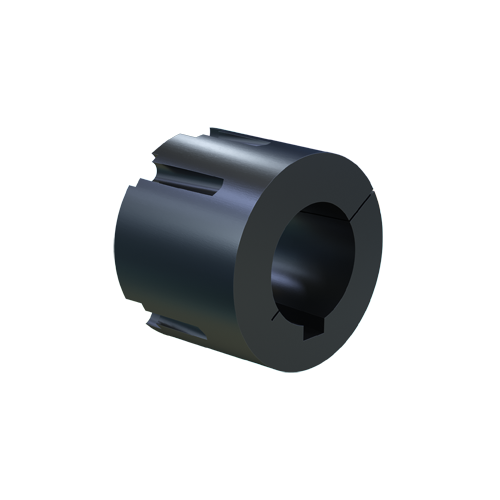

| J | 4040 2 15/16 | 2 15/16" | 3/4" x 3/8" | 5/8" x 1 3/4" | 8 1/2" to 9 1/2" | 2 15/16" | Cast Iron | Standard | 5.54" | €259.08 | |
| B | 4040 2 | 2" | 1/2" x 1/4" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | 2" | Cast Iron | Standard | 5.54" | €259.08 | |
| B | 4040 3 1/2 | 3 1/2" | 7/8" x 7/16" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | 3 1/2" | Cast Iron | Standard | 5.54" | €259.08 | |
| B | 4040 3 1/4 | 3 1/4" | 3/4" x 3/8" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | 3 1/4" | Cast Iron | Standard | 5.54" | €259.08 | |
| K | 4040 3 1/8 | 3 1/8" | 3/4" x 3/8" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | 3 1/8" | Cast Iron | Standard | 5.54" | €259.08 | |
| D | 4040 3 1/16 | 3 1/16" | 3/4" x 3/8" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | - | Cast Iron | Standard | 5.54" | €259.08 | |
| B | 4040 3 3/4 | 3 3/4" | 7/8" x 1/4" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | 3 3/4" | Cast Iron | Standard | 5.54" | €259.08 | |
| L | 4040 3 3/8 | 3 3/8" | 7/8" x 7/16" | 5/8" x 1 3/4" | 8 1/2" to 9 1/2" | 3 3/8" | Cast Iron | Standard | 5.54" | €259.08 | |
| M | 4040 3 3/16 | 3 3/16" | 3/4" x 3/8" | 5/8" x 1 3/4" | 8 1/2" to 9 1/2" | 3 3/16" | Cast Iron | Standard | 5.54" | €259.08 | |

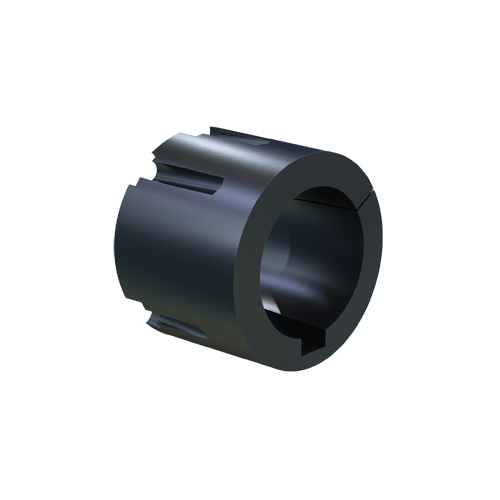

| N | 4040 3 5/8 | 3 5/8" | 7/8" x 7/16" | 5/8" x 1 3/4" | 8 1/2" to 9 1/2" | 3 5/8" | Cast Iron | Standard | 5.54" | €259.08 | |
| O | 4040 3 5/16 | 3 5/16" | 7/8" x 7/16" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | - | Cast Iron | Standard | 5.54" | €259.08 | |
| P | 4040 3 7/8 | 3 7/8" | 1" x 1/4" | 5/8" x 1 3/4" | 8 1/2" to 9 1/2" | 3 7/8" | Cast Iron | Standard | 5.54" | €259.08 | |
| Q | 4040 3 7/16 | 3 7/16" | 7/8" x 7/16" | 5/8" x 1 3/4" | 8 1/2" to 9 1/2" | 3 7/16" | Cast Iron | Standard | 5.54" | €259.08 | |
| B | 4040 3 9/16 | 3 9/16" | 7/8" x 1/4" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | - | Cast Iron | Standard | 5.54" | €259.08 | |
| R | 4040 3 11/16 | 3 11/16" | 7/8" x 1/4" | 5/8" x 1 3/4" | 8 1/2" to 9 1/2" | 3 11/16" | Cast Iron | Standard | 5.54" | €259.08 | |
| D | 4040 3 13/16 | 3 13/16" | 1" x 1/4" | 5/8" x 1 3/4" | 8 1/2" to 9 1/2" | - | Cast Iron | Standard | 5.54" | €259.08 | |
| O | 4040 3 15/16 | 3 15/16" | 1" x 1/4" | 5/8" x 1 3/4" | 8 1/2" to 9 1/2" | 3 15/16" | Cast Iron | Standard | 5.54" | €259.08 | |
| B | 4040 3 | 3" | 3/4" x 3/8" | 5/8"-11 x 1 3/4" | 9 1/2", 8 1/2" | 3" | Cast Iron | Standard | 5.54" | €259.08 | |
| S | 4040 4 | 4" | 1" x 1/4" | 5/8" x 1 3/4" | 8 1/2" to 9 1/2" | 4" | Cast Iron | Standard | 5.54" | €259.08 |
