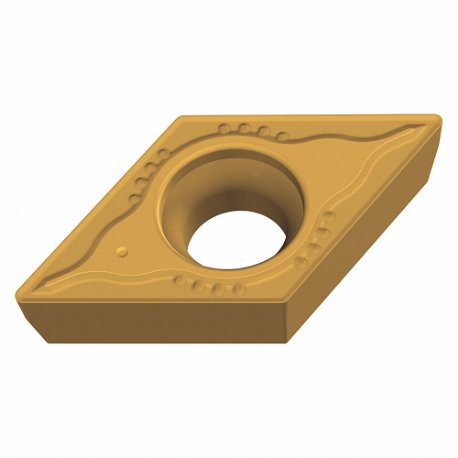

WALTER TOOLS DCMT11T308-MV4 WPV10 Diamond Turning Insert, Neutral, 5/32 Inch Thick, 1/32 Inch Corner Radius
Get it by Tuesday, Sep 1
This product can only be shipped in multiples of 10
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Turning Insert |
| Ansi Code | DCMT3(2.5)2-MV4 |
| Chip Breaker | Yes |
| Chip-breaker Code | MV4 |
| Clearance Angle | 7° |
| Corner Radius | 1/32" |
| Cutting Direction | Neutral |
| Cutting Edge Length | 11.63 mm |
| Cutting Speed | 650 SFPM to 970 SFPM |
| Depth Of Cut | 0.024" to 0.118" |
| Dia. Of Inscribed Circle | 3/8" |
| Feed Rate | 0.006" to 0.013" |
| Finish-machining | Ticn+Al2O3+Tin |
| Included Angle | 55° |
| Inscribed Circle | 3/8" |
| Insert Code | DCMT32.52 |
| Insert Style | DCMT |
| Insert Thickness | 0.156" |
| Iso Number | DCMT11T308-MV4 |
| Major Clearance Angle | 7° |
| Manufacturer Grade | Wpv10 |
| Measurement System | Fractional Inch |
| No. Of Cutting Edges | 2 |
| Radius | 0.031" |
| Rake | Positive |
| Shape | Diamond |
| System Of Measurement | Imperial |
| Thickness | 5/32" |
| Through Hole Inside Dia. | 0.173" |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Model | Cutting Edge Length | Thickness | Material | Manufacturer Grade | Material-machining | Finish-machining | Primary Material Application Iso Code | Cutting Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CCGT060202-X5 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.13 | |
| CCGT060202-X5 WAK15 | 0.254" | - | Carbide | Wak15 | Carbide | Ticn+Al2O3+(Tin) | K | - | €39.70 | |
| CCGT060202-X15 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.13 | |
| CCGT060202-X15 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.70 | |
| CCGT060204-X5 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.28 | |
| CCGT060204-X15 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.23 | |
| CCGT060204-X5 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.70 |
