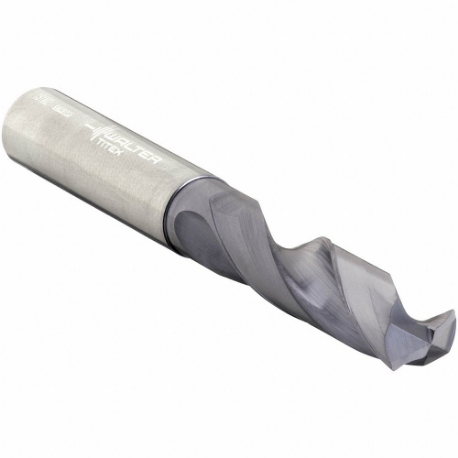

WALTER TOOLS DC150-03-12.303A0-WJ30RE Jobber Length Drill Bit, 31/64 Inch Size Drill Bit Size, 4 3/16 Inch Overall Length | CU8QQU 53AL79

WALTER TOOLS DC150-03-12.303A0-WJ30RE 6618173 Jobber Length Drill Bit, 31/64 Inch Size Size, 4 3/16 Inch Overall Length

Item: CU8QQUModel: DC150-03-12.303A0-WJ30RECross Ref: 53AL79 / 6618173
7 In Stock

Ships within 2 days via

€263.14
10.00% off
€236.83 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Jobber Length Drill Bit
Coolant Fed Non Coolant Through
Cutting Direction Right Hand
Decimal Equivalent 0.4844
Depth X Dia. Ratio 3xd
Drill Bit Point Angle 140°
Drill Bit Point Type Split Point
Drill Bit Size 31/64"
Drill Diameter Tolerance M7
Drill Length Class Jobber Length
Drill Point Length 2.24 mm
Finish Titanium Aluminum Nitride Coat
Finish - Machining TiAlN
Flute Length 2 5/16"
Flute Type Spiral
Grade Grade WJ30RE
Material Carbide
Material - Machining Carbide
Material Grade - Machining Grade WJ30RE
Max. Drilling Depth 1.688"
Maximum Drilling Depth 1 11/16"
Measurement System Fractional Inch
Mfr. Series Perform Series
Number Of Flutes 2
Overall Length 4 3/16"
Point Angle 140°
Point Type Split Point
Primary Material Application Cast Iron, Steel
Primary Material Application Iso Code K, P
Secondary Material Application Aluminum, Brass, Bronze, Composite, Copper, Hardened Steel, Nickel, Stainless Steel, Titanium
Secondary Material Application Iso Code H, M, N, O, S
Shank Dia. 14 mm
Shank Length 1 3/4"
Shank Type Straight
Shank Type - Machining Straight
Sheeter Drill No
Size 0.484"
Standards Din 6537 K
System Of Measurement Imperial

Shipping Info:

Ship weight (kg) 0.64
Ship height (cm)2.54
Ship length (cm)10.64
Ship width (cm)2.54
Country of OriginCN

Product Variants

ProductModelCoolant FedFlute LengthMax. Drilling DepthDecimal EquivalentShank Dia.Overall LengthDrill Bit SizeDrill Bit Point TypePrice
WALTER TOOLS DC150-03-15.300A1-WJ30RE Jobber Drill Bit, 15.30 mm Drill Bit Size, 115 mm Overall Length, 65 mm Max Drilling Dp | CU8NFA 53AM69 DC150-03-15.300A1-WJ30RECoolant Through65 mm65 mm0.602416 mm115 mm15.3 mmSelf Centering Point€481.64
WALTER TOOLS DC150-05-16.200A1-WJ30RE Jobber Drill Bit, 16.20 mm Drill Bit Size, 143 mm Overall Length | CU8NFB 53AM04 DC150-05-16.200A1-WJ30RECoolant Through93 mm93 mm0.637818 mm143 mm16.2 mmSelf Centering Point€666.14
WALTER TOOLS DC150-03-03.250A1-WJ30RE Jobber Drill Bit, 3.25 mm Drill Bit Size, 62 mm Overall Length, 20 mm Max Drilling Dp | CU8NFC 53AM95 DC150-03-03.250A1-WJ30RECoolant Through20 mm20 mm0.1286 mm62 mm--€146.85
WALTER TOOLS DC170-05-04.650A1-WJ30EJ Jobber Drill Bit, 4.65 mm Drill Bit Size, 74 mm Overall Length, 36 mm Max Drilling Dp | CU8NFJ 53AT33 DC170-05-04.650A1-WJ30EJCoolant Through36 mm36 mm0.18316 mm74 mm4.65 mmSelf Centering Point€300.80
WALTER TOOLS DC150-03-16.750A0-WJ30RE Jobber Drill Bit, 16.75 mm Drill Bit Size, 123 mm Overall Length | CU8NFL 53AH49 DC150-03-16.750A0-WJ30RENon Coolant Through73 mm73 mm0.659418 mm123 mm16.75 mmSelf Centering Point€428.18
WALTER TOOLS 7462150 Jobber Length Drill Bit, 10 mm Drill Bit Size, 103 mm Overall Length, Carbide | CU8PET 60FT48 7462150Non Coolant Through61 mm49 mm0.393710 mm103 mm10 mm-€199.82
WALTER TOOLS 7378593 Jobber Length Drill Bit, 10 mm Drill Bit Size, 103 mm Overall Length, Carbide | CU8PEX 60FT47 7378593Non Coolant Through61 mm49 mm0.393710 mm-10 mm-€327.42
