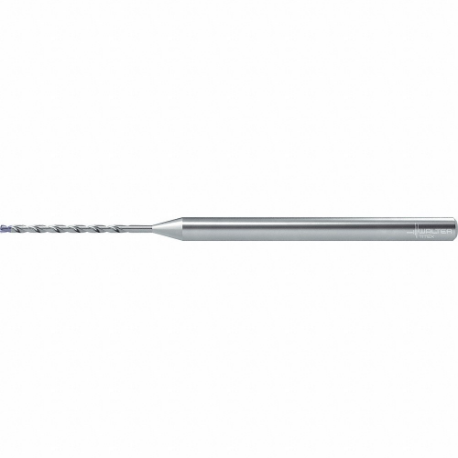

WALTER TOOLS DB133-12-01.191A1-WJ30ER Micro Drill Bit, 1.19 mm Drill Bit Size, 19 mm Flute Length, 3 mm Shank Dia
Item: CU8YYTModel: DB133-12-01.191A1-WJ30ERCross Ref: 60WH63
7 In Stock
Ships within 2 days via
5.00% off
€286.98 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Micro Drill Bit |
| Coolant Fed | Coolant Through |
| Cutting Direction | Right Hand |
| Cutting Edge Dia. | 3/64" |
| Cutting Edge Length | 0.669" |
| Decimal Equivalent | 0.0468 |
| Depth X Dia. Ratio | 12xd |
| Drill Bit Point Angle | 140° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 1.19 mm |
| Drill Dia. Tolerance | H7 |
| Finish | Aluminum Chromium Nitride |
| Finish-machining | AlCrn |
| Flute Length | 19 mm |
| Flute Type | Spiral |
| Grade | WJ30ER |
| Length | 2.323" |
| Material | Carbide |
| Material Grade-machining | Grade WJ30ER |
| Material-machining | Carbide |
| Max. Drilling Depth | 17 mm |
| No. Of Coolant Holes | 2 |
| Overall Length | 59 mm |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel |
| Primary Material Application Iso Code | K, M, N, P |
| Secondary Material Application | Graphite, Hardened Steel, Heat Resistant Alloy, Synthetic Material |
| Secondary Material Application Iso Code | H, O, S |
| Shank Dia. | 3 mm |
| Shank Length | 34 mm |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Spiral Direction | Right Hand |
| System Of Measurement | Metric |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5.9 |
| Ship width (cm) | 2.54 |
| Country of Origin | FR |
Product Variants
| Product | Model | Overall Length | Shank Dia. | Decimal Equivalent | Max. Drilling Depth | Drill Bit Size | Price | |
|---|---|---|---|---|---|---|---|---|
 |
DB130-05-00.990U0-WJ30UU | 25 mm | 1.5 mm | 0.039 | 0.268" | #61 | €51.17 | |
 |
A3162-0.99 | 25 mm | 1.5 mm | 0.039 | 7.3 mm | #61 | - | RFQ
|
 |
A3143-0.94 | 25 mm | 1.5 mm | 0.037 | 0.236" | #63 | €15.41 | |
|
A3162-0.94 | 25 mm | 1.5 mm | 0.037 | 6.47 mm | #63 | - | RFQ
|
|
DB130-05-00.940U0-WJ30UU | 25 mm | 1.5 mm | 0.037 | 0.236" | #63 | €53.27 | |
 |
A3153-0.94 | 25 mm | 1.5 mm | 0.037 | 0.236" | #63 | €28.27 | |
|
A3143-0.89 | 25 mm | 1.5 mm | 0.035 | 0.236" | #65 | €15.91 |
