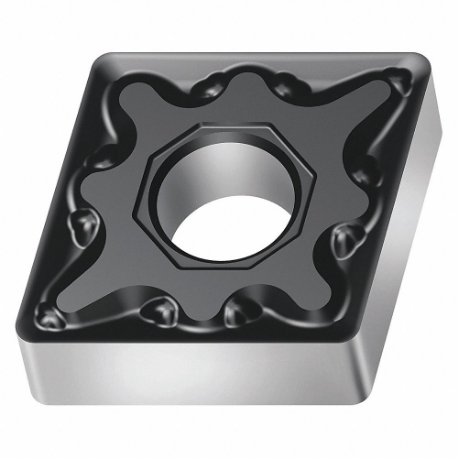

WALTER TOOLS CNMG120404-MM5 WMP20S 7376524 Diamond Turning Insert, Neutral, 3/16 Inch Thick, 1/64 Inch Corner Radius
Item: CU9LYPModel: CNMG120404-MM5 WMP20SCross Ref: 450F72 / 7376524
7 In Stock
Ships within 2 days via
10.00% off
€26.36 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Ansi Code | CNMG431-MM5 WMP20S |
| Chip-breaker | Yes |
| Chip-breaker Code | MM5 |
| Clearance Angle | 0° |
| Corner Radius | 1/64" |
| Cutting Application | Turning |
| Cutting Depth | 0.5 mm to 3 mm |
| Cutting Direction | Neutral |
| Cutting Edge Length | 12.9 mm |
| Finish - Machining | Ticn+Al2O3+Ticn |
| Included Angle | 80° |
| Inscribed Circle | 1/2" |
| Insert Code | CNMG431 |
| Insert Holding Type | Straight Hole |
| Insert Style | CNMG |
| Iso Number | CNMG120404-MM5 WMP20S |
| Manufacturer Grade | WMP20S |
| Material | Carbide |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Number Of Cutting Edges | 4 |
| Primary Material Application | Stainless Steel, Steel |
| Primary Material Application Iso Code | M, P |
| Rake | Negative |
| Shape | Rhombic |
| System Of Measurement | Imperial |
| Thickness | 3/16" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Model | Insert Code | Corner Radius | Clearance Angle | Cutting Direction | Insert Style | Thickness | Inscribed Circle | Chip-breaker Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CCGT060202-X5 WTP35 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X5 | €40.13 | |
| CCGT060202-X5 WAK15 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X5 | €39.70 | |
| CCGT060202-X15 WTP35 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X15 | €40.13 | |
| CCGT060202-X15 WXM15 | CCGT.5 | 0.008" | - | Neutral | CCGT | - | - | X15 | €39.70 | |
| CCGT060204-X5 WTP35 | CCGT1 | 1/64" | 7° | Neutral | CCGT | - | - | X5 | €40.28 | |
| CCGT060204-X15 WXM15 | CCGT1 | 1/64" | - | Neutral | CCGT | - | - | X15 | €39.23 | |
| CCGT060204-X5 WXM15 | CCGT1 | 1/64" | 7° | Neutral | CCGT | - | - | X5 | €39.70 |
