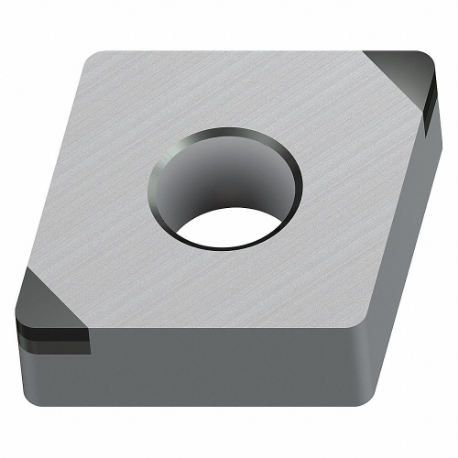

WALTER TOOLS CNGA120408EM-2 WBS10 7636802 Diamond Turning Insert, Neutral, 3/16 Inch Thick, 1/32 Inch Corner Radius
Item: CU9LMVModel: CNGA120408EM-2 WBS10Cross Ref: 60AC29 / 7636802
7 In Stock
0.002" to 0.010"
Ships within 2 days via
5.00% off
€153.90 /unit
This product can only be shipped in multiples of 2Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Ansi Code | CNGA432EM-2 |
| Chip Breaker | Yes |
| Chip-breaker Code | EM-2 |
| Clearance Angle | 0° |
| Corner Radius | 1/32" |
| Cutting Direction | Neutral |
| Cutting Edge Length | 12.9 mm |
| Depth Of Cut | 0.004" to 0.039" |
| Dia. Of Inscribed Circle | 1/2" |
| Feed Rate | 0.002" to 0.01" |
| Included Angle | 80° |
| Inscribed Circle | 1/2" |
| Insert Code | CNGA432 |
| Insert Style | CNGA |
| Insert Thickness | 0.188" |
| Iso Number | CNGA120408EM-2 |
| Limited Cutting Edge Length | 0.106" |
| Major Clearance Angle | 0° |
| Manufacturer Grade | Wbs10 |
| Material | CBN |
| Material-machining | CBN |
| Measurement System | Fractional Inch |
| No. Of Cutting Edges | 2 |
| Radius | 0.031" |
| Rake | Negative |
| Shape | Diamond |
| System Of Measurement | Imperial |
| Thickness | 3/16" |
| Through Hole Inside Dia. | 13/64" |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Model | Cutting Edge Length | Thickness | Material | Manufacturer Grade | Material-machining | Finish-machining | Primary Material Application Iso Code | Cutting Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CCGT060202-X5 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.13 | |
| CCGT060202-X5 WAK15 | 0.254" | - | Carbide | Wak15 | Carbide | Ticn+Al2O3+(Tin) | K | - | €39.70 | |
| CCGT060202-X15 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.13 | |
| CCGT060202-X15 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.70 | |
| CCGT060204-X5 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.28 | |
| CCGT060204-X15 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.23 | |
| CCGT060204-X5 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.70 |
