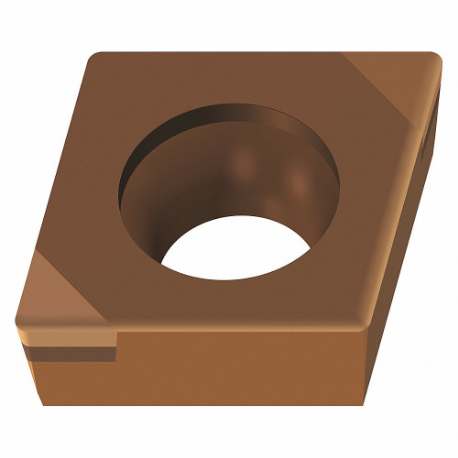

WALTER TOOLS CCGW09T308TS-2 WBK20 7823862 Diamond Turning Insert, Neutral, 5/32 Inch Thick, 1/32 Inch Corner Radius
Item: CU9LKPModel: CCGW09T308TS-2 WBK20Cross Ref: 60AE44 / 7823862
7 In Stock
Ships within 2 days via
10.00% off
€144.04 /unit
This product can only be shipped in multiples of 2Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Ansi Code | CCGW3(2.5)2TS-2 |
| Chip-breaker | Yes |
| Chip-breaker Code | TS-2 |
| Clearance Angle | 7° |
| Corner Radius | 1/32" |
| Cutting Direction | Neutral |
| Cutting Edge Length | 9.67 mm |
| Included Angle | 80° |
| Inscribed Circle | 3/8" |
| Insert Code | CCGW32.52 |
| Insert Style | CCGW |
| Iso Number | CCGW09T308TS-2 |
| Manufacturer Grade | Wbk20 |
| Material | CBN |
| Material - Machining | CBN |
| Measurement System | Fractional Inch |
| Rake | Positive |
| Shape | Diamond |
| System Of Measurement | Imperial |
| Thickness | 5/32" |
| Through Hole Inside Dia. | 0.173" |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Model | Insert Code | Corner Radius | Clearance Angle | Cutting Direction | Insert Style | Thickness | Inscribed Circle | Chip-breaker Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CCGT060202-X5 WTP35 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X5 | €40.13 | |
| CCGT060202-X5 WAK15 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X5 | €39.70 | |
| CCGT060202-X15 WTP35 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X15 | €40.13 | |
| CCGT060202-X15 WXM15 | CCGT.5 | 0.008" | - | Neutral | CCGT | - | - | X15 | €39.70 | |
| CCGT060204-X5 WTP35 | CCGT1 | 1/64" | 7° | Neutral | CCGT | - | - | X5 | €40.28 | |
| CCGT060204-X15 WXM15 | CCGT1 | 1/64" | - | Neutral | CCGT | - | - | X15 | €39.23 | |
| CCGT060204-X5 WXM15 | CCGT1 | 1/64" | 7° | Neutral | CCGT | - | - | X5 | €39.70 |
