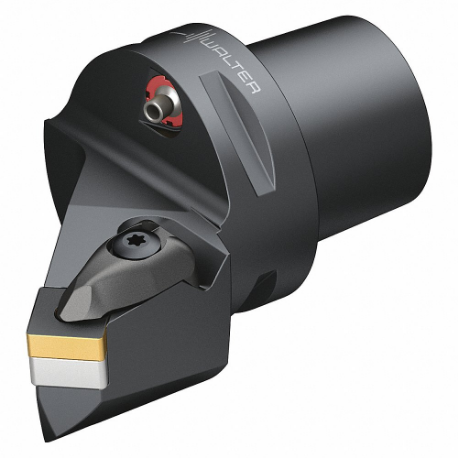

WALTER TOOLS C4-DSSNR-27042-12 5042304 Indexable Cutting Unit Head for External Turning, Right Hand, 74.32 mm Overall Length
Item: CU8FMNModel: C4-DSSNR-27042-12Cross Ref: 56PN53 / 5042304
7 In Stock
1.654"
R
12
Ships within 2 days via
5.00% off
€526.81 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | External |
| Connection Size Code | C4 |
| Coolant Pressure | 1160.302 psi |
| Cutting Direction | Right Hand |
| Functional Length | 1.654" |
| Functional Width | 1.063", 0.735" |
| Hand | R |
| Inclination Angle | 0° |
| Insert Holding Type | Top And Hole Clamping |
| Insert Seat Size | 12 |
| Iso Number | C4-DSSNR-27042-12 |
| Lead Angle | 45° |
| Min. Dia. | 4.331", 5.512" |
| Orthogonal Rake Angle | -8° |
| Overall Length | 74.32 mm |
| Projection Length | 1.981" |
Shipping Info:
| Ship weight (kg) | 0.38 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 7.43 |
| Ship width (cm) | 2.54 |
| Country of Origin | SE |
Product Variants
| Product | Model | Functional Width | Coolant Pressure | Functional Length | Insert Seat Size | Inclination Angle | Orthogonal Rake Angle | Insert Holding Type | Cutting Direction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
C4-MTJNL-27050-16 | 1.063" | 145.038 psi | 1.969" | 16 | -6° | -6° | Wedge Lock | Left Hand | €551.49 | |
 |
C3-SVJBL-22040-11 | 0.866" | 1160.302 psi | 1.575" | 11 | 0° | 0° | Screw On | Left Hand | €668.25 | |
|
C6-SVJBL-45065-16 | 1.772" | 1160.302 psi | 2.559" | 16 | 0° | 0° | Screw On | Left Hand | €795.25 | |
 |
C6-DCLNL-45065-19 | 1.772" | 1160.302 psi | 2.559" | 19 | -6° | -6° | Top And Hole Clamping | Left Hand | €705.46 | |
 |
C4-DSKNL-27050-12 | 1.063" | 1160.302 psi | 1.969" | 12 | -6° | -6° | Top And Hole Clamping | Left Hand | €551.49 | |
 |
C5-PDJNL-35060-11 | 1.378" | 1160.302 psi | 2.362" | 11 | -7° | -6° | Lever Lock | Left Hand | €615.12 | |
 |
C5-DDUNL-35060-15 | 1.378" | 1160.302 psi | 2.362" | 15 | -7° | -6° | Top And Hole Clamping | Left Hand | €615.12 |
