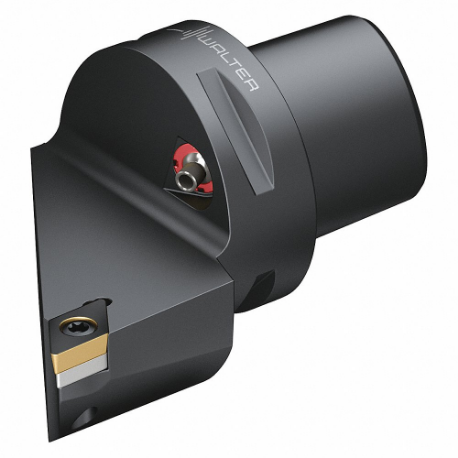

WALTER TOOLS C3-SDJCL-22040-07 5017079 Indexable Cutting Unit Head for External Turning, 59 mm Overall Length, Screw On
Item: CU8FENModel: C3-SDJCL-22040-07Cross Ref: 56PV59 / 5017079
7 In Stock
1.575"
L
07
Ships within 2 days via
5.00% off
€523.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | External |
| Connection Size Code | C3 |
| Coolant Pressure | 1160.302 psi |
| Cutting Direction | Left Hand |
| Functional Length | 1.575" |
| Functional Width | 0.866" |
| Hand | L |
| Inclination Angle | 0° |
| Insert Holding Type | Screw On |
| Insert Seat Size | 7 |
| Iso Number | C3-SDJCL-22040-07 |
| Lead Angle | 93° |
| Min. Dia. | 2.756", 4.567" |
| Orthogonal Rake Angle | 0° |
Shipping Info:
| Ship weight (kg) | 0.19 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5.9 |
| Ship width (cm) | 2.54 |
| Country of Origin | SE |
Product Variants
| Product | Model | Functional Width | Coolant Pressure | Functional Length | Insert Seat Size | Inclination Angle | Orthogonal Rake Angle | Insert Holding Type | Cutting Direction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

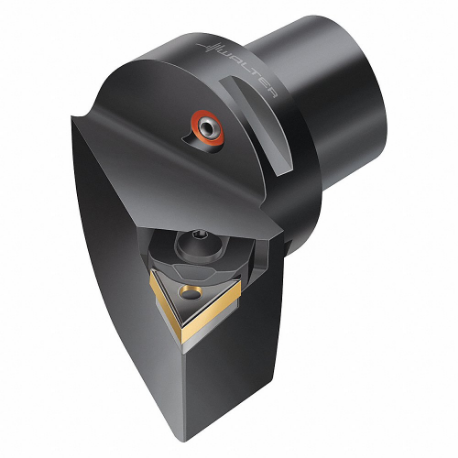

C4-MTJNL-27050-16 | 1.063" | 145.038 psi | 1.969" | 16 | -6° | -6° | Wedge Lock | Left Hand | €551.49 | |
 |

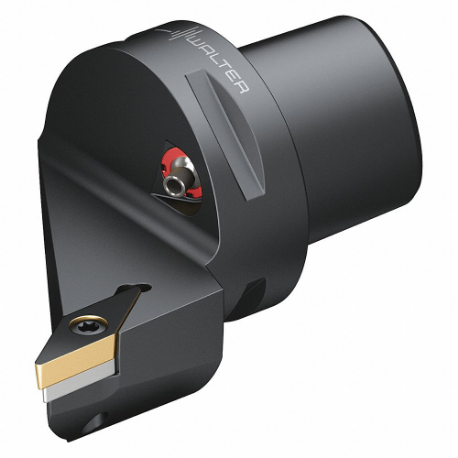

C3-SVJBL-22040-11 | 0.866" | 1160.302 psi | 1.575" | 11 | 0° | 0° | Screw On | Left Hand | €668.25 | |
|
C6-SVJBL-45065-16 | 1.772" | 1160.302 psi | 2.559" | 16 | 0° | 0° | Screw On | Left Hand | €795.25 | |
 |

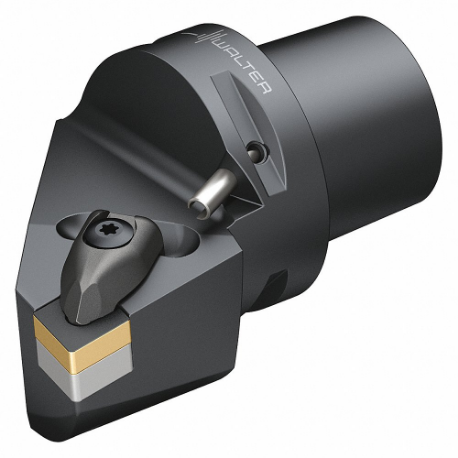

C6-DCLNL-45065-19 | 1.772" | 1160.302 psi | 2.559" | 19 | -6° | -6° | Top And Hole Clamping | Left Hand | €705.46 | |
 |

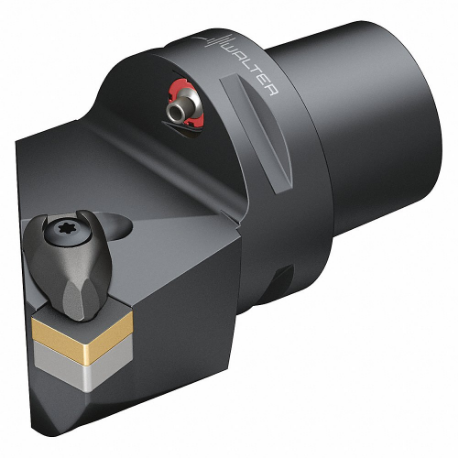

C4-DSKNL-27050-12 | 1.063" | 1160.302 psi | 1.969" | 12 | -6° | -6° | Top And Hole Clamping | Left Hand | €551.49 | |
 |
C5-PDJNL-35060-11 | 1.378" | 1160.302 psi | 2.362" | 11 | -7° | -6° | Lever Lock | Left Hand | €615.12 | |
 |

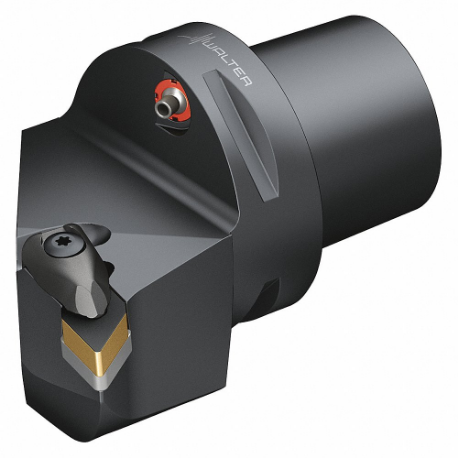

C5-DDUNL-35060-15 | 1.378" | 1160.302 psi | 2.362" | 15 | -7° | -6° | Top And Hole Clamping | Left Hand | €615.12 |
