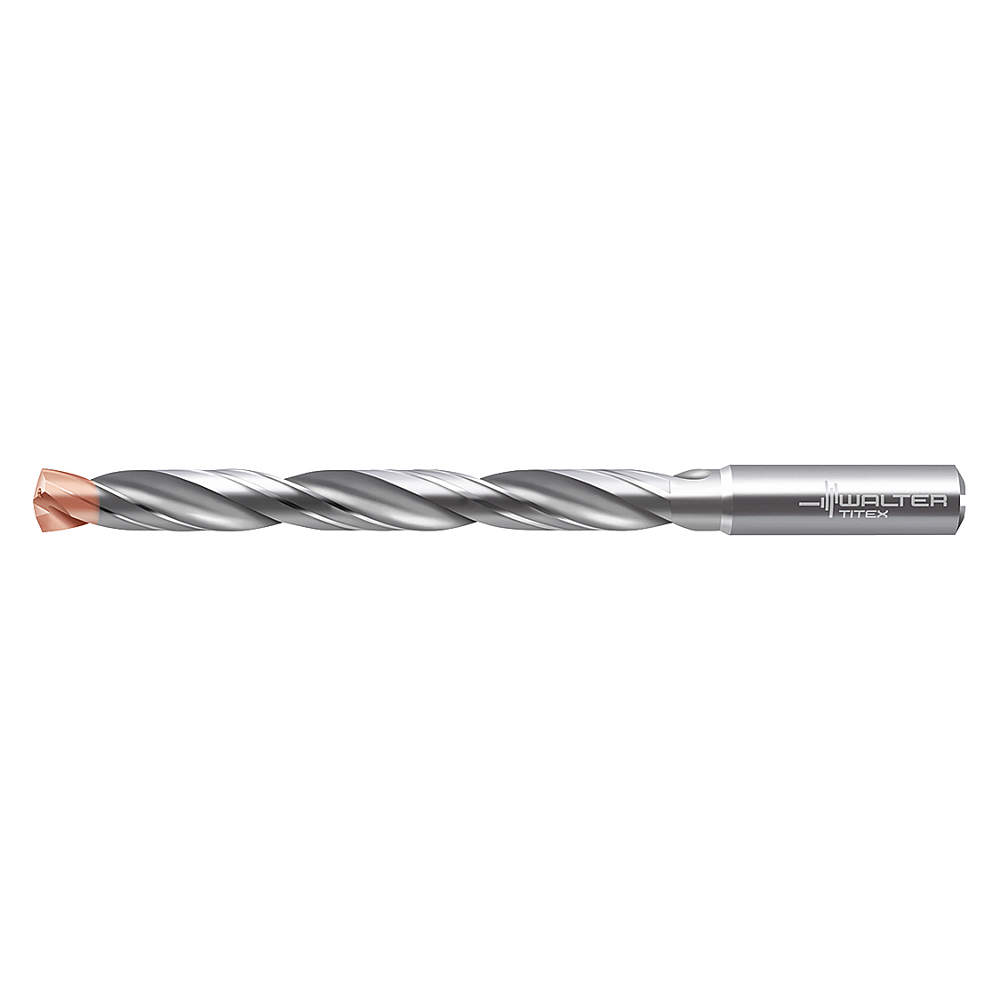

WALTER TOOLS A6489DPP-11/64IN 5834624 Coolant Fed Drill 4.366mm 140 Carbide
Item: AF8XBJModel: A6489DPP-11/64INCross Ref: 29HV28 / 5834624
7 In Stock
0.172"
Ships within 2 days via
10.00% off
€392.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Drill Bit |
| Coolant Fed | Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1719 |
| Depthdia. Ratio | 8xd |
| Dimension Type | Fractional Inch |
| Drill Bit Point Angle | 140° |
| Drill Bit Point Type | Self Centering Point |
| Drill Bit Size | 11/64" |
| Drill Diameter Tolerance | M7 |
| Drill Length Class | Jobber Length |
| Drill Point Length | 0.795 mm |
| Finish | TiAlN |
| Finish - Machining | TiAlN |
| Flute Length | 1 3/4" |
| Flute Type | Spiral |
| Grade | Grade K30F |
| List Number | A3382 |
| Material | Solid Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | Grade K30F |
| Maximum Drilling Depth | 1 29/64" |
| Measurement System | Fractional Inch |
| Number Of Coolant Holes | 2 |
| Number Of Flutes | 2 |
| Overall Length | 3 11/32" |
| Point Angle | 140° |
| Point Type | Self Centering |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Hardened Steel, Nickel, Stainless Steel, Steel, Titanium |
| Primary Material Application Iso Code | H, K, M, N, P, S |
| Secondary Material Application | Composite |
| Secondary Material Application Iso Code | O |
| Series | X.Treme D8 |
| Shank Dia. | 6 mm |
| Shank Length | 1 13/32" |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Size | 4.366 mm |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.49 |
| Ship width (cm) | 2.54 |
| HS code | 8466100130 |
| Country of Origin | US |
Product Details:
- Coolant Through (Yes)
Product Variants
| Model | Decimal Equivalent | Size | Dimension Type | Material | Finish | Point Angle | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|
| A6489DPP-15 | 0.5906 | - | - | Solid Carbide | TiAlN | - | Grade K30F | €1,565.10 | |
| A6489DPP-15.5 | 0.6102 | - | Metric | Solid Carbide | TiAlN | - | Grade K30F | €1,562.84 | |
| A6489DPP-5/8IN | 0.625 | 15.875 mm | Fractional Inch | Solid Carbide | TiAlN | 140° | Grade K30F | €1,377.99 | |
| A6489DPP-16 | 0.6299 | - | Metric | Solid Carbide | TiAlN | - | Grade K30F | €1,562.84 | |
| A6489DPP-16.5 | 0.6496 | - | Metric | Solid Carbide | TiAlN | - | Grade K30F | €2,009.89 | |
| A6489DPP-3 | 0.1181 | 3" | Metric | Solid Carbide | TiAlN | 140° | Grade K30F | €494.24 | |
| A6489DPP-3.1 | 0.122 | 3.1 mm | Metric | Solid Carbide | TiAlN | 140° | Grade K30F | €494.24 |
