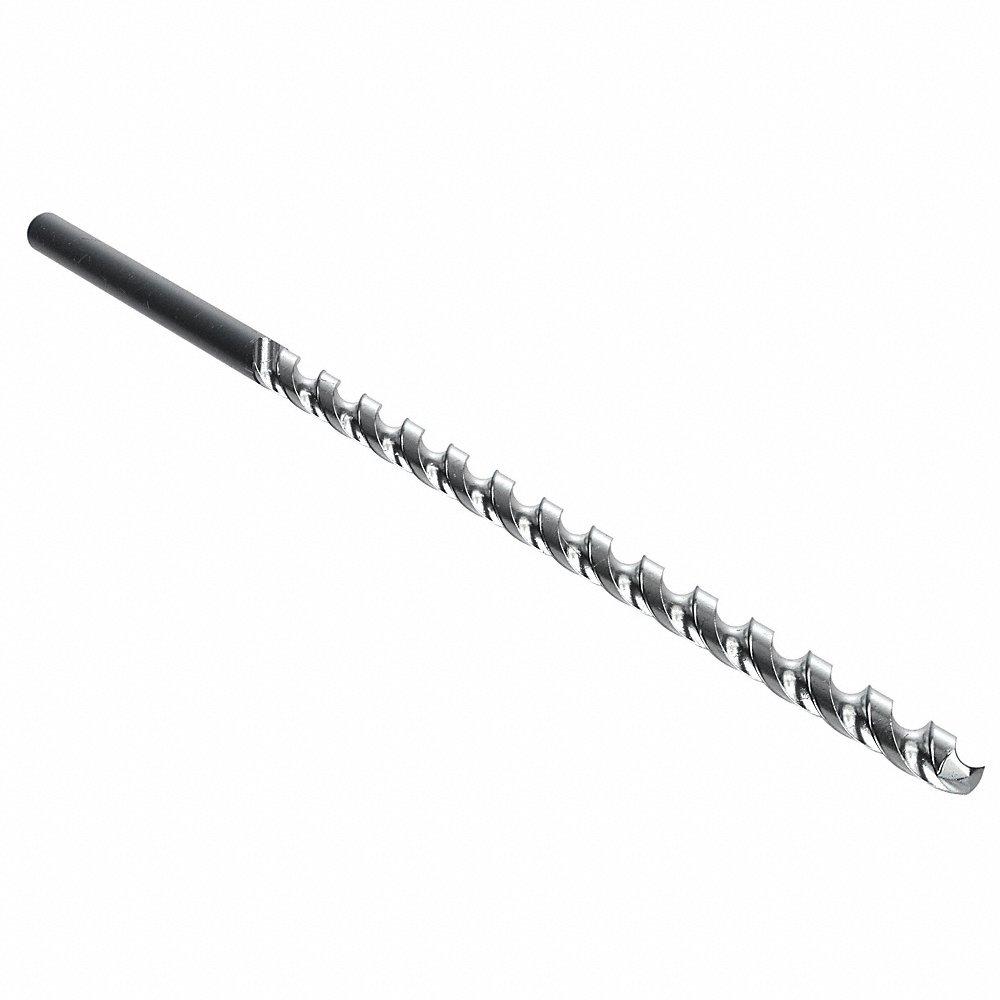

WALTER TOOLS A1622-NO7 Long Drill Bit, #7 Drill Bit Size, 5 5/16 Inch Flute Length, 5.11 mm Shank Dia | CU8ULF 440M13

WALTER TOOLS A1622-NO7 5062536 Long Drill Bit, #7 Drill Bit Size, 5 5/16 Inch Flute Length, 5.11 mm Shank Dia

Item: CU8ULFModel: A1622-NO7Cross Ref: 440M13 / 5062536
7 In Stock

Ships within 2 days via

€83.46
10.00% off
€75.11 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Long Drill Bit
Coolant Fed Non Coolant Through
Cutting Direction Right Hand
Decimal Equivalent 0.201
Depthdia. Ratio 16xd
Drill Bit Point Angle 130°
Drill Bit Point Type Conventional Point
Drill Bit Size #7
Drill Diameter Tolerance H8
Drill Length Class Extra Long
Drill Point Length 1.19 mm
Finish Bright, Uncoated
Finish - Machining Bright (Uncoated)
Flute Length 5 5/16"
Flute Type Parabolic
Grade General Purpose
Material High Speed Steel
Material - Machining High Speed Steel
Material Grade - Machining General Purpose
Max. Drilling Depth 5.312"
Maximum Drilling Depth 5 5/16"
Number Of Flutes 2
Overall Length 195 mm
Point Angle 130°
Point Type Conventional Point
Primary Material Application Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Primary Material Application Iso Code K, N, P
Secondary Material Application Composite, Nickel, Stainless Steel, Titanium
Secondary Material Application Iso Code M, O, S
Shank Dia. 5.11 mm
Shank Length 60 mm
Shank Type Straight
Shank Type - Machining Straight
Sheeter Drill No
Size #7
Standards Din 1869 R1
System Of Measurement Wire

Shipping Info:

Ship weight (kg) 0.01
Ship height (cm)2.54
Ship length (cm)19.5
Ship width (cm)2.54
Country of OriginFR

Product Variants

ProductModelFlute LengthFinishDecimal EquivalentFlute TypeMax. Drilling DepthOverall LengthDrill Bit SizeDrill Bit Point AnglePrice
WALTER TOOLS A1522-NO1 Long Drill Bit, #1 Drill Bit Size, 3 37/64 Inch Flute Length, 5.79 mm Shank Dia | CU8UEZ 440J06 A1522-NO13 37/64"Bright, Uncoated0.228Parabolic3.578"139 mm#1130°€42.37
WALTER TOOLS A1622-NO1 Long Drill Bit, #1 Drill Bit Size, 5 1/2 Inch Flute Length, 5.79 mm Shank Dia | CU8UFA 440L75 A1622-NO15 1/2"Bright, Uncoated0.228Parabolic5 1/2"205 mm#1130°€70.70
WALTER TOOLS A1522-NO10 Long Drill Bit, #10 Drill Bit Size, 3 27/64 Inch Flute Length, 4.92 mm Shank Dia | CU8UFB 440J07 A1522-NO103 27/64"Bright, Uncoated0.1935Parabolic3.422"132 mm#10130°€29.30
WALTER TOOLS A1622-NO10 Long Drill Bit, #10 Drill Bit Size, 5 5/16 Inch Flute Length, 4.92 mm Shank Dia | CU8UFC 440L76 A1622-NO105 5/16"Bright, Uncoated0.1935Parabolic5.312"-#10130°€50.53
WALTER TOOLS A1522-NO11 Long Drill Bit, #11 Drill Bit Size, 3 27/64 Inch Flute Length, 4.85 mm Shank Dia | CU8UFD 440J08 A1522-NO113 27/64"Bright, Uncoated0.191Parabolic3.422"132 mm#11130°€33.33
WALTER TOOLS A1622-NO11 Long Drill Bit, #11 Drill Bit Size, 5 5/16 Inch Flute Length, 4.85 mm Shank Dia | CU8UFE 440L77 A1622-NO115 5/16"Bright, Uncoated0.191Parabolic5.312"195 mm#11130°€70.70
WALTER TOOLS A1544-4.8 Long Drill Bit, #12 Drill Bit Size, 3 27/64 Inch Flute Length, 4.80 mm Shank Dia | CU8UFF 440X51 A1544-4.83 27/64"Bright, Uncoated0.189Spiral3.422"132 mm#12130°€39.40
