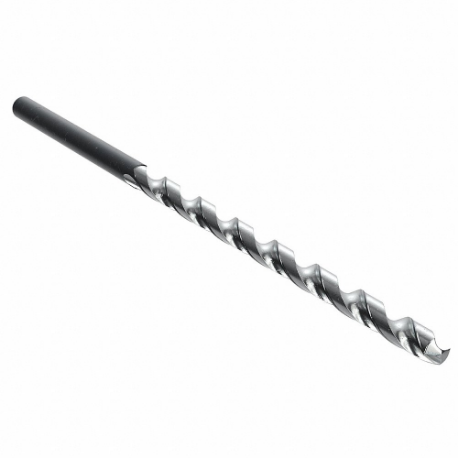

WALTER TOOLS A1547-11.5 5062164 Long Drill Bit, 11.50 mm Drill Bit Size, 5 1/32 Inch Flute Length, 11.50 mm Shank Dia
Item: CU8UTCModel: A1547-11.5Cross Ref: 440Y22 / 5062164
7 In Stock
0.453"
Ships within 2 days via
10.00% off
€184.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Long Drill Bit |
| Coolant Fed | Non Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.4528 |
| Depthdia. Ratio | 12xd |
| Drill Bit Point Angle | 130° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 11.5 mm |
| Drill Diameter Tolerance | H8 |
| Drill Length Class | Extra Long |
| Drill Point Length | 2.68 mm |
| Finish | Bright, Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 5 1/32" |
| Flute Type | Spiral |
| Grade | General Purpose |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Max. Drilling Depth | 5.031" |
| Maximum Drilling Depth | 5 1/32" |
| Number Of Flutes | 2 |
| Point Angle | 130° |
| Point Type | Conventional Point |
| Primary Material Application | Cast Iron, Nickel, Stainless Steel, Titanium |
| Primary Material Application Iso Code | K, M, S |
| Shank Dia. | 11.5 mm |
| Shank Length | 2 5/8" |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Size | 11.5 mm |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 19.5 |
| Ship width (cm) | 2.54 |
| Country of Origin | FR |
Product Variants
| Product | Model | Flute Length | Finish | Decimal Equivalent | Flute Type | Max. Drilling Depth | Overall Length | Drill Bit Size | Drill Bit Point Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A1522-NO1 | 3 37/64" | Bright, Uncoated | 0.228 | Parabolic | 3.578" | 139 mm | #1 | 130° | €42.37 | |
 |
A1622-NO1 | 5 1/2" | Bright, Uncoated | 0.228 | Parabolic | 5 1/2" | 205 mm | #1 | 130° | €70.70 | |
|
A1522-NO10 | 3 27/64" | Bright, Uncoated | 0.1935 | Parabolic | 3.422" | 132 mm | #10 | 130° | €29.30 | |
|
A1622-NO10 | 5 5/16" | Bright, Uncoated | 0.1935 | Parabolic | 5.312" | - | #10 | 130° | €50.53 | |
|
A1522-NO11 | 3 27/64" | Bright, Uncoated | 0.191 | Parabolic | 3.422" | 132 mm | #11 | 130° | €33.33 | |
|
A1622-NO11 | 5 5/16" | Bright, Uncoated | 0.191 | Parabolic | 5.312" | 195 mm | #11 | 130° | €70.70 | |
 |
A1544-4.8 | 3 27/64" | Bright, Uncoated | 0.189 | Spiral | 3.422" | 132 mm | #12 | 130° | €39.40 |
