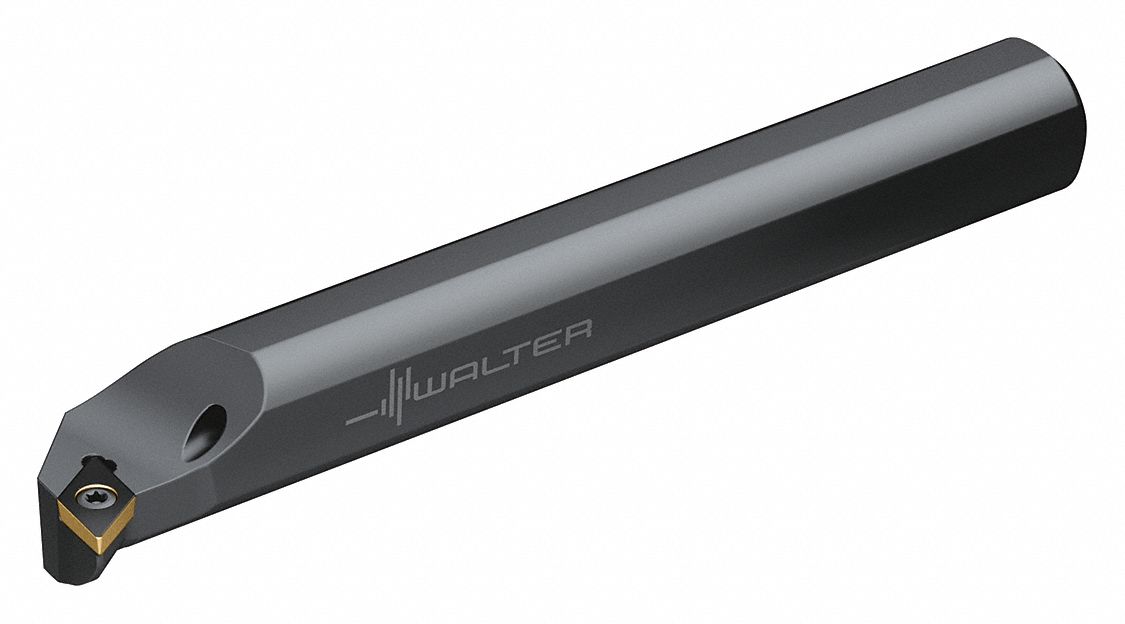

WALTER TOOLS A12M-SDUCR07 5194507 Indexable Boring Bar Screw Clamp Steel
Item: AF9LWMModel: A12M-SDUCR07Cross Ref: 30EL93 / 5194507
7 In Stock
Ships within 2 days via
10.00% off
€253.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Indexable Boring Bar |
| Ansi Number | A12M-SDUCR07 |
| Approach Angle | 93° |
| Bar Dia. | 0.472" |
| Center To Cutting Tip | 9 mm |
| Compatible Hardware | Fs1490 Torx Key, Fs2061 Clamping Screw |
| Coolant Fed | Coolant Through |
| Cutting Angle | 0° |
| Cutting Application | Facing, Interrupted Cuts, Profiling, Turning |
| Cutting Direction | Right |
| Cutting Edge Angle | 0° |
| Head Material | Steel |
| Includes | Fs1490 Torx Key, Fs2061 Clamping Screw |
| Insert Clearance Angle | 7° |
| Insert Holding Type | Screw On |
| Insert Shape | Diamond |
| Insert Size | 0702 |
| Insert Style | DC |
| Iso Number | A12M-SDUCR07 |
| Lead Angle | 93° |
| Max. Bore Depth | 48 mm |
| Min. Bore Dia. | 16 mm |
| Mounting Style | Screw Clamp |
| Number Of Coolant Holes | 1 |
| Number Of Inserts | 1 |
| Overall Length | 150 mm |
| Primary Material Application | Cast Iron, Nickel, Stainless Steel, Steel, Titanium |
| Primary Material Application Iso Code | K, M, N, P, S |
| Rake | Positive |
| Secondary Material Application | Hardened Steel |
| Secondary Material Application Iso Code | H |
| Shank Dia. | 12 mm |
| Shank Material | High Speed Steel |
| Side Cutting Edge Angle | 0° |
| Style | 93 degrees boring and facing |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 15 |
| Ship width (cm) | 2.54 |
| HS code | 8209000030 |
| Country of Origin | SE |
Product Variants
| Product | Model | Overall Length | Insert Clearance Angle | Shank Dia. | Insert Shape | Insert Style | Toolholder Style | Cutting Direction | Min. Bore Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A12S-SCLCL3 | 10" | 7° | 3/4" | - | - | A-SCLC | Left | 0.929" | €342.38 | |
|
A12S-SCLCR3 | 10" | 7° | 3/4" | - | - | A-SCLC | Right | 0.929" | €342.38 | |
|
A16T-SCLCL3 | 12" | 7° | 1" | - | - | - | Left | 1.201" | €397.33 | |
|
A16T-SCLCL4 | 12" | 7° | 1" | - | - | - | Left | 1.201" | €392.08 | |
|
A16T-SCLCR3 | 12" | 7° | 1" | - | - | - | Right | 1.201" | €422.79 | |
 |
A20T-STFCR3 | 12" | 7° | 1 1/4" | Triangular | - | - | Right | 1.469" | €552.51 | |
 |
A20T-SVUBL3 | 12" | 5° | 1 1/4" | Diamond | - | - | Left | 1.705" | €549.59 |
