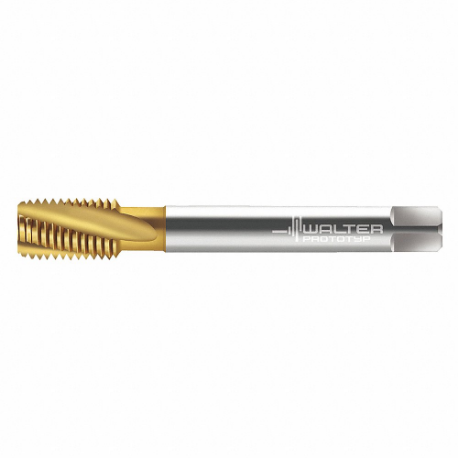

WALTER TOOLS 2146005-M8X1 Spiral Flute Tap, M8X1 Thread Size, 13 mm Thread Length, 90 mm Length, Tin | CU9FWC 427A60

WALTER TOOLS 2146005-M8X1 5077655 Spiral Flute Tap, M8X1 Thread Size, 13 mm Thread Length, 90 mm Length, Tin

Item: CU9FWCModel: 2146005-M8X1Cross Ref: 427A60 / 5077655
7 In Stock

Ships within 2 days via

€144.90 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Spiral Flute Tap
55% Thread Drill Size 7.25 mm
65% Thread Drill Size 9/32"
75% Thread Drill Size 7 mm
Clamping Width 0.193"
Connection Dia. 0.236"
Coolant Fed Non Coolant Through
Drill Bit Size 7 mm
Driving Square Length 0.315"
Extended Neck Yes
Features For Long Chipping Materials
Finish Titanium Nitride Coated
Functional Length 3.543"
Helix Angle 15°
No. Of Flutes 3
No. Of Grooves 3
Overall Length 90 mm
Primary Material Application Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel
Primary Material Application Iso Code K, N, P
Shank Dia. 6 mm
Shank Length 23 mm
Shank Type Straight
Shank Type-machining Straight
Spiral Direction Right Hand
Square Size 4.9 mm
System Of Measurement Metric
Tap Chamfer Modified Bottoming, Semi Bottoming
Tap Finish TiN
Tap Material High Speed Steel
Tap Shank Standard DIN 374
Tap Style Spiral Flute
Tap Thread Size M8 x 1
Tap Type Spiral Flute
Thread Direction Right Hand
Thread Length 13 mm
Thread Limit D4, D5
Thread Limit/class Of Fit D4, D5
Thread Pitch 1 mm
Thread Size M8 x 1
Thread Standard Metric Fine
Usable Length 2.638"

Shipping Info:

Ship weight (kg) 0.01
Ship height (cm)2.54
Ship length (cm)9
Ship width (cm)2.54
Country of OriginIN

Product Variants

ProductModelThread SizeThread DirectionThread LimitThread LengthOverall Length75% Thread Drill SizeTap FinishTap MaterialPrice
WALTER TOOLS 23400-UNF0 Spiral Flute Tap, #0-80 Thread Size, 6 mm Thread Length, 40 mm Length | CU9CWP 427D94 23400-UNF0#0-80Right HandH16 mm40 mm1.2 mmBrightHigh Speed Steel€109.99
WALTER TOOLS 23410-UNF0 Spiral Flute Tap, #0-80 Thread Size, 6 mm Thread Length, 40 mm Length, Pipe | CU9CWQ 427F37 23410-UNF0#0-80Right HandH1, H26 mm40 mm1.2 mmBrightHigh Speed Steel€106.75
WALTER TOOLS AS2251005-UNC10 Spiral Flute Tap, #10-24 Thread Size, 11 mm Thread Length, 70 mm Length | CU9CWR 427X07 AS2251005-UNC10#10-24Right HandH3, H411 mm70 mm#25TiN, VapHigh Speed Steel€70.70
WALTER TOOLS EP2251302-UNC10 Spiral Flute Tap, #10-24 Thread Size, 8 mm Thread Length, 70 mm Length | CU9CWX 428H29 EP2251302-UNC10#10-24Right HandH3, H48 mm70 mm#25THLHigh Speed Steel€87.87
WALTER TOOLS 22410-UNC10 Spiral Flute Tap, #10-24 Thread Size, 8 mm Thread Length, 70 mm Length, Pipe | CU9CWZ 427D21 22410-UNC10#10-24Right HandH3, H48 mm70 mm#25BrightHigh Speed Steel€68.67
WALTER TOOLS AEP2251302-UNC10 Spiral Flute Tap, #10-24 Thread Size, 8 mm Thread Length, 70 mm Length, Thl | CU9CXB 427W20 AEP2251302-UNC10#10-24Right HandH3, H48 mm70 mm#25THLHigh Speed Steel€87.87
WALTER TOOLS TC115-UNC10-C0-WY80AA Spiral Flute Tap, #10-24 Thread Size, 8 mm Thread Length, 70 mm Length, Tin | CU9CXD 429F60 TC115-UNC10-C0-WY80AA#10-24Right HandH3, H48 mm70 mm#25TiNHigh Speed Steel€32.73
