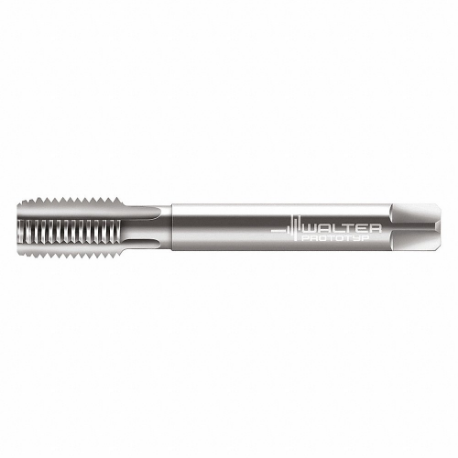

WALTER TOOLS 21368-M8X1 5077564 Straight Flute Tap, M8X1 Thread Size, 18 mm Thread Length, 90 mm Length
Item: CU9BQUModel: 21368-M8X1Cross Ref: 427A33 / 5077564
7 In Stock
MF 8x1
2.638"
Ships within 2 days via
10.00% off
€118.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Straight Flute Tap |
| 55% Thread Drill Size | 7.25 mm |
| 65% Thread Drill Size | 9/32" |
| 75% Thread Drill Size | 7 mm |
| Coolant Fed | Non Coolant Through |
| Extended Neck | Yes |
| Finish | Bright |
| Number Of Flutes | 3 |
| Overall Length | 90 mm |
| Primary Material Application | Aluminum, Brass, Bronze, Copper |
| Primary Material Application Iso Code | N |
| Secondary Material Application | Cast Iron, Composite |
| Secondary Material Application Iso Code | K, O |
| Shank Dia. | 6 mm |
| Shank Length | 23 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 4.9 mm |
| Standards | DIN 374 |
| System Of Measurement | Metric |
| Tap Chamfer | Modified Bottoming, Semi Bottoming |
| Tap Finish | Bright |
| Tap Length Standard | DIN 374 |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN 374 |
| Tap Style | Straight Flute (Hand) |
| Thread Direction | Left Hand |
| Thread Length | 18 mm |
| Thread Limit | D4, D5 |
| Thread Limit/class Of Fit | D4, D5 |
| Thread Pitch | 1 mm |
| Thread Size | M8 x 1 |
| Thread Standard | Metric Fine |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 9 |
| Ship width (cm) | 2.54 |
| Country of Origin | IN |
Product Variants
| Product | Model | Number Of Flutes | Thread Direction | Thread Limit | Overall Length | Thread Length | Thread Size | Tap Finish | 75% Thread Drill Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7569439 | 4 | Right Hand | 2B | 2.756" | 0.512" | #10-24 | Taft. (Tialn) | #25 | - | RFQ
|
 |
E22314-UNC10 | 4 | Right Hand | H3, H4 | 70 mm | 13 mm | #10-24 | Black Oxide | #25 | €86.54 | |
|
A23314-UNF10 | 4 | Right Hand | H2, H3 | 60.4 mm | 18 mm | #10-32 | Black Oxide | #21 | €103.84 | |
 |
7569327 | 4 | Right Hand | 2B | 3.15" | 0.591" | #12-28 | TiCN | 0.1811" | - | RFQ
|
 |
7569435 | 3 | Right Hand | - | 1.772" | 0.276" | #2-56 | Taft. (Tialn) | 0.0681" | €128.18 | |
|
7569436 | 3 | Right Hand | 2B | 2.205" | 0.354" | #4-40 | Taft. (Tialn) | 0.0866" | €99.82 | |
|
E22314-UNC6 | 3 | Right Hand | H3, H4 | 56 mm | 11 mm | #6-32 | Black Oxide | #36 | €78.91 |
