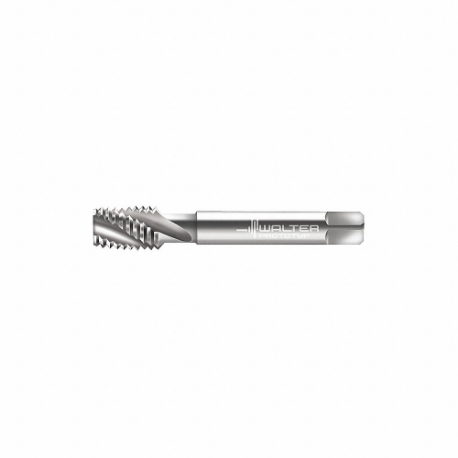

WALTER TOOLS 20167-M4 5075800 Spiral Flute Tap, M4X0.7 Thread Size, 7 mm Thread Length, 45 mm Length
Item: CU9FJNModel: 20167-M4Cross Ref: 426R94 / 5075800
7 In Stock
Ships within 2 days via
€38.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 3.5 mm |
| 65% Thread Drill Size | 3.4 mm |
| 75% Thread Drill Size | 3.3 mm |
| Clamping Width | 0.134" |
| Connection Dia. | 0.177" |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 3.3 mm |
| Driving Square Length | 0.236" |
| Extended Neck | Yes |
| Features | For Long Chipping Materials |
| Finish | Bright |
| Functional Length | 1.772" |
| Helix Angle | 40° |
| No. Of Flutes | 3 |
| Overall Length | 45 mm |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper |
| Secondary Material Application Iso Code | K, N |
| Shank Length | 28.5 mm |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Spiral Direction | Right Hand |
| Square Size | 3.4 mm |
| Standards | DIN 2184-2 |
| System Of Measurement | Metric |
| Tap Chamfer | Modified Bottoming, Semi Bottoming |
| Tap Finish | Bright |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN 2184-2 |
| Tap Style | Spiral Flute |
| Tap Thread Size | M4 x 0.7 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 7 mm |
| Thread Limit | D3, D4 |
| Thread Limit/class Of Fit | D3, D4 |
| Thread Pitch | 0.7 mm |
| Thread Size | M4 x 0.7 |
| Thread Standard | Metric Coarse |
| Usable Length | 0.65" |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 4.5 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Thread Size | Thread Direction | Thread Limit | Overall Length | Tap Finish | 75% Thread Drill Size | Tap Material | Coolant Fed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A2340876-UNF0 | #0-80 | Right Hand | H1 | 41.3 mm | TiCN | 1.2 mm | High Speed Steel | Non Coolant Through | €117.00 | |
 |
A2340806-UNF0 | #0-80 | Right Hand | H1 | 41.3 mm | TiCN | 1.2 mm | High Speed Steel | Non Coolant Through | €103.06 | |
 |
224101-UNJC10 | #10-24 | Right Hand | 3B | 70 mm | Bright | #25 | High Speed Steel | Non Coolant Through | €132.77 | |
 |
224164-UNC10 | #10-24 | Right Hand | H2, H3 | 70 mm | Bright | #25 | High Speed Steel | Non Coolant Through | €82.98 | |
 |
22416-UNC10 | #10-24 | Right Hand | H3, H4 | 70 mm | Bright | #25 | High Speed Steel | Non Coolant Through | €68.63 | |
 |
224102-UNC10 | #10-24 | Right Hand | H3, H4 | 70 mm | Bright | #25 | High Speed Steel | Non Coolant Through | €68.63 | |
 |
P22509-UNC10 | #10-24 | Right Hand | H2, H3 | 70 mm | - | #25 | High Speed Steel | Non Coolant Through | €50.64 |
