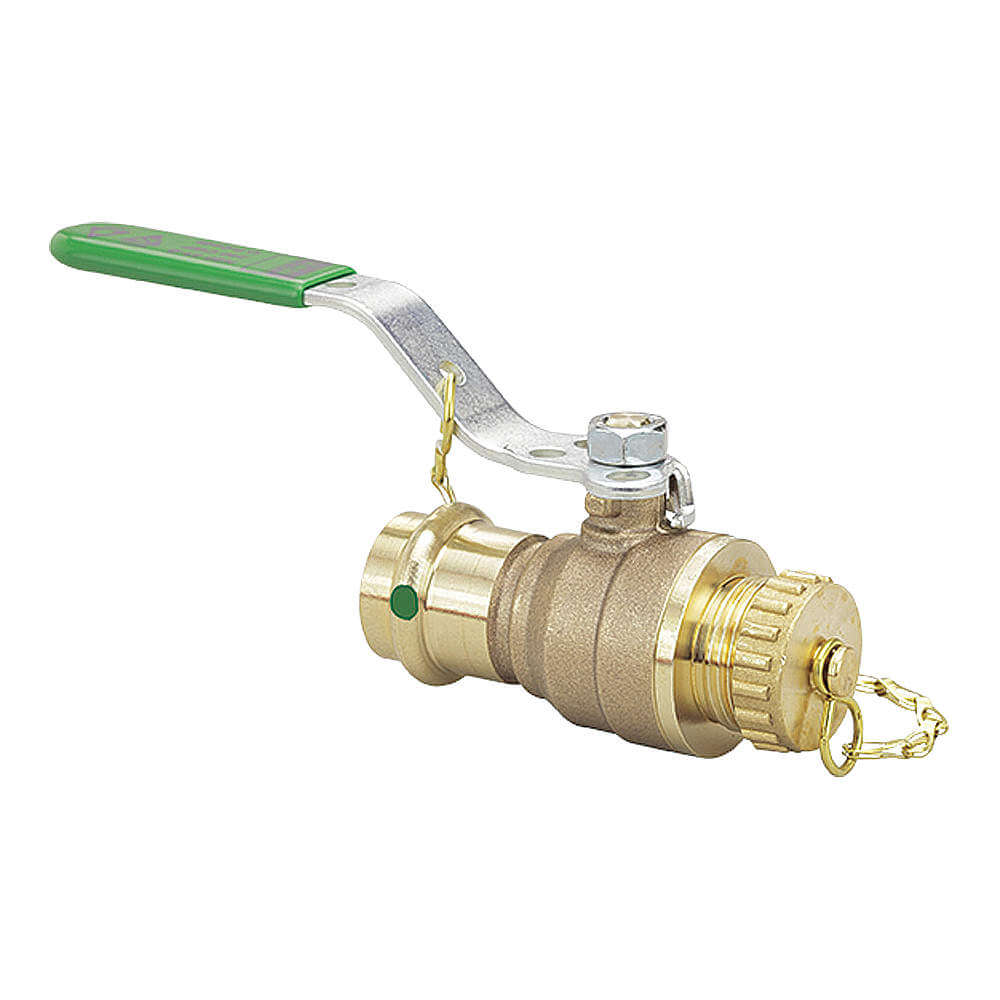

VIEGA PROPRESS 79980 Propress Zero Lead Ball Valve 1 x 1
Item: AF7FKTModel: 79980Cross Ref: 20XW60
7 In Stock
Ships within 2 days via
13.00% off
€91.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Certified | Not Rated |
| Ball Material | Stainless Steel |
| Ball Material Grade | Grade 316 |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Bronze |
| Body Seal Material | EPDM |
| Body Style | Inline |
| Connection Gender Side 2 | Female |
| Connection Size-side 1 | 1" |
| Connection Size-side 2 | 1" |
| Connection Type | Press x FPT |
| Connection Type-side 1 | Press |
| Connection Type-side 2 | NPT |
| For Media | Potable Water |
| Handle | Locking Lever |
| Handle Color | Green |
| Handle Finish | Zinc Plated |
| Handle Height | 2.46" |
| Handle Length | 5 3/4" |
| Handle Material | Metal |
| Handle Type | Lockable Lever |
| Material | Bronze |
| Max. Pressure | 250 psi |
| Max. Pressure (cwp) | 200 psi |
| Max. Pressure-combustible Gas | Not Rated |
| Max. Pressure-steam | Not Rated |
| Max. Steam Pressure | 15 psi |
| Media Temp. | 0°F to 250°F |
| Nominal Valve Size | 1" |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Overall Length | 3.56" |
| Pipe Size | 1" x 1" |
| Port | Full |
| Port Type | Full Port |
| Product Datasheet | viega-propress-79970.pdf |
| Seal Material | EPDM |
| Seat Material | PTFE |
| Size | 1" |
| Stem Material | Brass |
| Stem Type | Blowout Resistant |
| Temp. | 0°F to +250°F |
| Tube Size | 1" |
| Vacuum Service Rating | -29.2 in. hg |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | Propress Series |
| Valve Structure | Ball |
| Valve Ways | 2-Way |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 14 |
| Ship length (cm) | 36.98 |
| Ship width (cm) | 23.98 |
| HS code | 8481801085 |
| Country of Origin | DE |
Product Details:
- Sub-Brand: VIEGA ZERO LEAD
