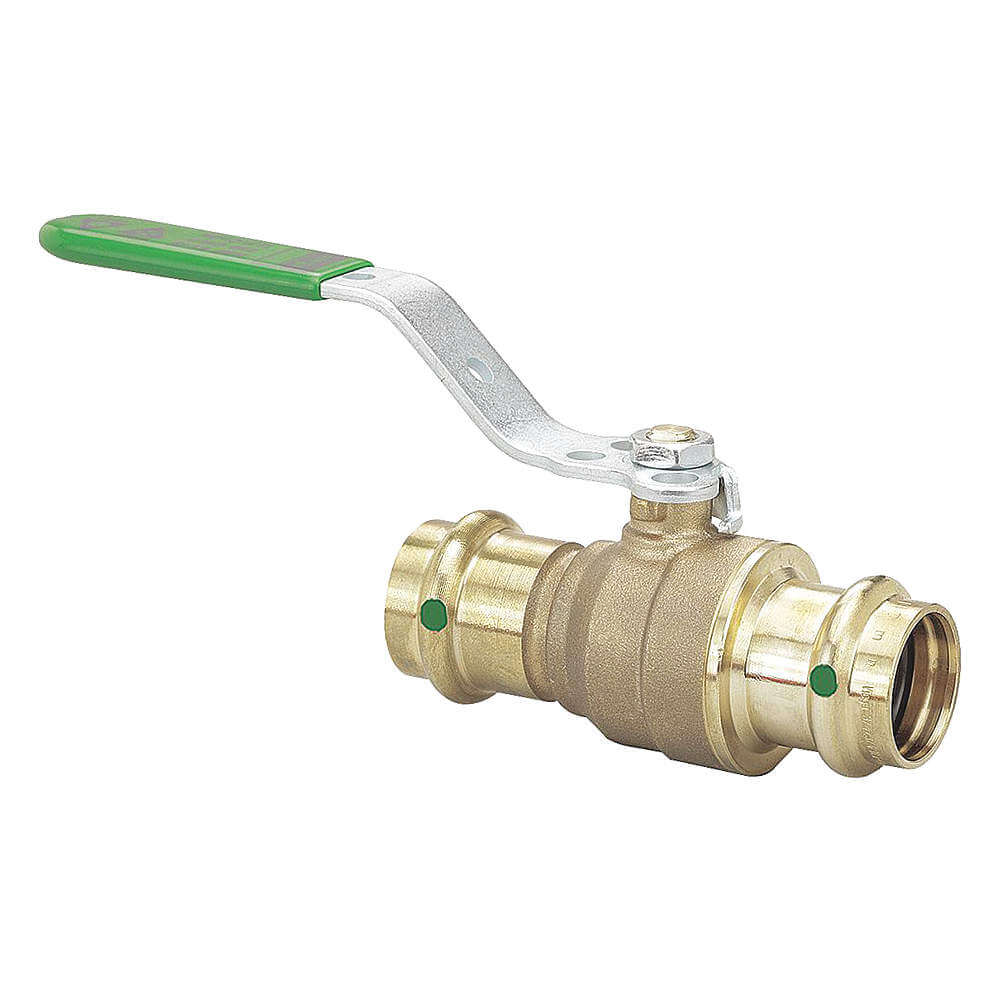

VIEGA PROPRESS 79935 Propress Zero Lead Ball Valve 1-1/4
Item: AF7FKKModel: 79935Cross Ref: 20XW49
7 In Stock
Ships within 2 days via
€137.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Certified | Not Rated |
| Ball Material | Stainless Steel |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Bronze |
| Body Style | Inline |
| Connection Size-side 1 | 1 1/4" |
| Connection Size-side 2 | 1 1/4" |
| Connection Type | Press x Press |
| Connection Type-side 1 | Press |
| Connection Type-side 2 | Press |
| For Media | Potable Water |
| Handle | Lever |
| Handle Color | Green |
| Handle Finish | Zinc Plated |
| Handle Height | 2.67" |
| Handle Length | 5 3/4" |
| Handle Material | Metal |
| Handle Type | Lockable Lever |
| Max. Pressure | 250 psi |
| Max. Pressure (cwp) | 200 psi |
| Max. Pressure-combustible Gas | Not Rated |
| Max. Pressure-steam | Not Rated |
| Max. Steam Pressure | 15 psi |
| Media Temp. | 0°F to 250°F |
| Nominal Valve Size | 1 1/4" |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Overall Length | 4.32" |
| Pipe Size | 1 1/4" x 1 1/4" |
| Port | Full |
| Product Datasheet | viega-propress-79920.pdf |
| Seal Material | EPDM |
| Seat Material | PTFE |
| Stem Material | Brass |
| Stem Type | Blowout Resistant |
| Temp. | 0°F to +250°F |
| Tube Size | 1 1/4" |
| Vacuum Service Rating | -29.2 in. hg |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | Propress Series |
| Valve Structure | Ball |
| Valve Ways | 2-Way |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.7 |
| Ship height (cm) | 9.98 |
| Ship length (cm) | 36.98 |
| Ship width (cm) | 23.98 |
| HS code | 8481801085 |
Product Details:
- Sub-Brand: VIEGA ZERO LEAD
Documentation:
Product Variants
| Product | Model | Max. Pressure | Handle | Overall Length | Pipe Size | Body Style | Valve Structure | Tube Size | Body Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
79920 | 250 psi | Lever | 3.14" | 1/2" x 1/2" | Inline | Ball | 1/2" | Bronze | €45.52 | |
|
79925 | 250 psi | Lever | 3.52" | 3/4" x 3/4" | Inline | Ball | 3/4" | Bronze | €62.27 | |
 |
79930 | 250 psi | Lever | 3.89" | 1" x 1" | Inline | Ball | 1" | Bronze | €80.43 | |
 |
79940 | 200 psi | Locking Lever | 5.54" | 1 1/2" | One Way | Two Piece | - | Bronze | €184.61 |
