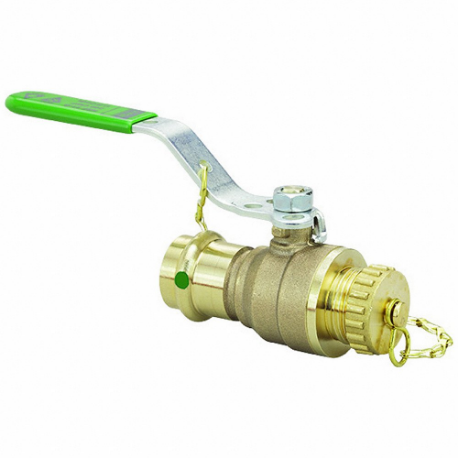

VIEGA PROPRESS 79875 Ball Valve, 1/2 Inch Tube, 300 PSI, 0-250 Deg F, Locking Lever Handle, Press
Item: CU7YKEModel: 79875Cross Ref: 794CN6
7 In Stock
Ships within 2 days via
10.00% off
€88.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Ball Material | Stainless Steel |
| Ball Port Style | Full Port |
| Body Material | Bronze |
| Body Seal Material | EPDM |
| Body Style | Two Way |
| Connection Size - Side 1 | 1/2" |
| Connection Size - Side 2 | 3/4" |
| Connection Type | Press x NH Thread |
| Connection Type - Side 1 | Press |
| Connection Type - Side 2 | Press |
| Features | Hose Connection, Press Connection |
| For Media | Potable Water |
| Handle | Locking Lever |
| Handle Color | Green |
| Handle Height | 1.97" |
| Handle Length | 4.57" |
| Handle Material | Metal |
| Handle Type | Locking Lever |
| Hose I.d. | 3/4" |
| Max. Pressure | 300 psi |
| Max. Pressure (combustible Gas) | Not Rated |
| Max. Pressure (cwp) | 300 psi |
| Max. Pressure (steam) | Not Rated |
| Max. Steam Pressure | 5 psi, 15 psi |
| Media Temp. Range | 0°F to 250°F |
| Nominal Valve Size | 1/2" |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Overall Length | 2.92" |
| Port | Full |
| Product Datasheet | viega-propress-79875.pdf |
| Seal Material | EPDM |
| Seat Material | PTFE |
| Stem Material | Brass |
| Stem Type | Blowout Resistant |
| Temp. Range | 0°F to +250°F |
| Tube Size | 1/2" |
| Vacuum Service Rating | -29.2 in. hg |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Series | Propress Series |
| Valve Structure | Two Piece |
| Valve Ways | 2-Way |
| Vented Ball Valve | Non Vented |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
