VIBCO 50-2LS Pneumatic Vibrator 1200 Vpm
Get it by Tuesday, Dec 23
10.00% off
€917.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pneumatic Vibrator |
| Air Flow Rate | 17 CFM @ 40 psi, 26 CFM @ 60 psi, 31 CFM @ 80 psi |
| Application | Chemical, Concrete Products, For Mining, Foundry, Plastics, Steel And Paper Industries |
| Bin Weight Capacity | 4000 lbs. to 10000 lbs. |
| Bin Weight Capacity | 10,000 lb. |
| Cfm @ 60 Psi | 26 |
| Cfm @ 80 Psi | 31 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Inlet Connection Size | 1/4" |
| Inlet Connection Type | NPT |
| Inlet Port | 1/4" NPT |
| Inlet Port Size | 1/4" |
| Maximum Vibration Speed | 1500 VPM |
| Mount Plate Included | No |
| Mount Plate Required | Yes |
| Mount Type | Bolt On |
| Mounting | Foot |
| Mounting Plate | Sold Separately |
| Overall Height | 9.41" |
| Overall Length | 9.02" |
| Overall Width | 3 1/2" |
| Pneumatic Vibrator Type | Piston |
| Series | 50 Series |
| Speed @ 60 Psi | 1200 VPM |
| Speed @ 80 Psi | 1500 VPM |
| Vibration Speeds @ Psi | 1200 VPM @ 60 psi, 1500 VPM @ 80 psi, 950 VPM @ 40 psi |
| Vibrator Type | Piston |
| Weight | 26 lbs. |
Shipping Info:
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 23.81 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 8.89 |
| HS code | 8479899895 |
| Country of Origin | US |
Product Variants
| Product | Model | Bin Weight Capacity | Overall Length | Overall Width | Overall Height | Speed @ 60 Psi | Speed @ 80 Psi | Force Rating | Vibrator Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

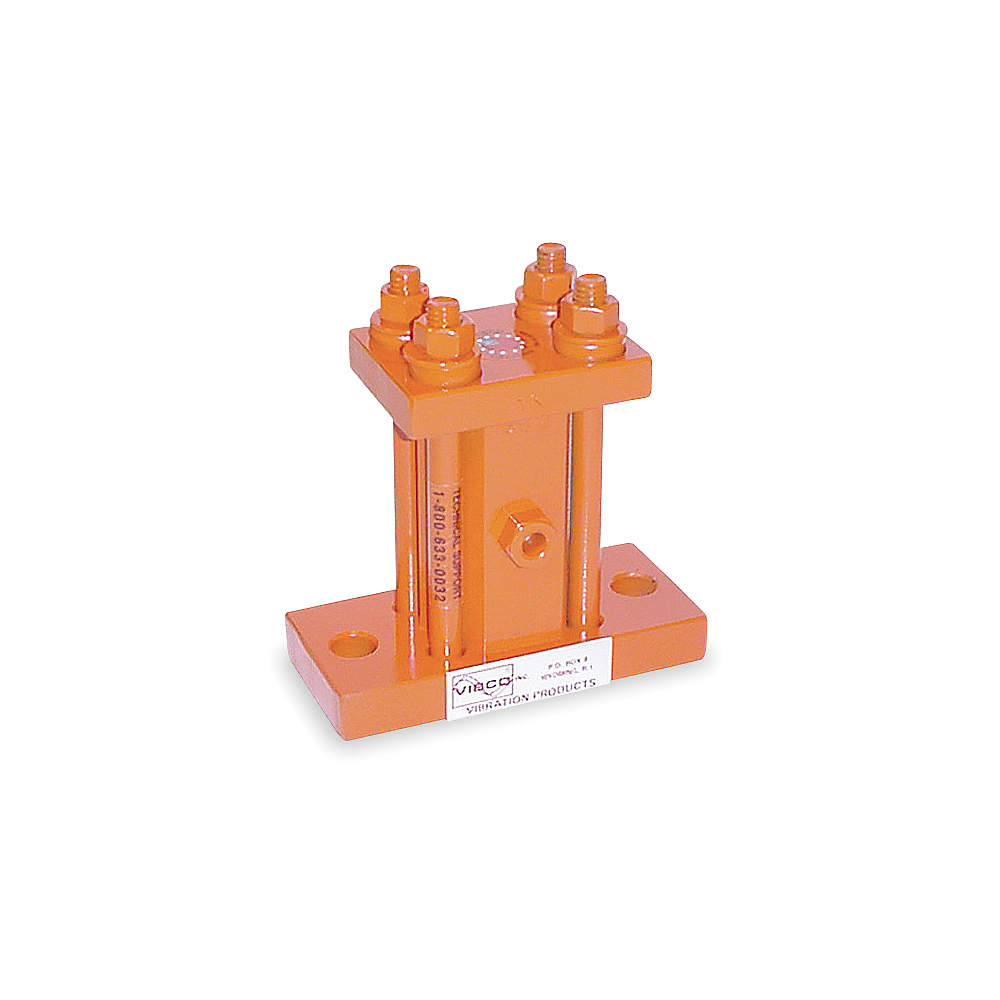

50-1 | 200 lbs. to 400 lbs. | 4.53" | 2.01" | 4.57" | 9000 VPM | 11000 VPM | 242 lbs. | Piston | €406.23 | |
 |

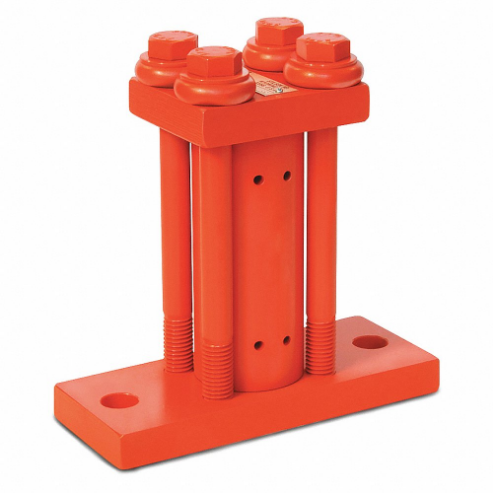

50-1-1/2 | 1000 lbs. to 4000 lbs. | 7.52" | 2.99" | 7.95" | 4000 VPM | 5200 VPM | 585 lbs. | Piston | €593.11 | |
|
50-1-1/2-EM | 1000 lbs. to 4000 lbs. | 7.52" | 3.03" | 7.95" | 4000 VPM | 5200 VPM | - | Piston | €728.15 | |
|
50-1-1/2S | 400 lbs. to 1000 lbs. | 7.52" | 3.03" | 7.95" | 2400 VPM | 3200 VPM | - | Piston | €551.13 | |
|
50-1-1/2S-EM | 400 lbs. to 1000 lbs. | 7.52" | 3.03" | 7.95" | 2400 VPM | 3200 VPM | - | Piston | €779.41 | |
|
50-1-1/4 | 400 lbs. to 1000 lbs. | 6.02" | 2 13/25" | 6 1/2" | 5500 VPM | 7000 VPM | 325 lbs. | Piston | €564.29 | |
|
50-1-1/4-EM | 400 lbs. to 1000 lbs. | 6.02" | 2 13/25" | 6.42" | 5500 VPM | 7000 VPM | - | Piston | €794.06 |
