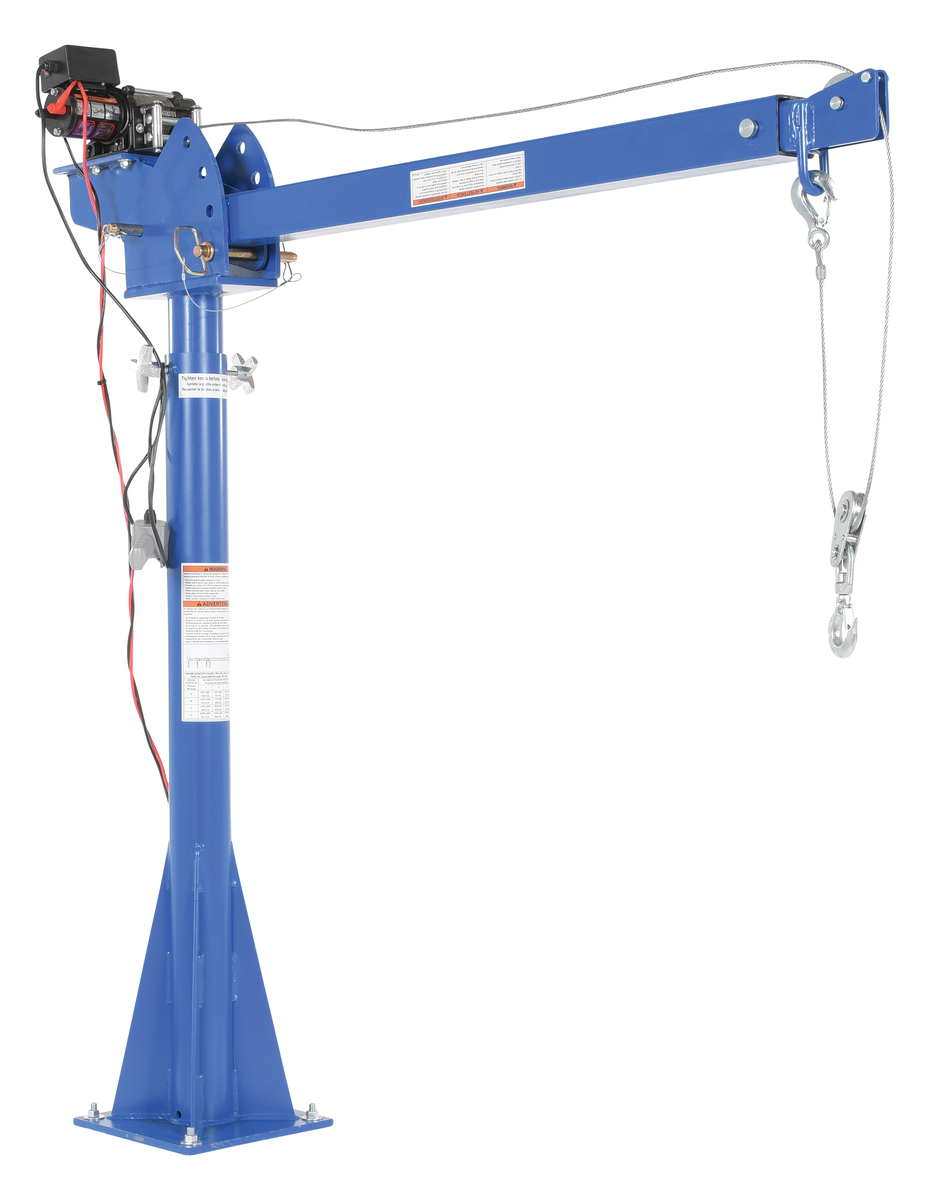

VESTIL WTJ-20-4-DC Steel DC Powered Jib Crane, 4-7 ft Boom, 2000 lb Capacity, Blue
Get it by Tuesday, Aug 25
5.00% off
€4,252.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Davit Crane |
| Assembled Depth | 63 13/16" |
| Assembled Height | 68 13/16" |
| Assembled Width | 13 1/2" |
| Assembly | Assembly Required |
| Base Height | 18 1/2" |
| Base Length | 12" |
| Base Width | 12" |
| Body Finish | Powder Coating |
| Body Material | Steel |
| Boom Adjustment Increments | 12" |
| Boom Length | 51.3" to 87.3" |
| Boom Length Adjustability | Expandable |
| Boom Weight | 255 lbs. |
| Cable Dia. | 0.188" |
| Cable Length | 46 ft. |
| Capacity | 2000 lbs. |
| Color | Blue |
| Color Family | Blue |
| Compatible Base Manufacturer Part Number | Not Applicable |
| Control Type | Wired Control |
| Depth | 63 4/5" |
| Extended Capacity | 600 lbs. |
| Extended Length | 94 1/2" |
| Extended Max. Hook Height | 106 1/2" |
| Extended Min. Hook Height | 59 1/2" |
| Features | Powered Cable Winch Makes Lifting And Maneuvering Easy |
| Finish | Powder Coating |
| Height | 68.812" |
| Height Under Boom | 59 1/2" |
| Included Base Type | Pedestal |
| Included Components | 3/16 Inx 46 Ft Steel Cable, Controller, Pedestal Mount Base, Winch |
| Length | 63.812" |
| Lift Height | 4.3 ft. to 7.3 ft. |
| Mast Dia. | 4" |
| Mast Weight | Not Applicable |
| Material | Steel |
| Max. Adjustable Boom Length | 87.3" |
| Max. Extended Arm Load Capacity | 600 lbs. |
| Max. Lifting Height | 7.3 ft. |
| Max. Load Capacity | 2000 lbs. |
| Min. Adjustable Boom Length | 51.3" |
| Min. Lifting Height | 4.3 ft. |
| Mobility | Stationary |
| Motor Hp | 1 hp |
| Mounting Plate Length | 12" |
| Mounting Plate Width | 12" |
| No. Of Boom Length Positions | 4 |
| Operating Voltage | 12V DC |
| Overall Depth | 63.8" |
| Overall Fixed Boom Length | Not Applicable |
| Overall Height | 68 4/5" |
| Overall Weight | 255 lbs. |
| Overall Width | 13 1/2" |
| Power Source | Electric |
| Power Type | DC |
| Retracted Capacity | 1450 lbs. |
| Retracted Length | 51 1/4" |
| Retracted Max. Hook Height | 87 1/4" |
| Retracted Min. Hook Height | 51 1/4" |
| Rotation | 360° |
| Swivel Angle | 360° |
| Type | Standard |
| Voltage | 12V DC |
| Width | 13 1/2" |
| Winch Type | Electric |
Shipping Info:
| Ship weight (kg) | 117 |
| Ship height (cm) | 45.72 |
| Ship length (cm) | 170.18 |
| Ship width (cm) | 76.2 |
| HS code | 8426910000 |
| Country of Origin | US |
Product Variants
| Product | Model | Overall Height | Depth | Assembled Width | Assembled Depth | Assembled Height | Height | Extended Length | Retracted Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

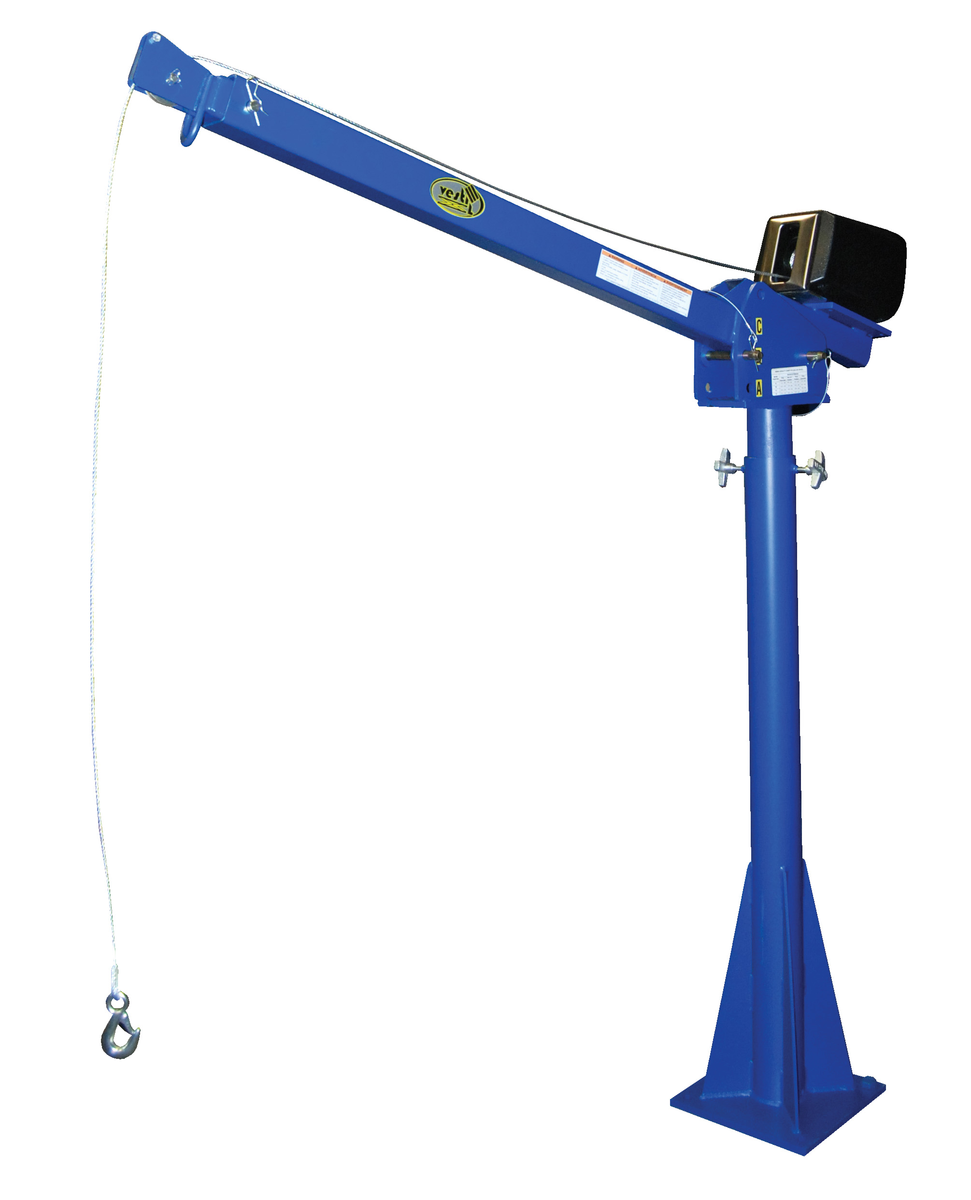

WTJ-20-4-AC | 70.1" | 65 2/5" | 12" | 65 3/8" | 70 1/16" | 70.062" | 94 1/2" | 51 1/4" | €6,030.63 | |
 |

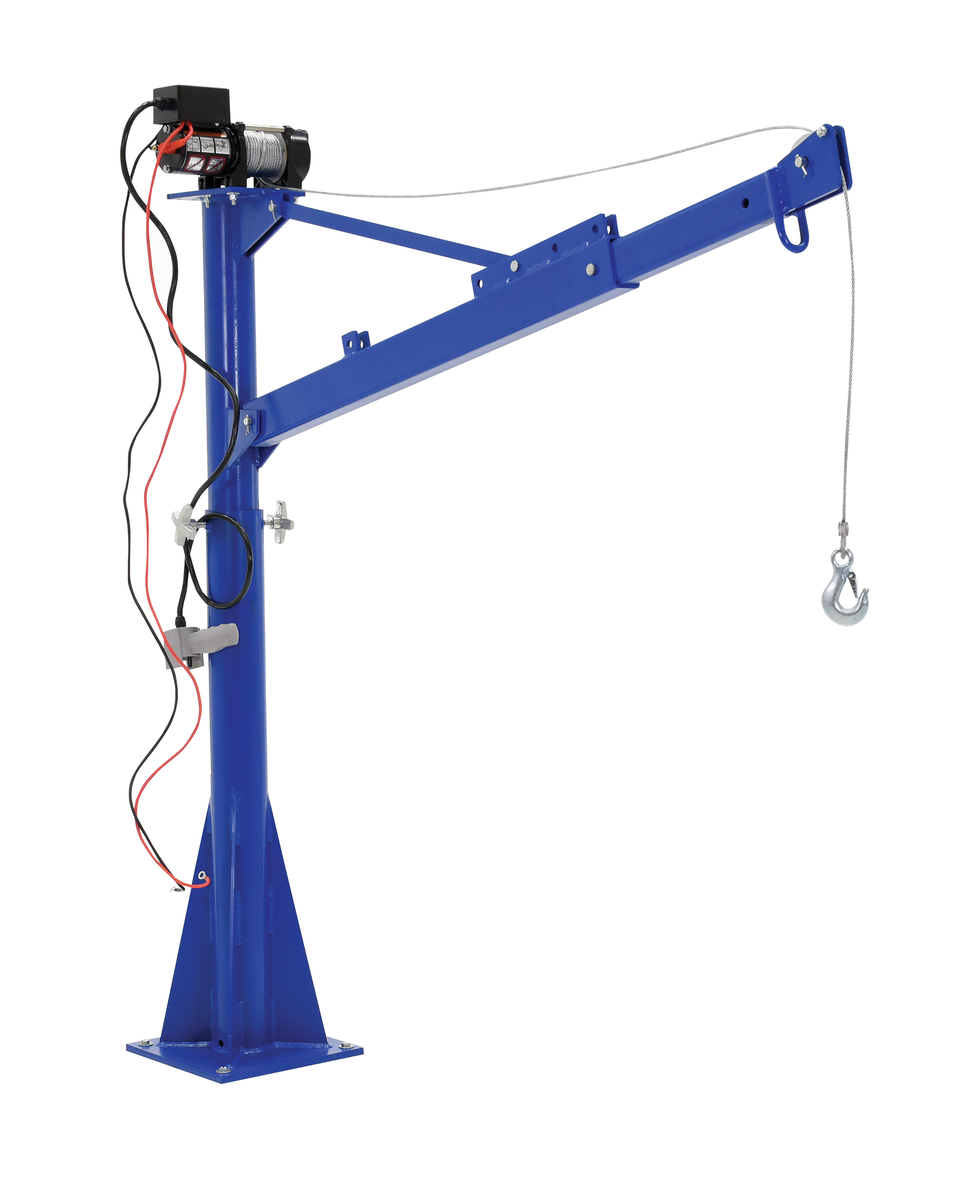

WTJ-E-15-3-DC | 65.7" | 51.1" | 13 1/2" | 51 1/16" | 65 11/16" | 65.687" | 66 3/4" | 43.13" | €3,428.17 | |
 |

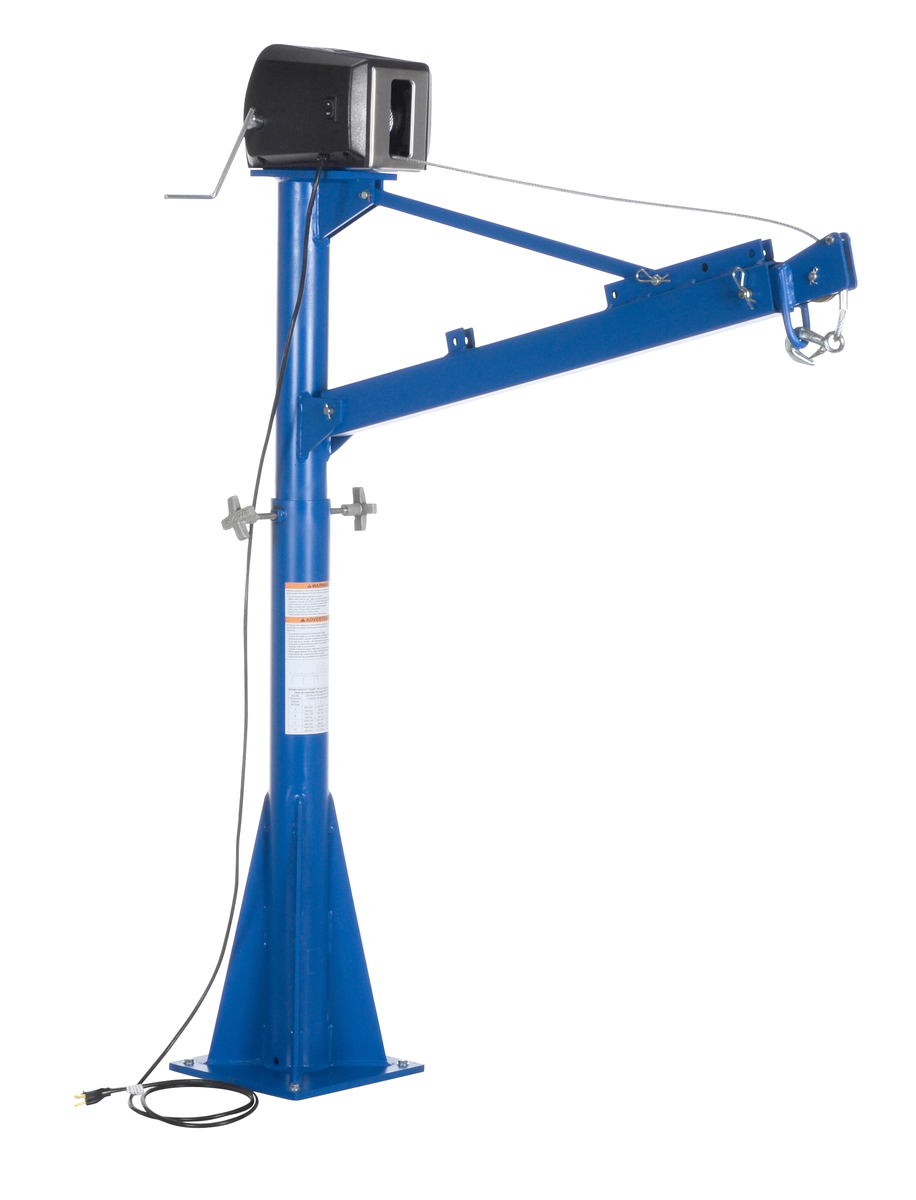

WTJ-E-15-3-AC | 66.9" | 51.1" | 12" | 51 1/16" | 66 15/16" | 66.937" | 66 3/4" | 43.13" | €4,372.06 | |
 |

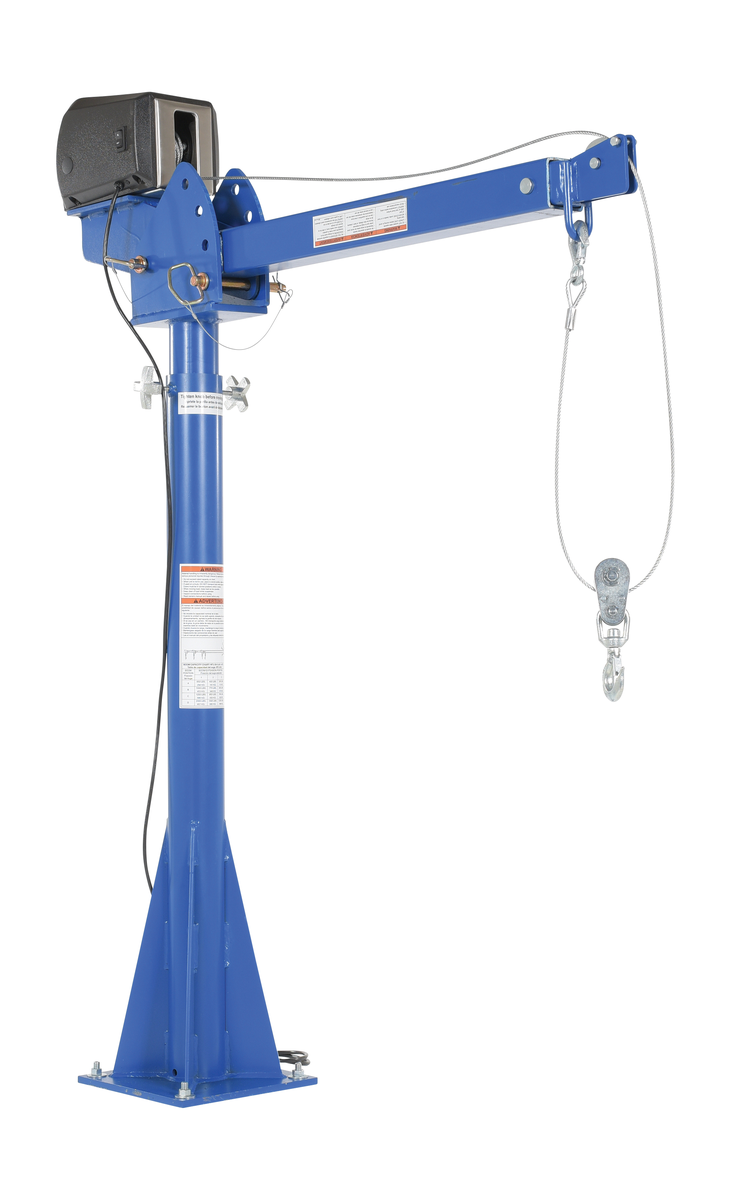

WTJ-20-3-AC | - | 40 3/25" | 12" | 53 3/8" | 70 1/16" | 70.062" | 96.13" | 39 1/4" | €4,222.15 | |
 |

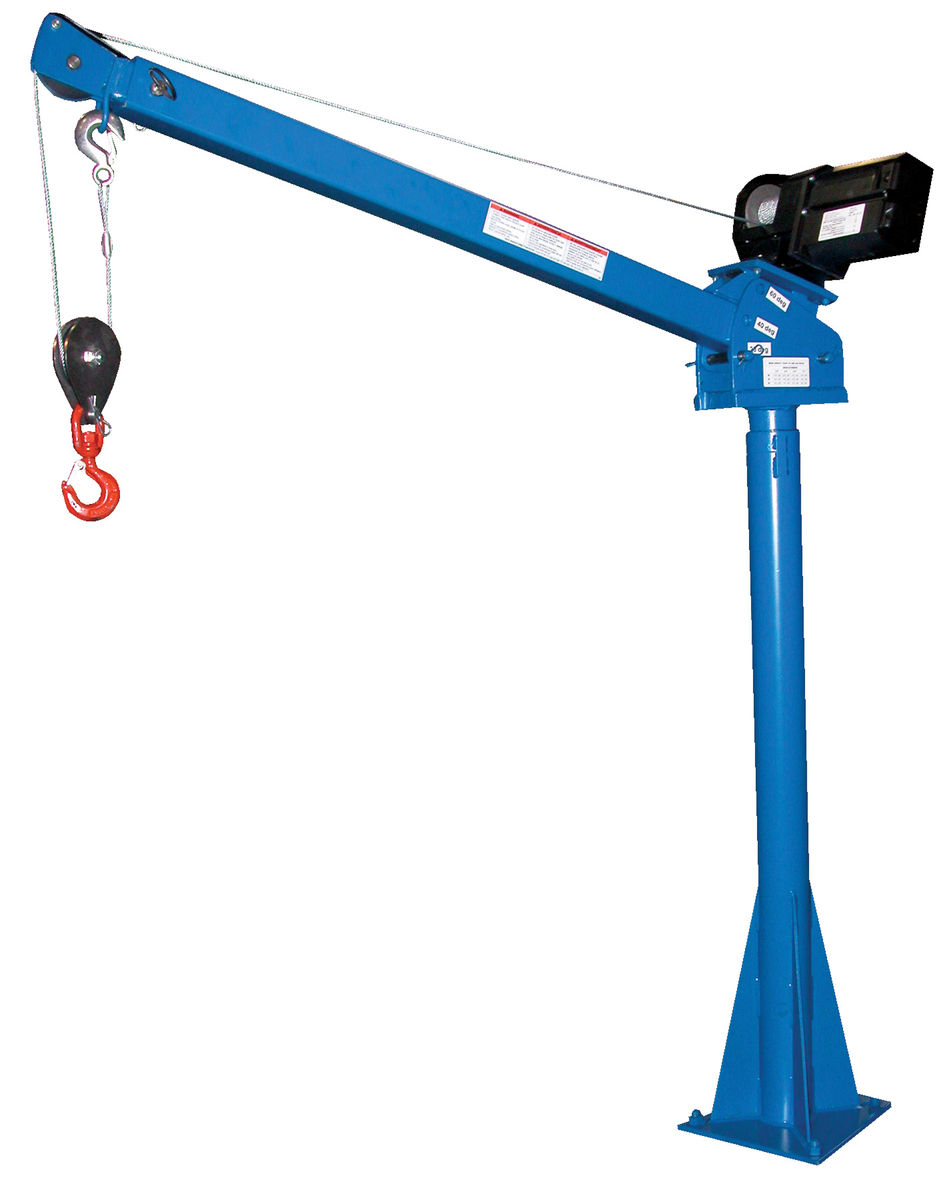

WTJ-20-3-DC | - | 51.812" | 13 1/2" | 51 13/16" | 68 13/16" | 68.812" | 96.13" | 39 1/4" | €3,401.48 | |
 |
WTJ-20-3-AC-CSA | - | 63 1/2" | 18 11/16" | 63 1/2" | 73" | 73" | 96.13" | 39 1/4" | €4,446.57 | |
 |
WTJ-20-4-AC-CSA | - | 87 1/2" | 18 11/16" | 87 1/2" | 73" | 73" | 94 1/2" | 51 1/4" | €4,598.06 |
