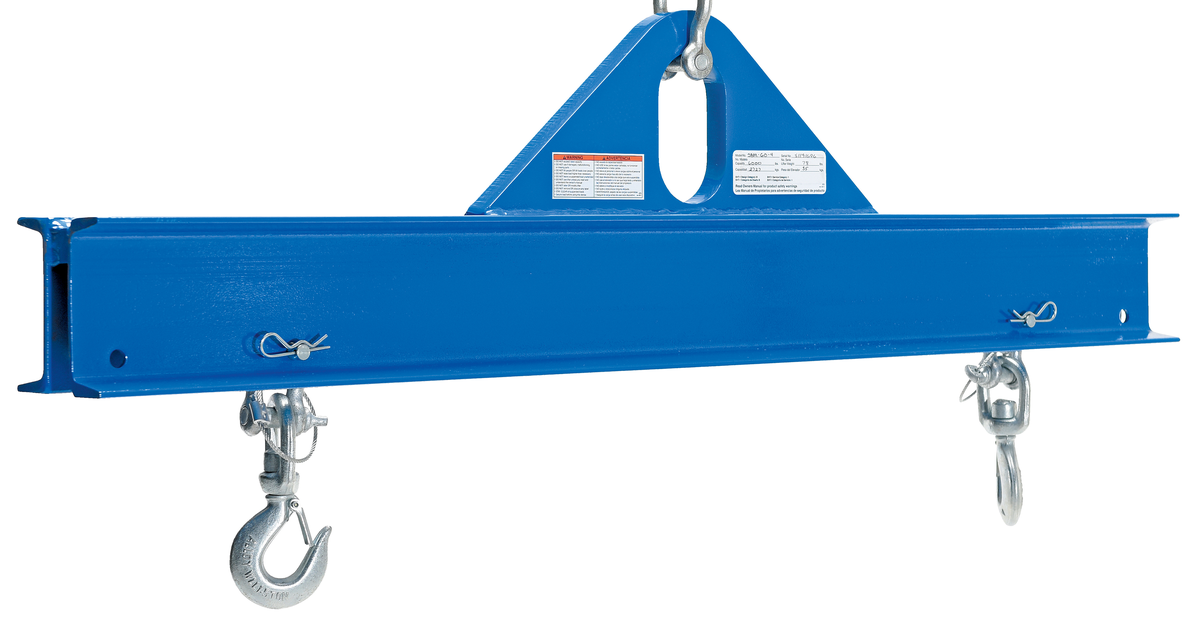

VESTIL SBM-60-4 Steel Economy Spreader Beam, 48 Inch Length, 6000 lb Capacity, Blue
Get it by Tuesday, Aug 18
5.00% off
€1,179.92 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Adjustable Lifting Beam |
| Assembled Depth | 48" |
| Assembled Height | 18 3/16" |
| Assembled Width | 4 1/2" |
| Assembly | Assembly Required |
| Attachment Method | Chain Hoist |
| Attachment Type | Chain Hoist |
| Bail Height | 5" |
| Bail Thickness | 1" |
| Bail Width | 3" |
| Batteries Included | No |
| Beam Type | Spreader Beam |
| Certification Indicator | D |
| Color | Blue |
| Color Family | Blue |
| Contains Hazardous Material Or Is Aerosol | No |
| Features | Designed To Lift And Move Uneven And Awkward Loads |
| Head Room | 15 3/4" |
| Height | 18 3/16" , 19 3/4" |
| Included | Includes (2) 1 1/2 Ton. Swivel Hooks, Spreader Adjusts 33" To 45" |
| Length | 48" |
| Load Capacity | 6000 lbs. |
| Load Weight Capacity | 6000 lbs. |
| Material | Steel |
| Max. Spread | 45" |
| Measuring Units | EACH |
| Min. Spread | 33" |
| No. Of Swivel Hook | 2 |
| Origin Criterion | B |
| Product Datasheet | vestil-rp-sbm-60-4.pdf |
| Swivel Hook Capacity | 1.5 ton. |
| Usable Bail Width | 3" |
| Width | 4 1/2" |
Shipping Info:
| Ship weight (kg) | 65.7 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 91.44 |
| Ship width (cm) | 101.6 |
| HS code | 8431491090 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Bail Thickness | Assembled Depth | Assembled Width | Height | Assembled Height | Head Room | Swivel Hook Capacity | Max. Spread | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SBM-10-10 | - | 120" | 3 15/16" | 16 1/4" | 16 1/4" | 12 1/2" | - | - | €734.99 | |
 |

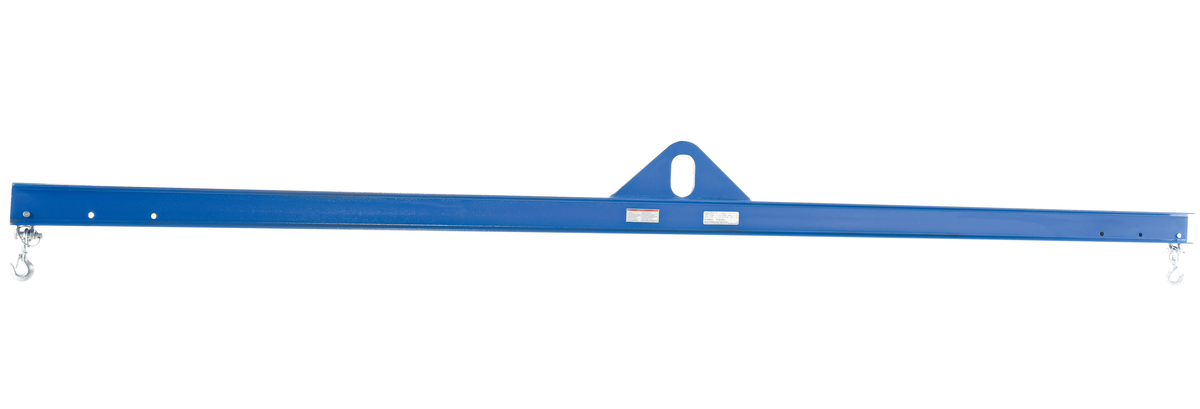

SBM-10-12 | 3/4" | 144" | 3 15/16" | 16 1/4" | 16 1/4" | 12 1/2" | 0.5 ton. | 141" | €1,000.12 | |
 |

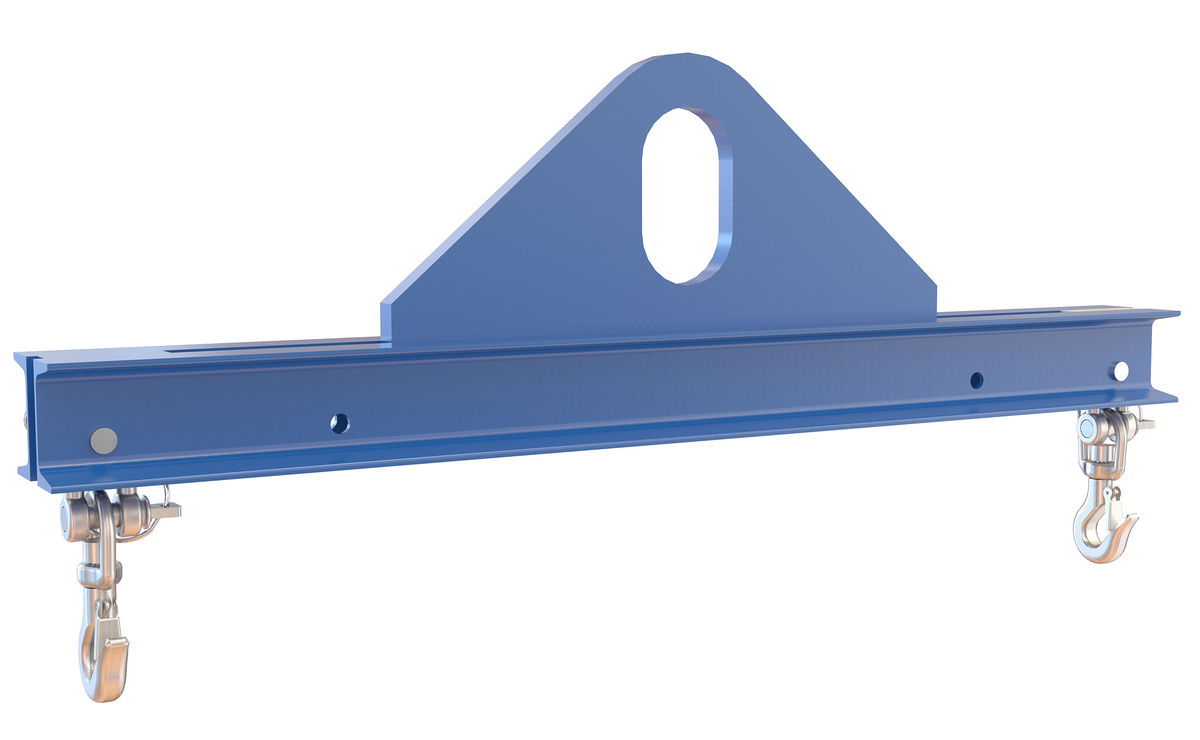

SBM-10-3 | 3/4" | 36" | 3 9/16" | 16 1/4" | 16 1/4" | 12 1/2" | 0.5 ton. | 33" | €506.59 | |
 |
SBM-10-4 | 3/4" | 48" | 3 9/16" | 16 1/4" | 16 1/4" | 12 1/2" | 0.5 ton. | 45" | €530.13 | |
 |

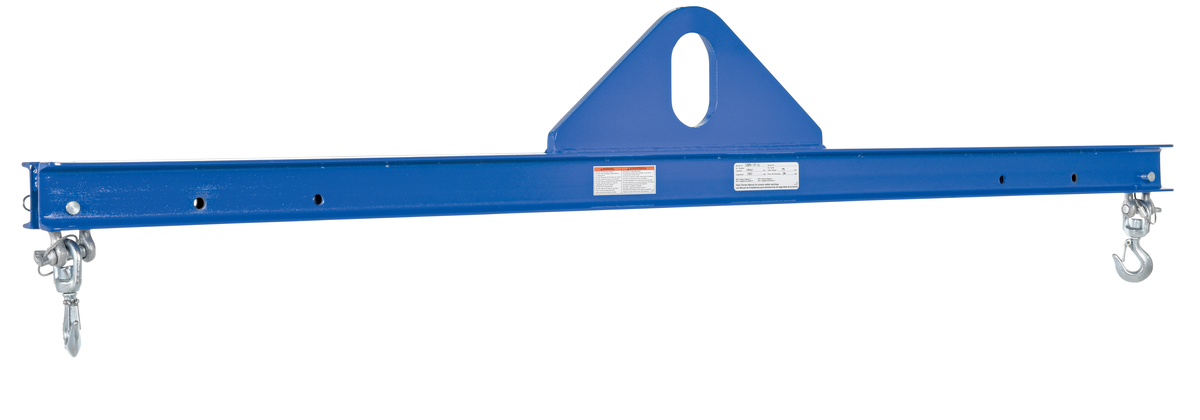

SBM-10-6 | 3/4" | 72" | 3 9/16" | 16.312" | 16 1/4" | 12 1/2" | 0.5 ton. | 69" | €542.32 | |
 |
SBM-10-8 | 3/4" | 96" | 3 9/16" | 12 1/2" | 16 1/4" | 12 1/2" | 0.5 ton. | 93" | €667.10 | |
 |

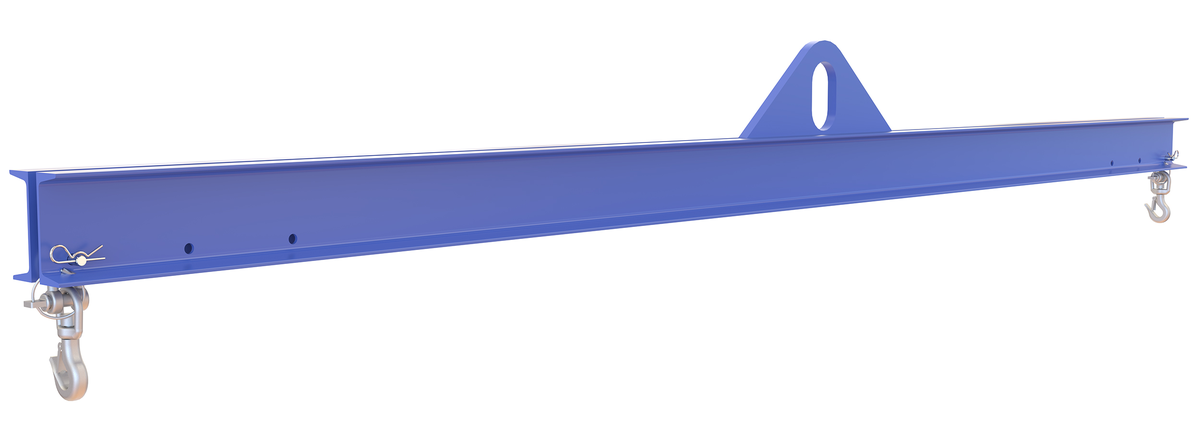

SBM-20-10 | 3/4" | 120" | 4 1/4" | 13.437" | 17 1/4" | 13 1/2" | 0.5 ton. | 117" | €843.03 |
