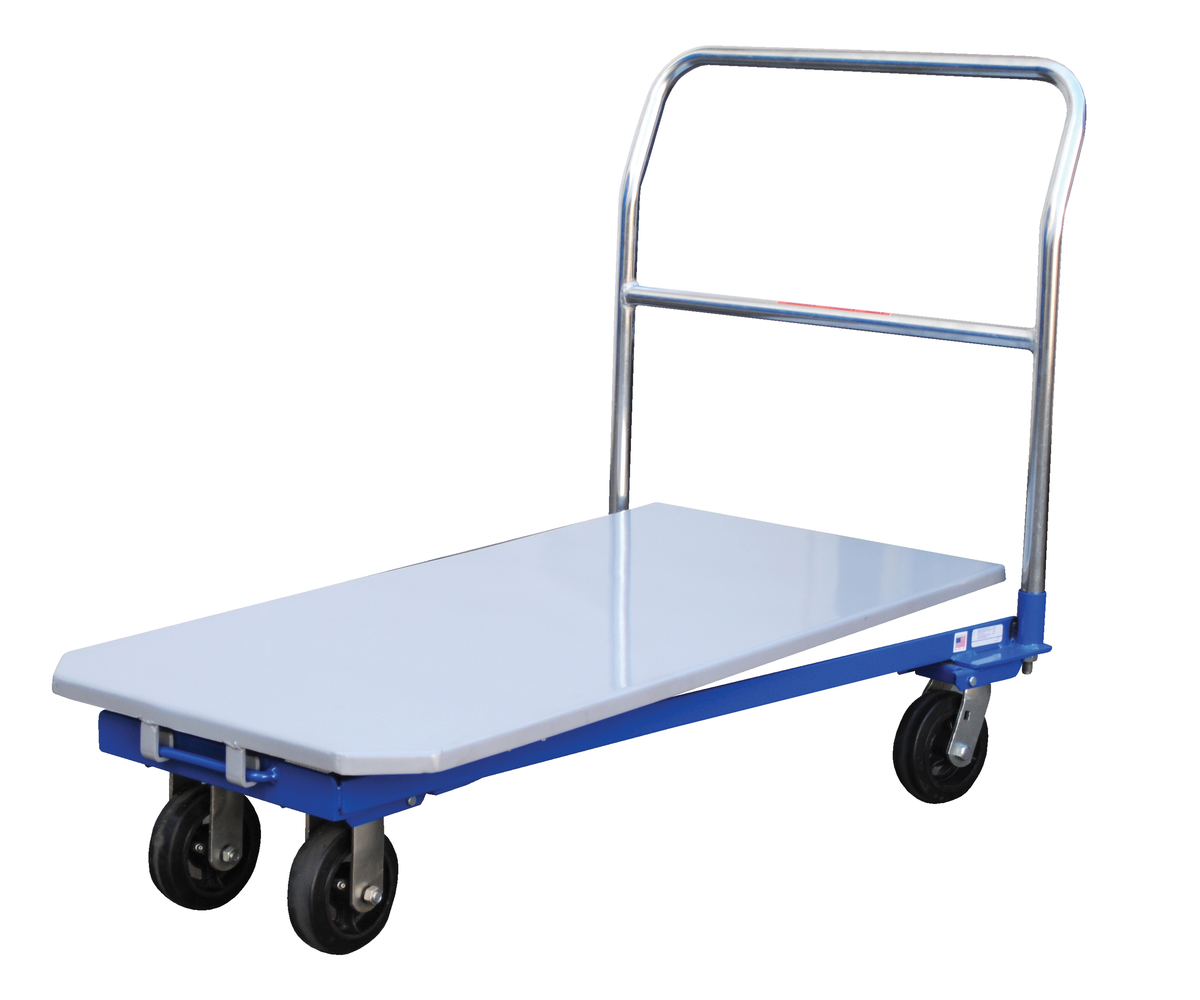

VESTIL NPCT Steel Nesting Platform Cart, 50-7/8 x 30-1/8 x 38-5/8 Inch, 1500 lb Capacity, Blue
Get it by Tuesday, Dec 23
€659.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Nesting Platform Truck |
| Additional Truck Added Length | 12" |
| Assembly | Assembly Required |
| Capacity | 1500 lbs. |
| Caster Dia. | 6" |
| Caster Material | Rubber |
| Caster Wheel Width | 2" |
| Color | Blue |
| Color Family | Blue |
| Deck Height | 11" |
| Deck Length | 48" |
| Deck Width | 24" |
| Front Caster Dia. | 6" |
| Height | 38 5/8" |
| Includes | (2) Rigid Casters 2" Width, And (2) Swivel Casters 2" Width |
| Length | 51" |
| Load Capacity | 1500 lbs. |
| Material | Steel |
| Max. Platform Height | 10 3/4" |
| Measuring Units | EACH |
| Number Of Batteries | 0 |
| Number Of Casters | 4 |
| Overall Height | 38.63" |
| Overall Length | 50 22/25" |
| Overall Width | 30.13" |
| Platform Height | 10 3/4" |
| Platform Length | 48" |
| Platform Material | Steel |
| Power Source | Manual |
| Product Datasheet | vestil-rp-npct.pdf |
| Rear Caster Dia. | 6" |
| Required Floor Space Length | 48" |
| Required Floor Space Width | 30" |
| Width | 30" |
Shipping Info:
| Ship weight (kg) | 72.9 |
| Ship height (cm) | 121.92 |
| Ship length (cm) | 121.92 |
| Ship width (cm) | 101.6 |
| HS code | 8716805090 |
| Country of Origin | US |
Standards and Approvals:
- OSHA
Frequently Asked Questions:
Q. How are nesting platform trucks installed?
A.
- Attach the casters on the bottom side of the frame and insert the caster mounting plates.
- Insert the carriage bolts through the bolt holes and secure them with lock nuts.
- Locate the spring in each spring cup.
- Join the deck to the frame.
- The 2 J-shaped hinge brackets engage the hinge bar attached to the front end of the frame.
- Slide the brackets into the bar and then slowly lower the deck.
- The top of the springs must seat into the spring cups on the underside of the deck.
- Insert the legs of the handle into the handle sockets of the frame.
- Attach each log of the handle to its socket with a hex nut and a lock washer.
Documentation:
