VESTIL HDD-36-7-S Steel Stationary Hydraulic Drum Dumper, 36 Inch Dump Height, 750 lb Capacity, Blue/Yellow
Get it by Thursday, Aug 27
5.00% off
€5,468.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Drum Dumper |
| Assembled Depth | 61 1/2" |
| Assembled Height | 60" |
| Assembled Width | 36" |
| Assembly | Assembled |
| Capacity | 750 lbs. |
| Chute Material | Steel |
| Chute Reach | 14" |
| Chute Size | 24" |
| Color Family | Blue, Yellow |
| Cord Length | 8 ft. |
| Cylinder Dia. | 2 1/2" |
| Cylinder Length | 18" |
| Depth | 61 1/2" |
| Dispense Height | 36" |
| Drum Material | Steel, Plastic, Fiber |
| Drum Rotation | 135 Deg. |
| Drum Securing Mechanism | Clamp |
| Dump Angle | 45° |
| Dump Angle | 45 Deg. |
| Dump Height | 36" |
| Electrical Connection | Power Cord |
| Features | Internal Pre Wired Heavy Duty Electric Motor Conveniently Dumps Drums |
| For Drum Capacity | 30 gal., 55 gal. |
| For Drum Material | Fiber, Metal, Plastic |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Hand Held Control Cord Length | 8 ft. |
| Height | 60" |
| Housing Material | Steel |
| Hp | 3/4 hp |
| Included Battery | No |
| Length | 61 1/2" |
| Level Height | 60" |
| Lowered Height | 60" |
| Material | Steel |
| Max. Dump Height | 36" |
| Measuring Units | EACH |
| Motor Style | 56 Frame |
| Operating Voltage | 115V AC |
| Overall Depth | 62" |
| Overall Height | 60" |
| Overall Width | 36" |
| Phase | 1 |
| Portability | Stationary |
| Power Source | Hydraulic |
| Raise Time | 42 sec. |
| Raised Height | 95 3/4" |
| Rotation Angle | 135° |
| Rotation Height | 96" |
| Rotation Height Clearance | 95 3/4" |
| Vertical Lift | 96" |
| Voltage | 115V |
| Weight Capacity | 750 lbs. |
| Width | 36" |
Shipping Info:
| Ship weight (kg) | 319.05 |
| Ship height (cm) | 160.02 |
| Ship length (cm) | 162.56 |
| Ship width (cm) | 101.6 |
| HS code | 8428900290 |
| Country of Origin | US |
Product Variants
| Product | Model | Power Source | Depth | Rotation Height | Dump Height | Overall Height | Assembled Height | Assembled Depth | Max. Dump Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HDD-36-10-S | Hydraulic | 61 1/2" | 96" | 36" | - | 60" | 61 1/2" | 36" | €7,088.69 | |
 |

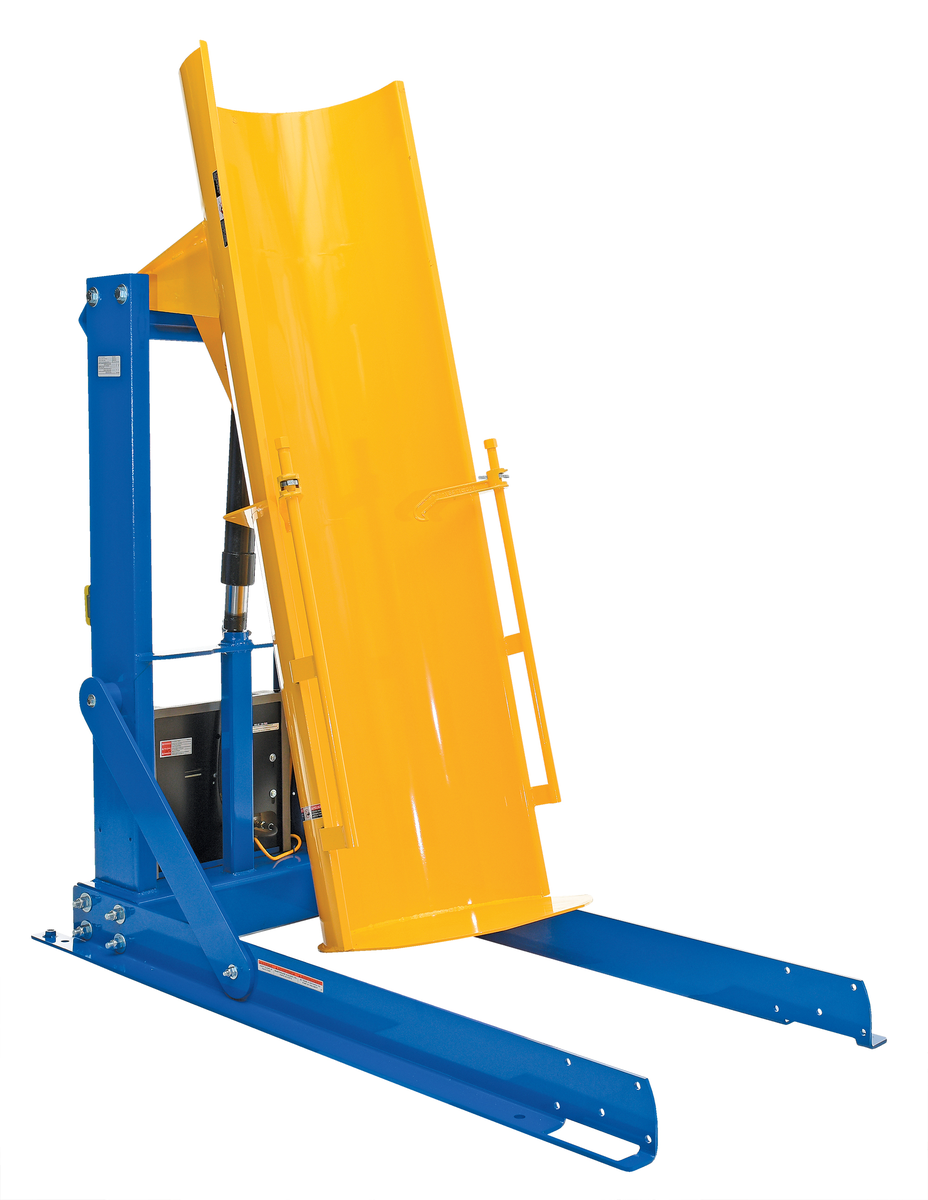

HDD-72-10-S | Hydraulic | 92" | 157" | 72" | 95" | 95 1/4" | 92" | 72" | €7,128.71 | |
 |

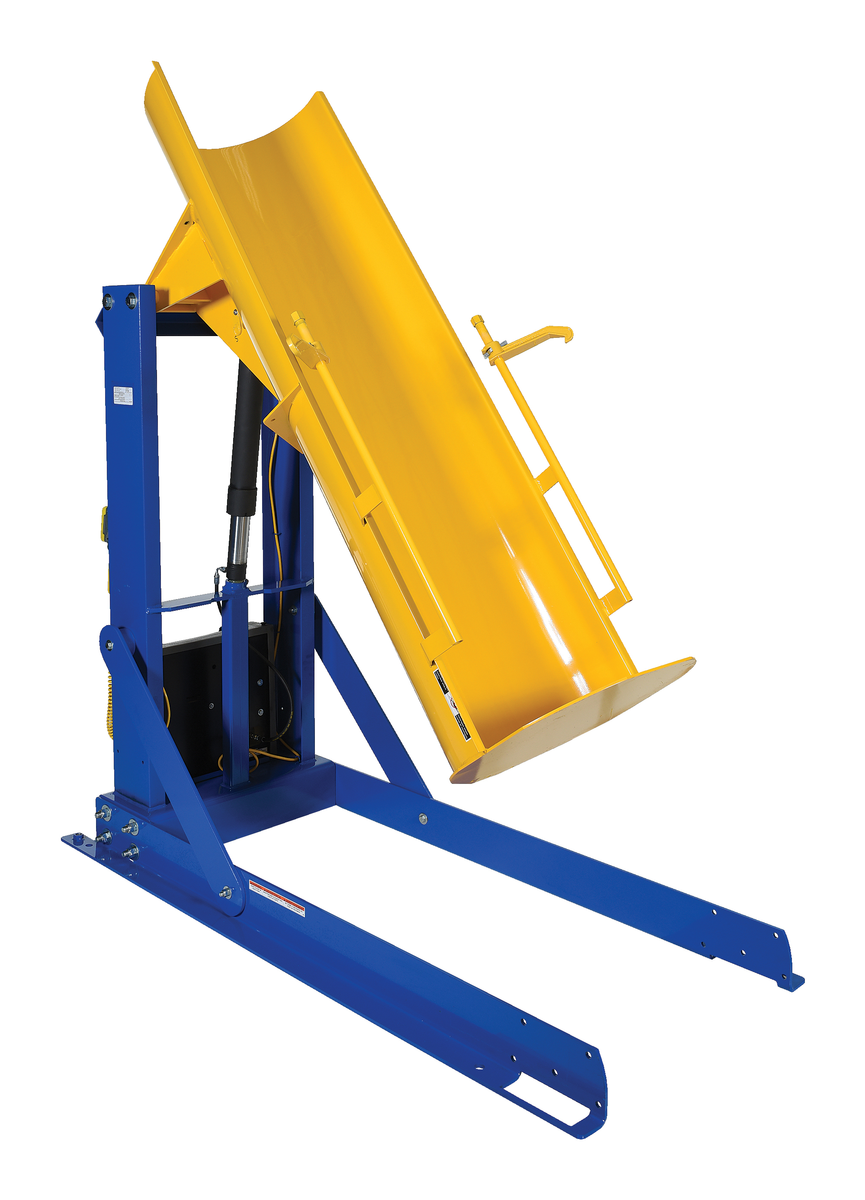

HDD-60-7-S | Electric Corded | 80" | 137" | 60" | 84" | 84" | 80" | 60" | €6,409.46 | |
 |
HDD-60-10-S | Hydraulic | 80" | 137" | 60" | 84" | 84" | 80" | 60" | €7,273.04 | |
 |
HDD-72-7-S | Hydraulic | 92" | 157" | 72" | 95" | 95 1/4" | 92" | 72" | €6,990.83 | |
 |

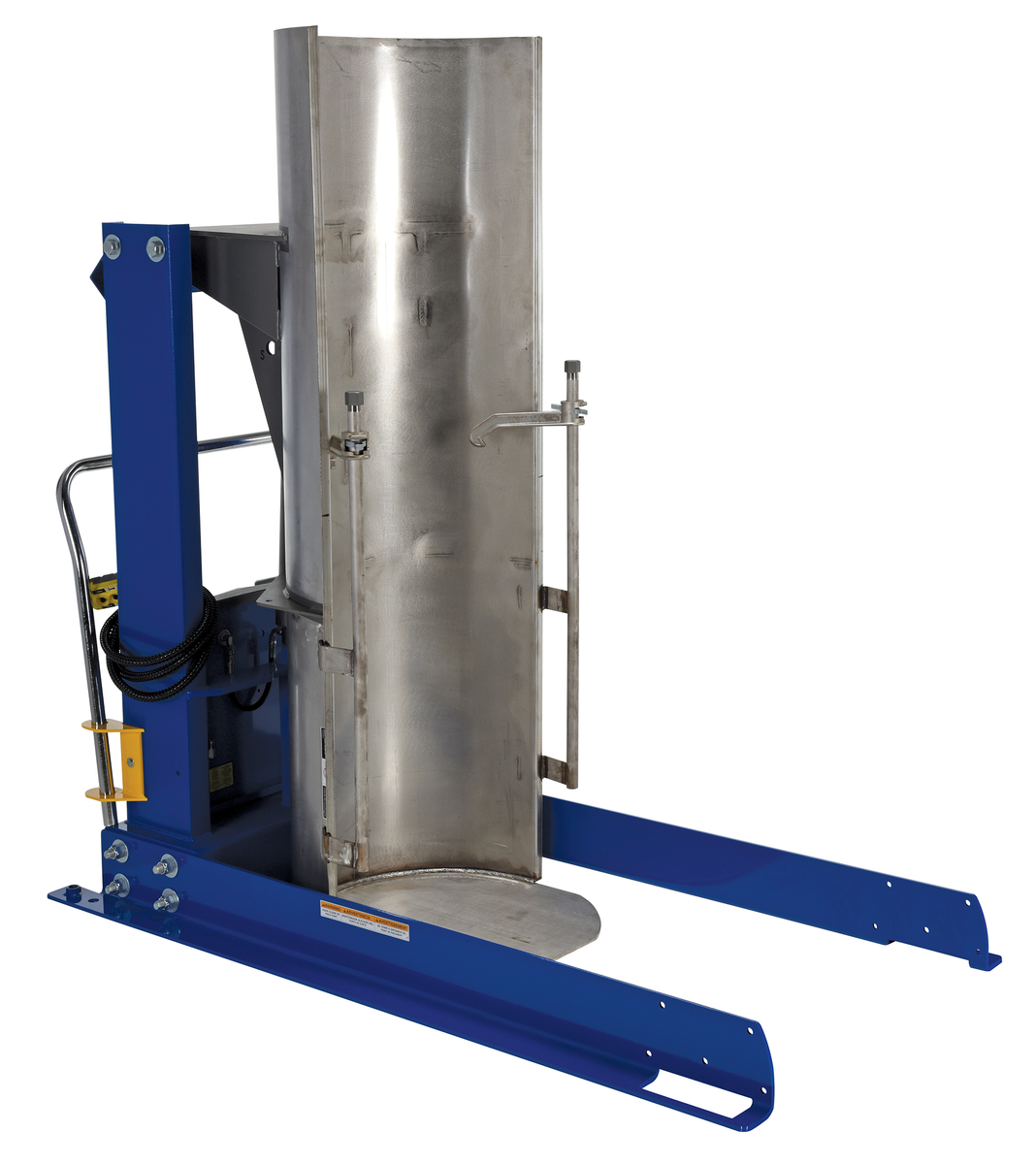

HDD-36-10-S-SSC | Hydraulic | 61 1/2" | 96" | 36" | 60" | 60" | 61 1/2" | 36" | €7,403.15 | |
 |

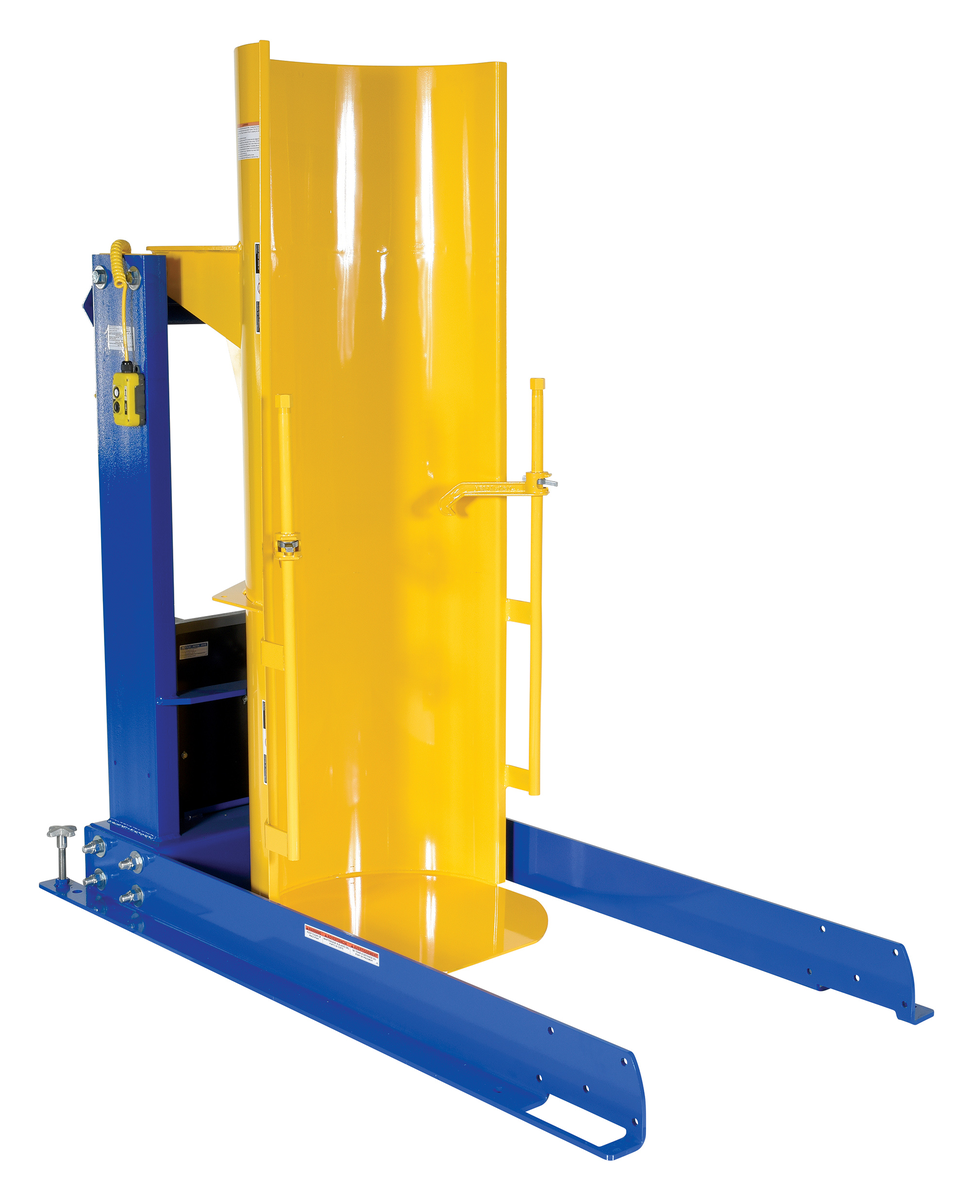

HDD-36-15-S | Hydraulic | 61 1/2" | 96" | 36" | 60" | 60" | 61 1/2" | 36" | €6,861.18 |
