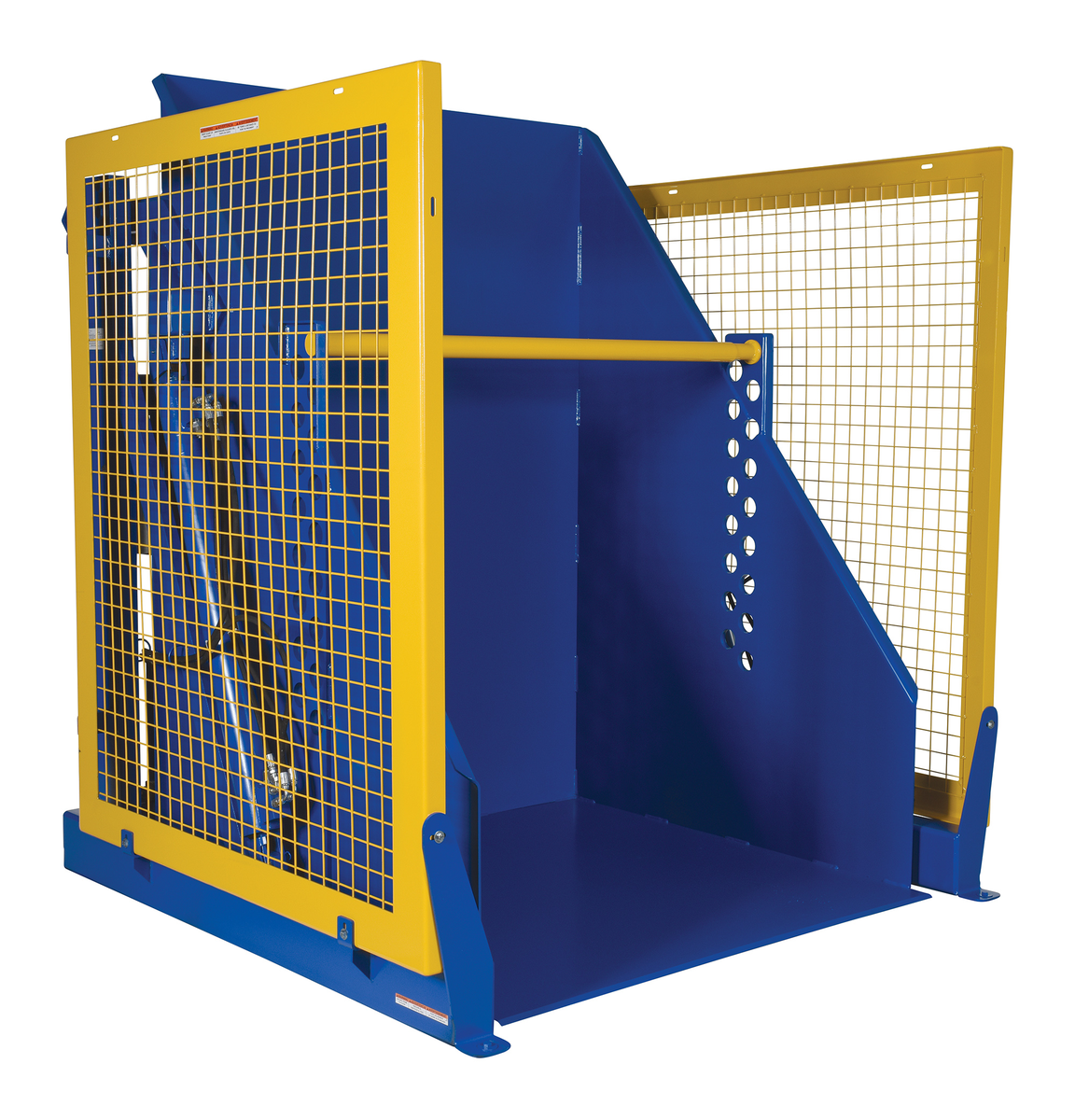

VESTIL HBD-6-60 Steel Electric Hydraulic Box Dumper, 60 Inch Dump Height, 6000 lb Capacity, Blue
Get it by Tuesday, Aug 25
5.00% off
€14,983.85 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bin/Container Dumper |
| Assembled Depth | 69" |
| Assembled Height | 77" |
| Assembled Width | 69" |
| Assembly | Assembled |
| Chute Length | 50" |
| Chute Material | Steel |
| Chute Width | 52" |
| Color Family | Blue, Yellow |
| Control Type | Hand Control Pendant |
| Controller Cord Length | 2 ft. |
| Controls | Pendant |
| Cord Length | 2 ft. |
| Dispense Height | 60" |
| Dump Angle | 45 Deg. |
| Dump Height | 60" |
| Features | Universal Design Will Dump Contents Of Many Types And Sizes Of Containers |
| For Container Size | 18" to 50" |
| Frame Material | Steel |
| Hand Held Control Length | 8 ft. |
| Height | 77" |
| Hold Down Increments | 2" |
| Hp | 5 1/2 hp |
| Included | Protective Mesh Side Screen |
| Length | 68 1/2" |
| Level Height | 77" |
| Load Capacity | 6000 lbs. |
| Lowered Height | 3/8" |
| Material | Steel |
| Max. Chute Reach | 10" |
| Max. Dump Height | 60" |
| Max. Duty Cycle Starts Per Hour | 15 |
| Max. Hold Down Height | 50" |
| Max. Load Capacity | 6000 lbs. |
| Max. Rotation Angle | 135° |
| Max. Rotation Travel | 135° |
| Max. Tilt Angle | 45° |
| Min. Hold Down Height | 18" |
| Motor Hp | 5 1/2 hp |
| Operating Voltage | 460V AC |
| Overall Length | 68 1/2" |
| Overall Width | 69" |
| Phase | 3 |
| Platform Length | 50" |
| Platform Material | Steel |
| Platform Width | 52" |
| Power Cord Length | 2 ft. |
| Rotated Height | 149 1/2" |
| Rotation Height | 149 1/2" |
| Standard Output | AC |
| Usable Chute Length | 50" |
| Usable Chute Width | 52" |
| Voltage | 460V |
| Width | 69" |
Shipping Info:
| Ship weight (kg) | 1002.15 |
| Ship height (cm) | 213.36 |
| Ship length (cm) | 180.34 |
| Ship width (cm) | 180.34 |
| HS code | 8428900290 |
| Country of Origin | US |
Product Variants
| Product | Model | Load Capacity | Rotation Height | Assembled Height | Assembled Depth | Hp | Rotated Height | Level Height | Dispense Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HBD-2-36 | 2000 lbs. | 111" | 53 1/2" | 68 1/2" | 2 hp | 111" | 53 1/2" | 36" | €10,894.17 | |
 |
HBD-2-48 | 2000 lbs. | 129 1/2" | 65" | 68 1/2" | 2 hp | 129 1/2" | 65" | 48" | €12,369.26 | |
 |
HBD-2-60 | 2000 lbs. | 149 1/2" | 77" | 68 1/2" | 2 hp | 149 1/2" | 77" | 60" | €14,176.71 | |
 |
HBD-4-36 | 4000 lbs. | 111" | 53 1/2" | 68 1/2" | 2 hp | 111" | 53 1/2" | 36" | €13,092.10 | |
 |
HBD-4-48 | 4000 lbs. | 129 1/2" | 65" | 68 1/2" | 2 hp | 129 1/2" | 65" | 48" | €13,985.82 | |
 |
HBD-4-60 | 4000 lbs. | 149 1/2" | 77" | 68 1/2" | 2 hp | 149 1/2" | 77" | 60" | €14,581.77 | |
 |
HBD-6-36 | 6000 lbs. | 111" | 53 1/2" | 69" | 5 1/2 hp | 111" | 53 1/2" | 36" | €15,871.96 |
