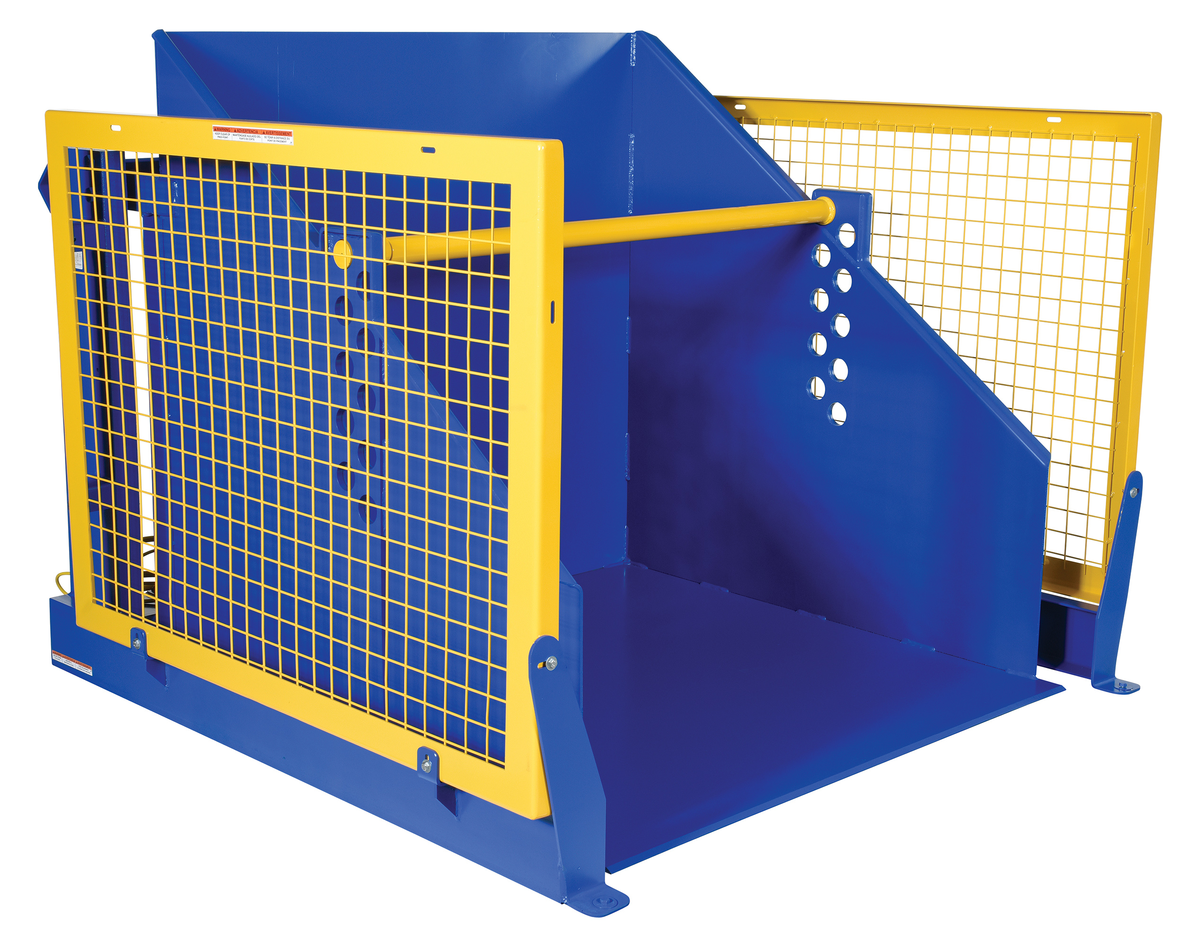

VESTIL HBD-2-36 Steel Electric Hydraulic Box Dumper, 36 Inch Dump Height, 2000 lb Capacity, Blue
Get it by Wednesday, Dec 24
10.00% off
€9,804.75 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bin/Container Dumper |
| Assembly | Assembled |
| Chute Length | 50" |
| Chute Material | Steel |
| Chute Width | 52" |
| Control Type | Hand Control Pendant |
| Controller Cord Length | 2 ft. |
| Controls | Pendant |
| Cord Length | 2 ft. |
| Dispense Height | 36" |
| Dump Angle | 45 Deg. |
| Dump Height | 36" |
| For Container Size | 18" to 36" |
| Frame Material | Steel |
| Hand Held Control Length | 8 ft. |
| Height | 53 1/2" |
| Hold Down Increments | 2" |
| Hp | 2 hp |
| Length | 68 1/2" |
| Level Height | 53.5" |
| Level Height | 53 1/2" |
| Load Capacity | 2000 lbs. |
| Lowered Height | 3/8" |
| Material | Steel |
| Max. Chute Reach | 10" |
| Max. Dump Height | 36" |
| Max. Duty Cycle Starts Per Hour | 15 |
| Max. Rotation Travel | 135° |
| Max. Tilt Angle | 45° |
| Maximum Chute Reach | 10" |
| Maximum Hold Down Height | 36" |
| Maximum Load Capacity | 2000 lbs. |
| Maximum Rotation Angle | 135° |
| Minimum Hold Down Height | 18" |
| Motor Horsepower | 2 hp |
| Operating Voltage | 460V AC |
| Overall Length | 68 1/2" |
| Overall Width | 69" |
| Phase | 3 |
| Platform Length | 50" |
| Platform Material | Steel |
| Platform Width | 52" |
| Power Cord Length | 2 ft. |
| Rotated Height | 111" |
| Rotation Height | 111" |
| Standard Output | AC |
| Usable Chute Length | 50" |
| Usable Chute Width | 52" |
| Voltage | 460V |
| Width | 69" |
Shipping Info:
| Ship weight (kg) | 703.8 |
| Ship height (cm) | 147.32 |
| Ship length (cm) | 170.18 |
| Ship width (cm) | 162.56 |
| HS code | 8428900290 |
| Country of Origin | US |
Product Variants
| Product | Model | Load Capacity | Rotated Height | Hp | Level Height | Dispense Height | Dump Height | Max. Dump Height | For Container Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

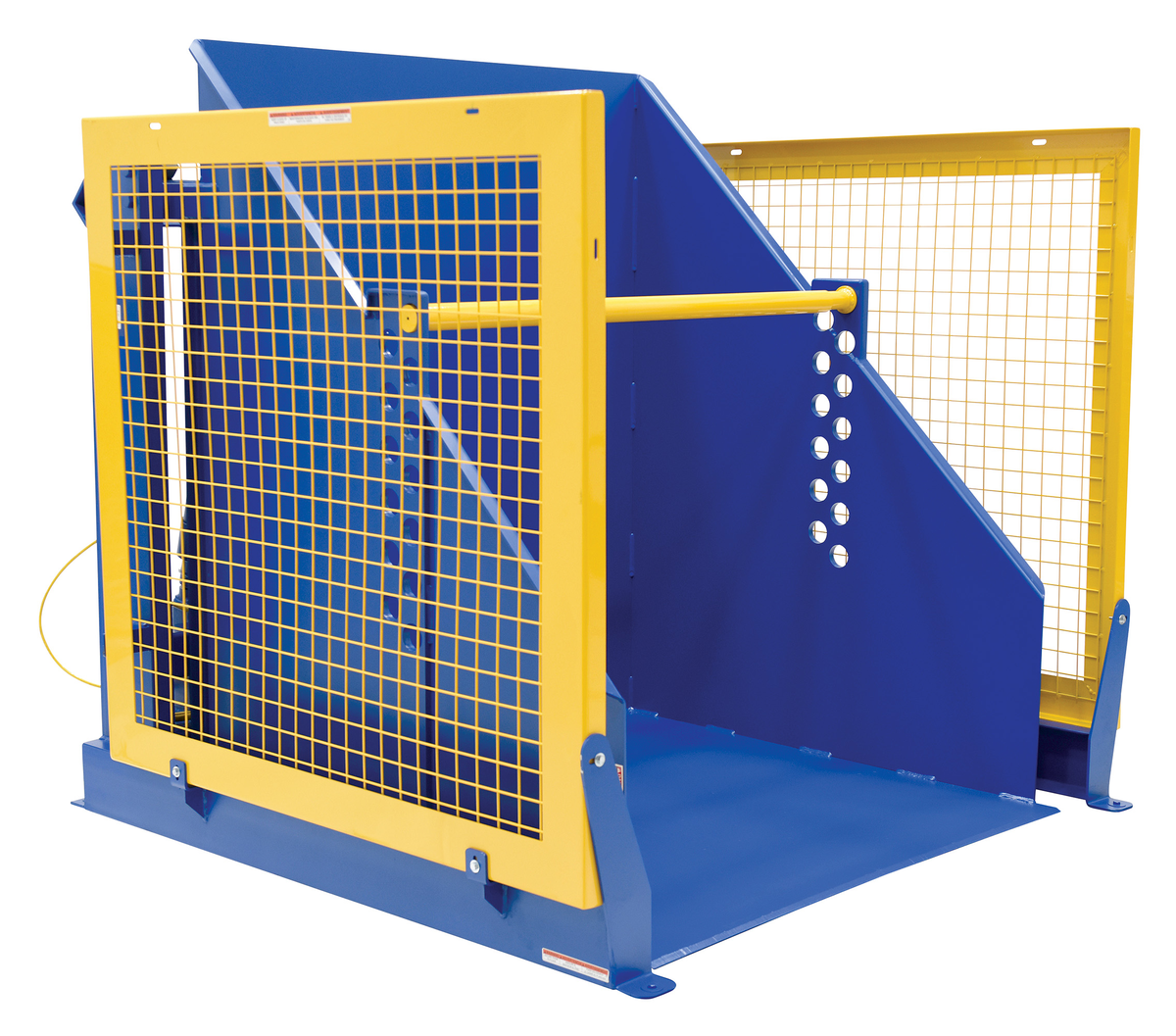

HBD-2-48 | 2000 lbs. | 129 1/2" | 2 hp | 65" | 48" | 48" | 48" | 18" to 42" | €12,369.26 | |
 |

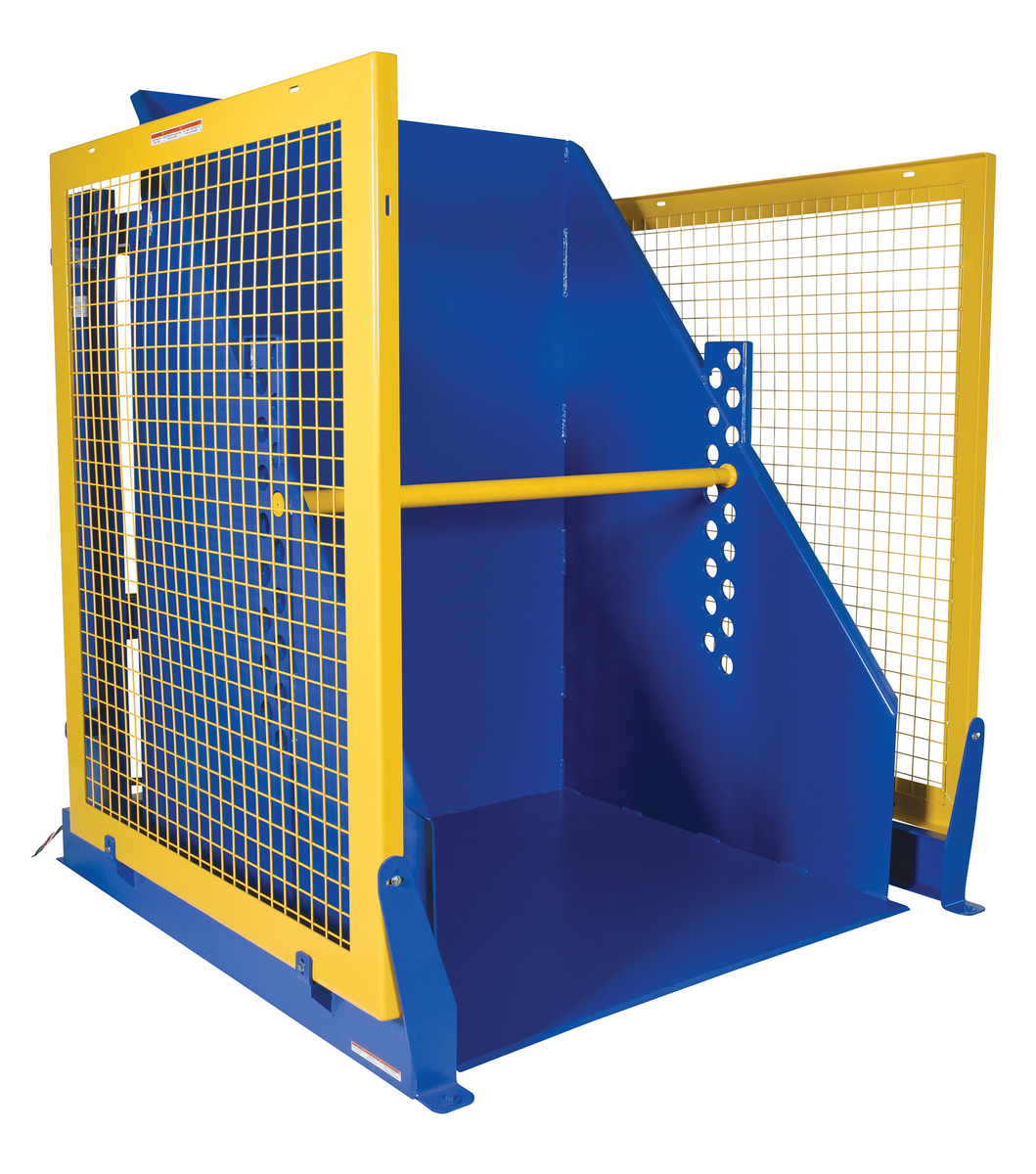

HBD-2-60 | 2000 lbs. | 149 1/2" | 2 hp | 77" | 60" | 60" | 60" | 18" to 50" | €14,176.71 | |
 |

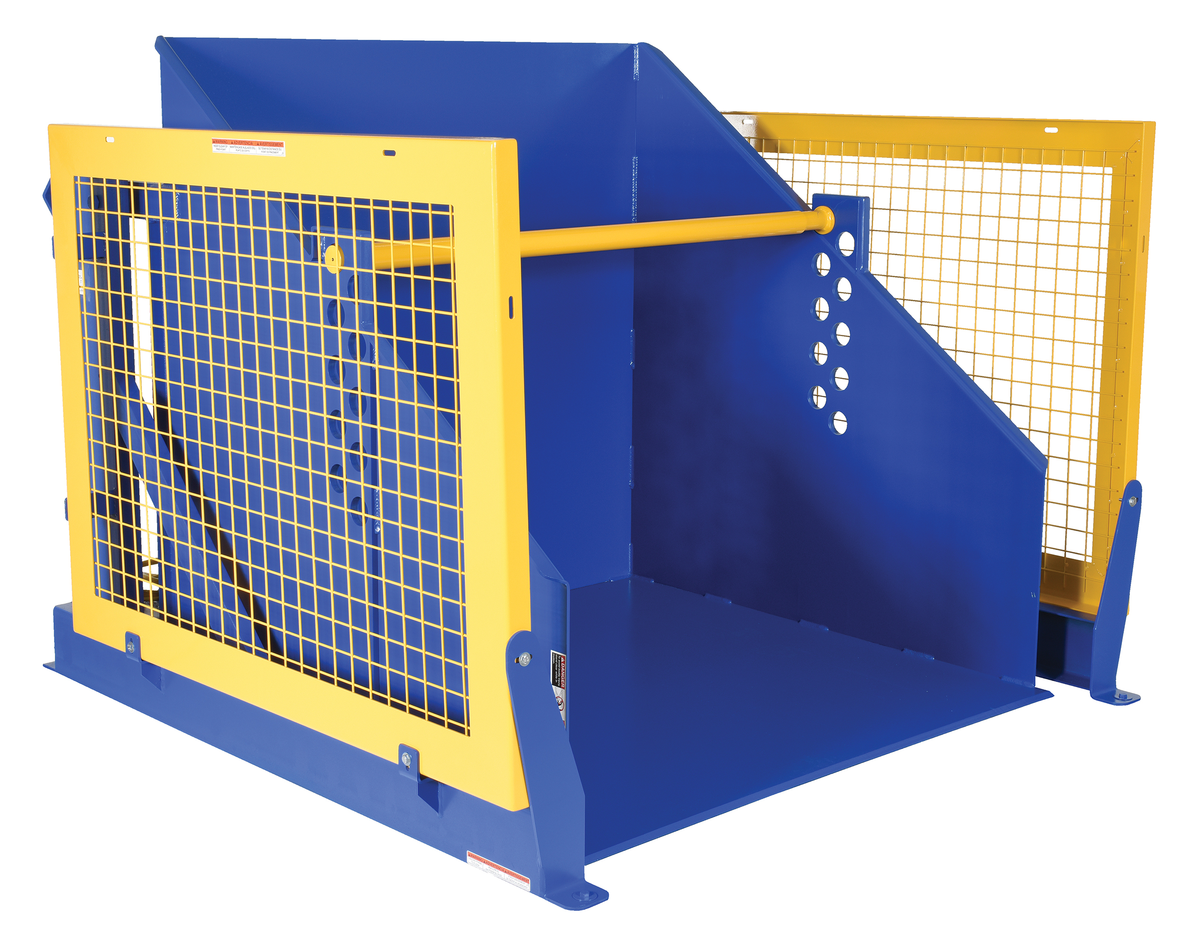

HBD-4-36 | 4000 lbs. | 111" | 2 hp | 53 1/2" | 36" | 36" | 36" | 18" to 36" | €13,092.10 | |
 |
HBD-4-48 | 4000 lbs. | 129 1/2" | 2 hp | 65" | 48" | 48" | 48" | 18" to 42" | €13,985.82 | |
 |
HBD-4-60 | 4000 lbs. | 149 1/2" | 2 hp | 77" | 60" | 60" | 60" | 18" to 50" | €14,581.77 | |
 |

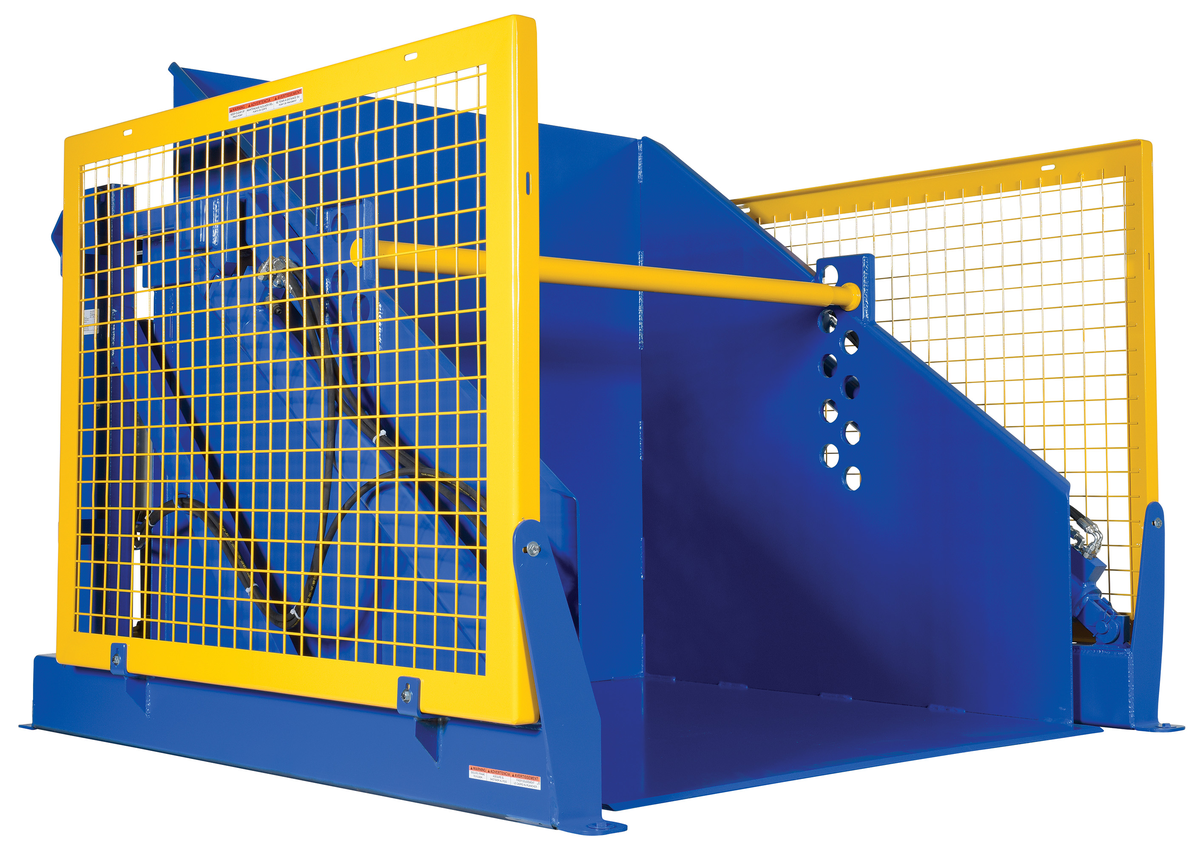

HBD-6-36 | 6000 lbs. | 111" | 5 1/2 hp | 53 1/2" | 36" | 36" | 36" | 18" to 36" | €15,871.96 | |
 |

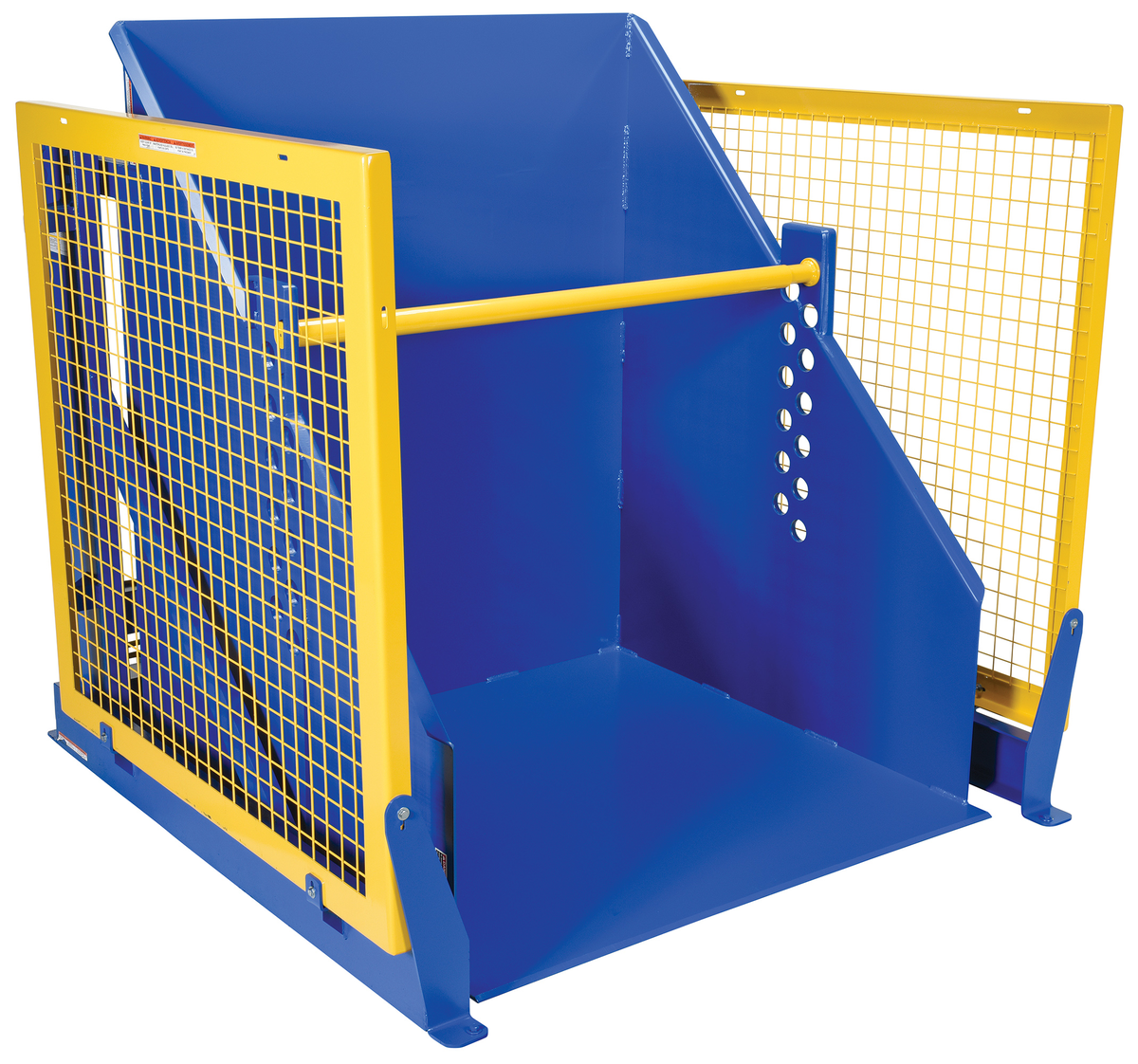

HBD-6-48 | 6000 lbs. | 129 1/2" | 5 1/2 hp | 65" | 48" | 48" | 48" | 18" to 42" | €14,495.70 |
