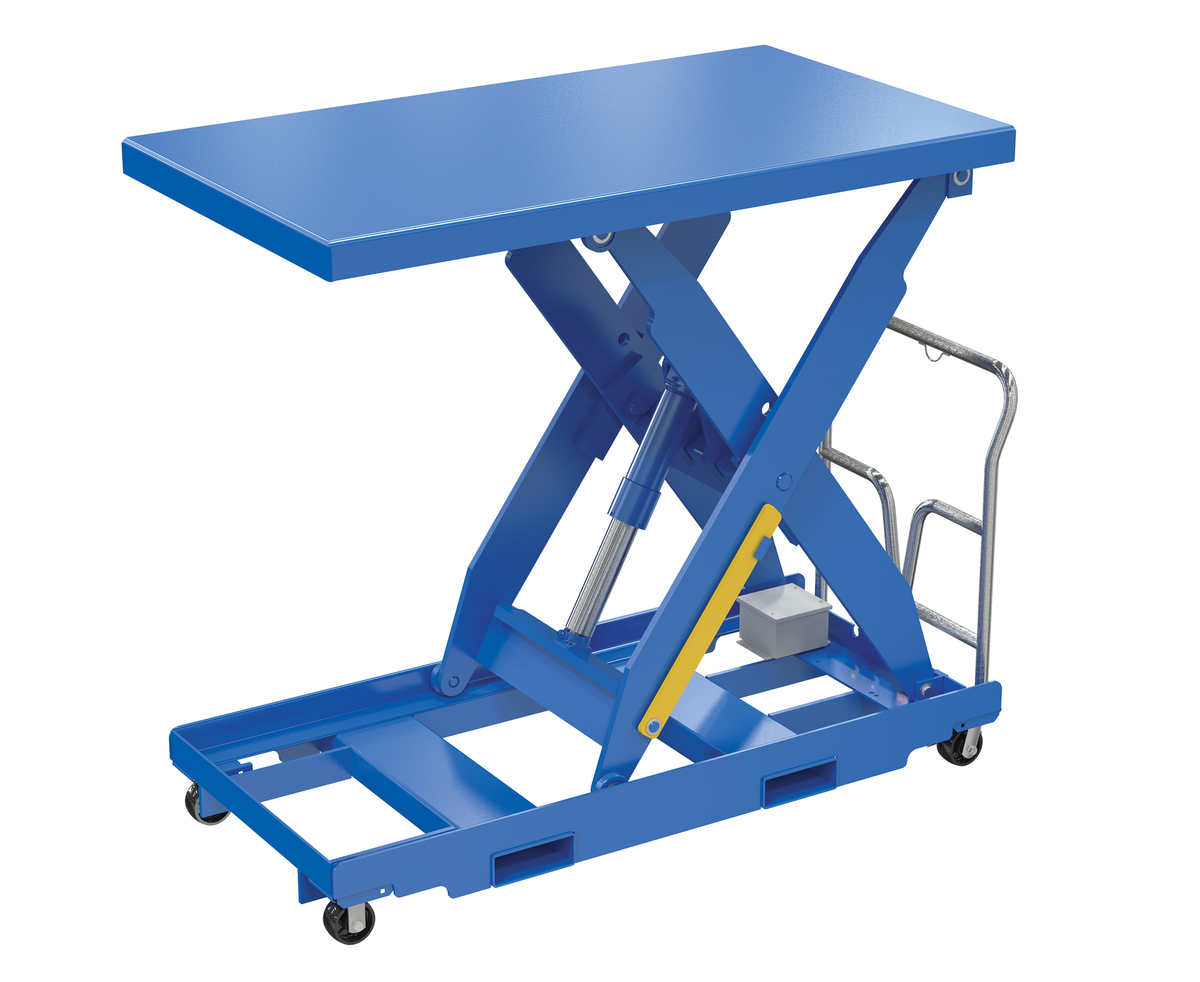

VESTIL EHLTP-4864-1-60-A3 Steel Portable Lift Table, 230 Volt, 3 Phase, 48 x 64 Inch, 1000 lb Capacity, Blue
1000 lbs.
48" x 64"
230V
Get it by Monday, Dec 22
€6,956.15 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Lift Table |
| Assembly | Assembled |
| Capacity | 1000 lbs. |
| Caster Dia. | 2" |
| Caster Material | Glass Filled Nylon |
| Caster Width | 2" |
| Color | Blue |
| Color Family | Blue |
| Fork Pocket Center | 27" |
| Fork Pocket Height | 2 1/2" |
| Fork Pocket Width | 7 1/2" |
| Frame Material | Steel |
| Front Caster Dia. | 4" |
| Front Caster Material | Glass Filled Nylon |
| Handle Height | 36 1/2" |
| Height | 13" |
| Installation Hardware Included | No |
| Length | 67" |
| Lowered Height | 13" |
| Material | Steel |
| Max. Travel Distance | 47" |
| Min. Height | 13" |
| Motor Hp | 1/2 hp |
| No. Of Caster | 4 |
| Operation Type | Hand Operated |
| Overload Protection | Yes |
| Phase | 3 |
| Platform Length | 64" |
| Platform Material | Steel |
| Portable | Yes |
| Power Source | Electric Corded |
| Raised Height | 60" |
| Rear Caster Dia. | 4" |
| Rear Caster Material | Glass Filled Nylon |
| Remote Cord Length | 8 ft. |
| Voltage | 230V |
| Width | 36" |
Shipping Info:
| Ship weight (kg) | 675 |
| Ship height (cm) | 33.02 |
| Ship length (cm) | 170.18 |
| Ship width (cm) | 91.44 |
| Country of Origin | US |
Product Variants
| Product | Model | Platform Length | Platform Width | Raised Height | Phase | Caster Dia. | Motor Hp | Max. Travel Distance | Installation Hardware Included | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EHLTP-3048-1-48-A1 | - | 30" | 48" | 1 | 2" | 17/100 hp | 35" | No | €5,196.40 | |
 |
EHLTP-3048-1-48-A2 | 48" | 30" | 48" | 1 | 4" | 1/4 hp | - | - | €5,078.66 | |
 |
EHLTP-3048-1-48-A3 | 48" | 30" | 48" | 3 | 4" | 1/2 hp | - | - | €5,078.66 | |
 |
EHLTP-3048-1-48-A4 | 48" | 30" | 48" | 3 | 2" | 1 hp | 35" | No | €5,078.66 | |
 |
EHLTP-3048-1-48-D2 | 48" | 30" | 48" | 1 | 2" | 1/2 hp | 35" | No | €5,239.88 | |
 |
EHLTP-3048-2-48-A1 | 48" | 30" | 48" | 1 | 2" | 17/100 hp | 35" | No | €5,508.15 | |
 |
EHLTP-3048-2-48-A2 | 48" | 30" | 48" | 1 | 2" | 1/4 hp | 35" | No | €5,389.35 |
