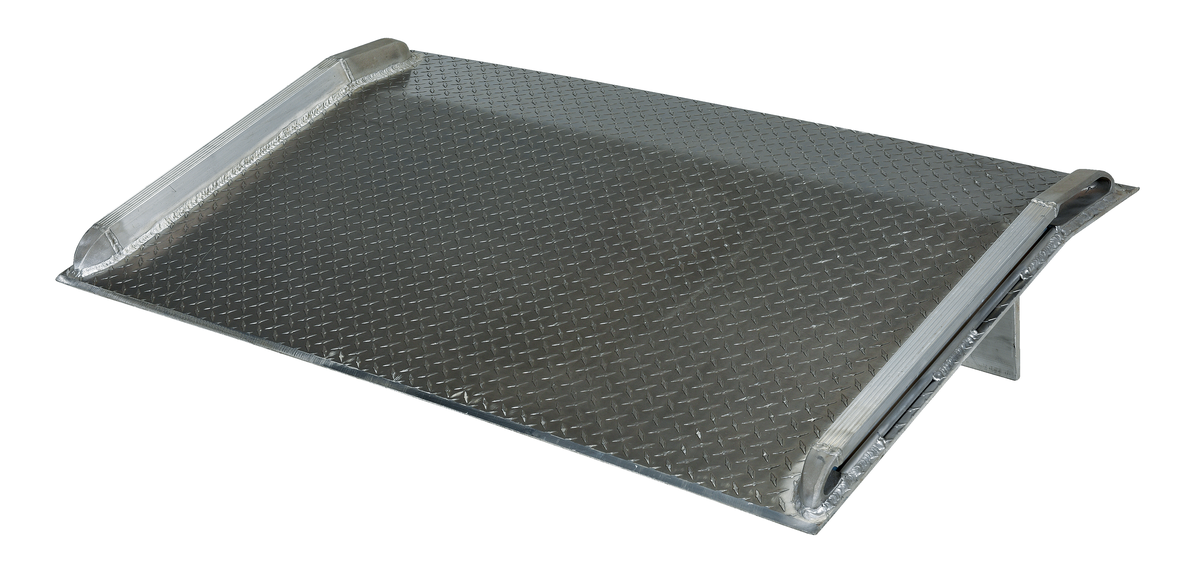

VESTIL BTA-05007866 Truck Dock Board, 66 x 78 Inch, 5000 lb Capacity, Aluminium, Silver
78" x 66"
Get it by Wednesday, Dec 17
€3,587.25 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Dock Board |
| Ansi Class | MH 30.2 |
| Assembly | Assembled |
| Bevel Angle | 11° |
| Color | Silver |
| Color Family | Silver |
| Curb Height | 2 3/4" |
| Curb Height (in.) | 2 3/4" |
| Curb Width | 2 1/4" |
| Distance From Bend To Edge | 9" |
| Distance From Leg To Edge | 12" |
| Edge Type | Beveled |
| Equipped With | Welded Aluminum Locking Legs |
| Height | 15 3/4" |
| Height Differential | 11" |
| Length | 66" |
| Load Capacity | 5000 lbs. |
| Material | Aluminum |
| Measuring Units | EACH |
| Plate Thickness | 3/8" |
| Surface Type | Raised-Diamond Treadplate |
| Usable Length | 66" |
| Usable Width | 73 1/2" |
| Width | 78" |
Shipping Info:
| Ship weight (kg) | 114.75 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 167.64 |
| Ship width (cm) | 198.12 |
| HS code | 7610900080 |
| Country of Origin | US |
Product Variants
| Product | Model | Overall Width | Overall Length | Usable Width | Height Differential | Curb Width | Curb Height | Usable Length | Plate Thickness | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
BTA-05006030 | 60" | 29 7/8" | 55 1/4" | 4" | 2 1/8" | 2" | 30" | 1/4" | €1,265.44 | |
![]() |
BTA-05005454 | - | - | 49 3/4" | 8 1/2" | 2 1/8" | 2" | 54" | 0.312" | €1,263.17 | |
![]() |
BTA-05005466 | - | - | 49 3/4" | 11" | 2 1/8" | 2" | 66" | 0.312" | €1,543.24 | |
![]() |
BTA-05005478 | - | - | 49 1/2" | 13" | 2 1/4" | 2 3/4" | 78" | 0.312" | €1,744.72 | |
![]() |
BTA-05006036 | - | - | 55 1/4" | 5" | 2 1/8" | 2" | 35.812" | 1/4" | €879.17 | |
![]() |
BTA-05006072 | - | - | 55" | 12" | 2 1/4" | 2 3/4" | 71 3/4" | 0.312" | €1,742.68 | |
![]() |
BTA-05006660 | - | - | 61" | 10" | 2 1/4" | 2 3/4" | 59 3/4" | 0.312" | €1,659.97 |
