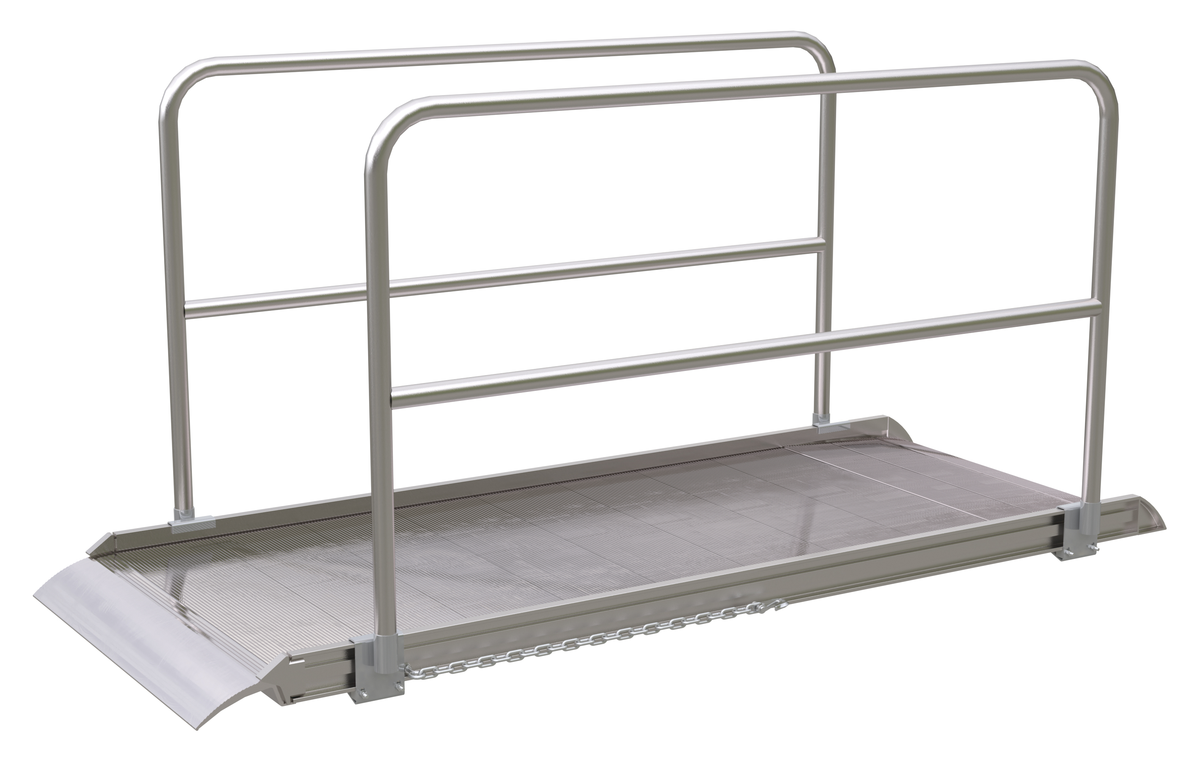

VESTIL AWR-38-8A-HR Aluminium Wheel Walk Ramp, Overlapping Style with Handrails, 96 x 38 Inch, 2500 lb capacity, Silver
96" x 38"
Rail Overlap
Get it by Monday, Dec 22
€1,453.07 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Walk Ramp |
| Assembly | Assembled |
| Batteries Included | No |
| Capacity With 2 Wheel Cart | 1650 lbs. |
| Capacity With 4 Wheel Cart | 2500 lbs. |
| Color | Silver |
| Color Family | Silver |
| Curb Height (in.) | 1 1/2" |
| Depth | 96" |
| Distance Between Curbs | 38" |
| Handrail Color | Silver |
| Handrail Height | 40 1/4" |
| Handrails Included | Yes |
| Height | 45.333" |
| Includes | 2 Bolt On Handrails |
| Installation Type | Bolt On |
| Length | 8 ft. |
| Material | Aluminum |
| Max. Height | 29" |
| Midrail | 18.438" |
| Midrail Height | 18.444" |
| Min. Height | 6" |
| Number Of Handrails | 2 |
| Overall Length | 8 ft. |
| Overall Width | 38" |
| Railing Height | 40 1/4" |
| Ramp Frame Material | Aluminum |
| Ramp Grate Material | Aluminum |
| Safety Curb | 1 1/2" |
| Usable Length | 96" |
| Usable Rail Length | 72" |
| Usable Ramp Length | 96" |
| Usable Ramp Width | 36" |
| Usable Width | 36" |
| Weight Capacity | 2500 lbs. |
Shipping Info:
| Ship weight (kg) | 67.5 |
| Ship height (cm) | 73.66 |
| Ship width (cm) | 96.52 |
| Country of Origin | US |
Product Variants
| Product | Model | Overall Length | Depth | Distance Between Curbs | Usable Ramp Width | Usable Ramp Length | Usable Length | Capacity With 2 Wheel Cart | Capacity With 4 Wheel Cart | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

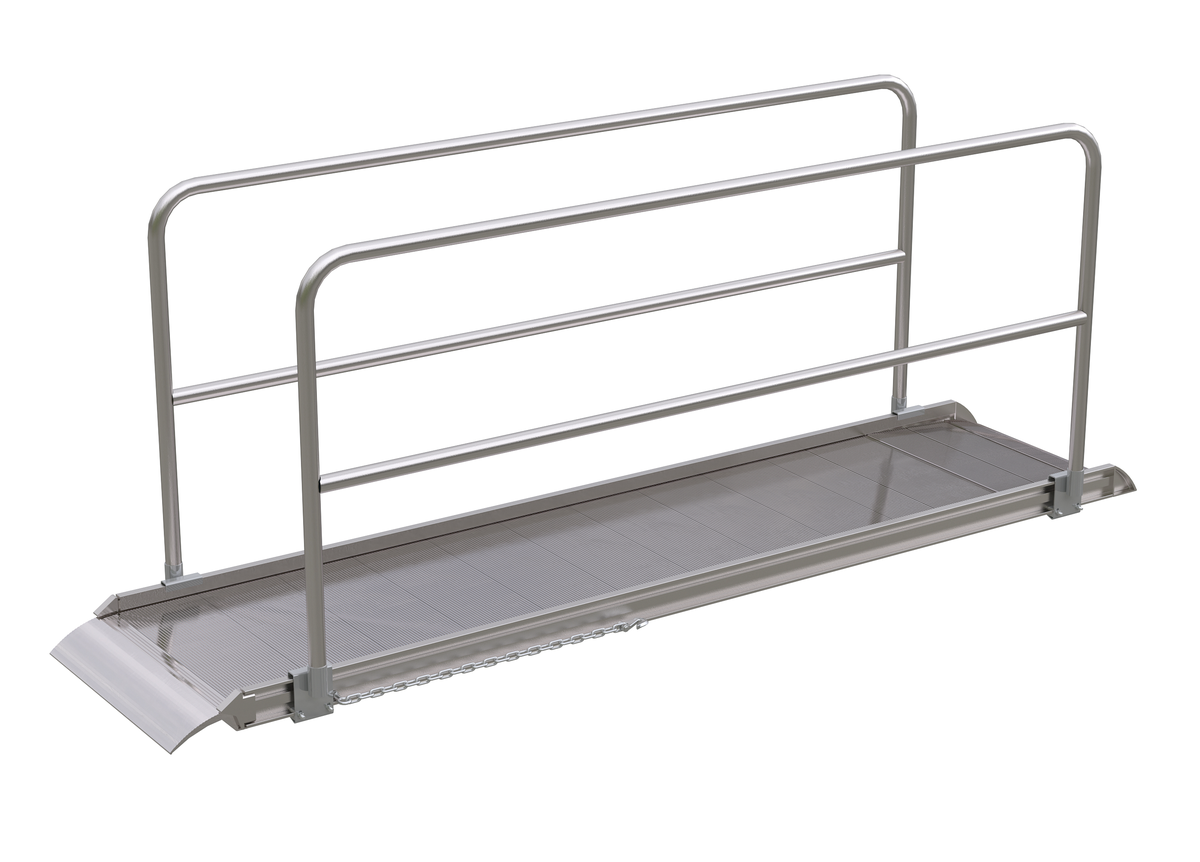

AWR-28-10A-HR | - | 120" | 28" | 26" | 120" | 120" | 1500 lbs. | 2200 lbs. | €1,478.51 | |
 |

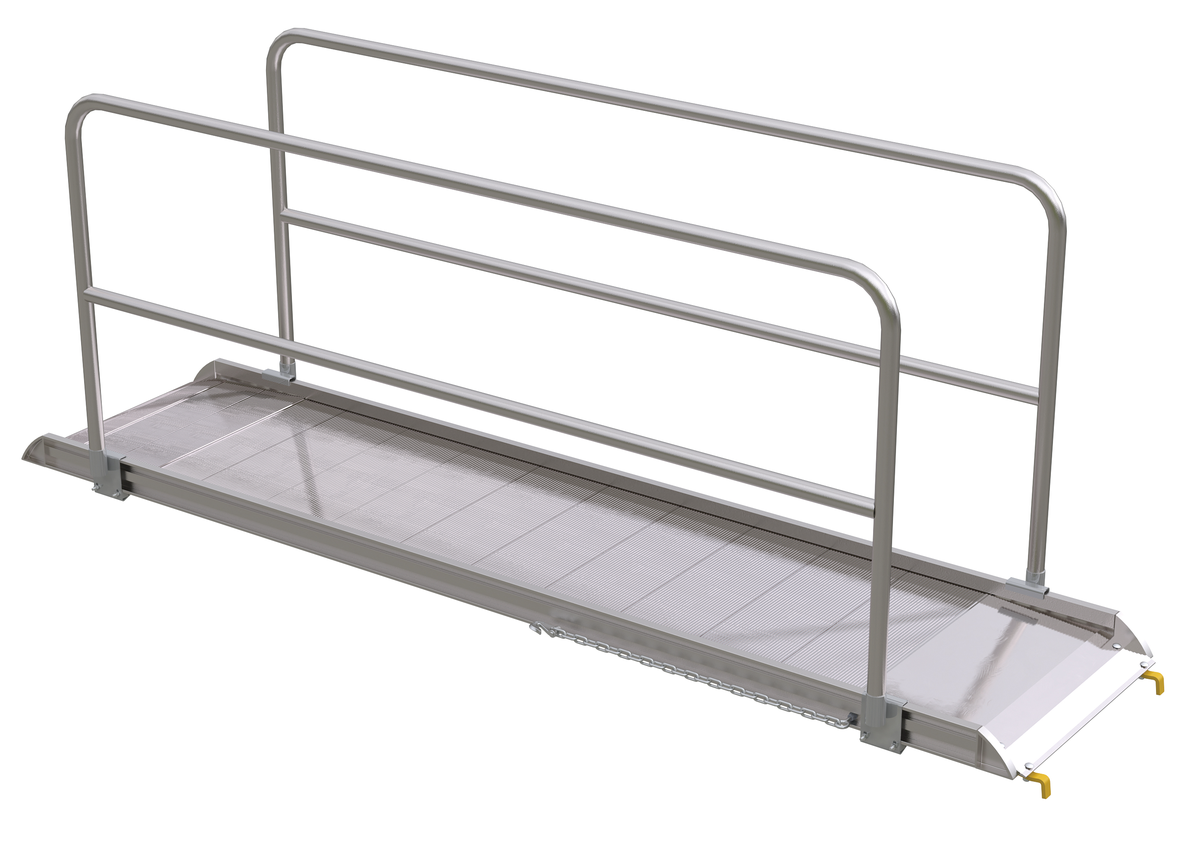

AWR-28-10B-HR | - | 123" | 28" | 26" | 121.571" | 121.562" | 1500 lbs. | 2200 lbs. | €1,430.76 | |
 |

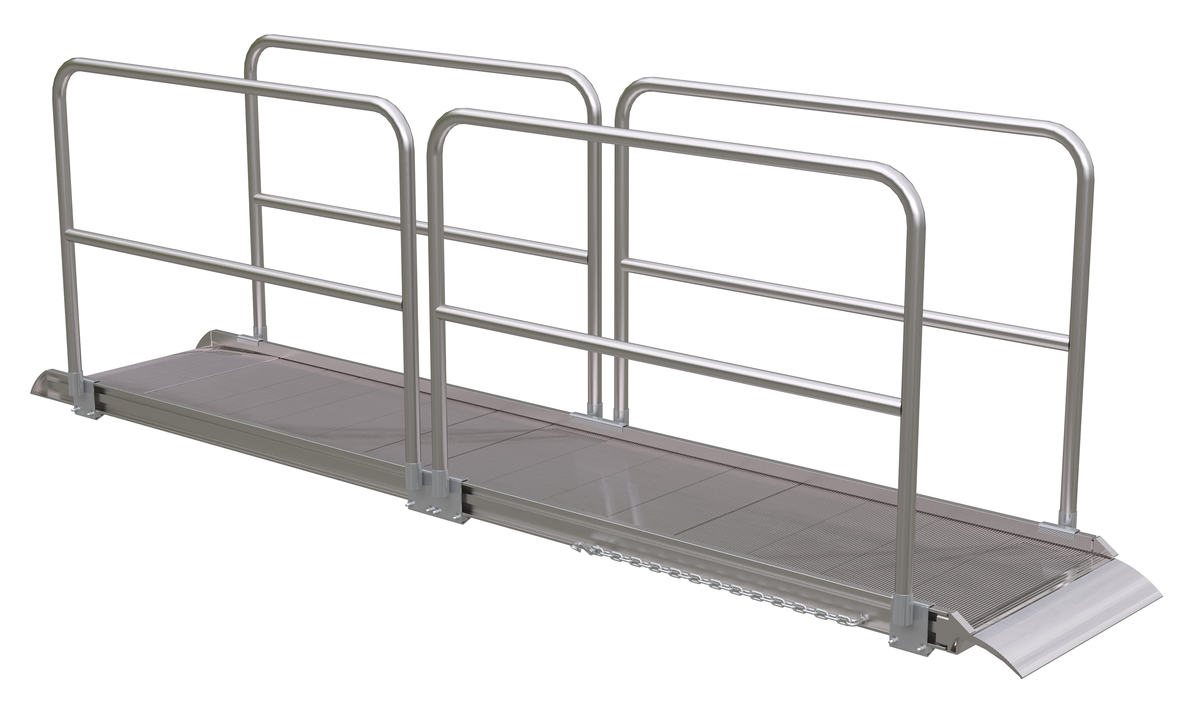

AWR-28-12A-HR | - | 144" | 28" | 26" | 144" | 144" | 1400 lbs. | 1900 lbs. | €1,999.36 | |
 |

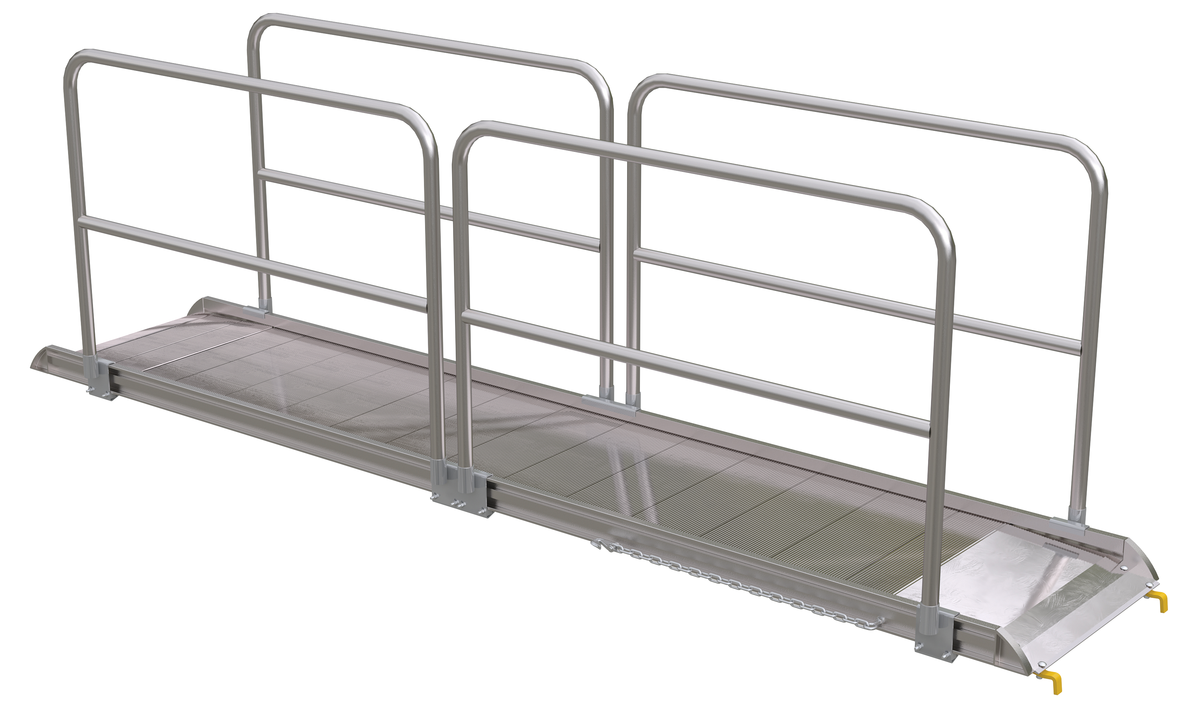

AWR-28-12B-HR | - | 147" | 28" | 26" | 145.444" | 145.438" | 1400 lbs. | 1900 lbs. | €1,980.20 | |
 |

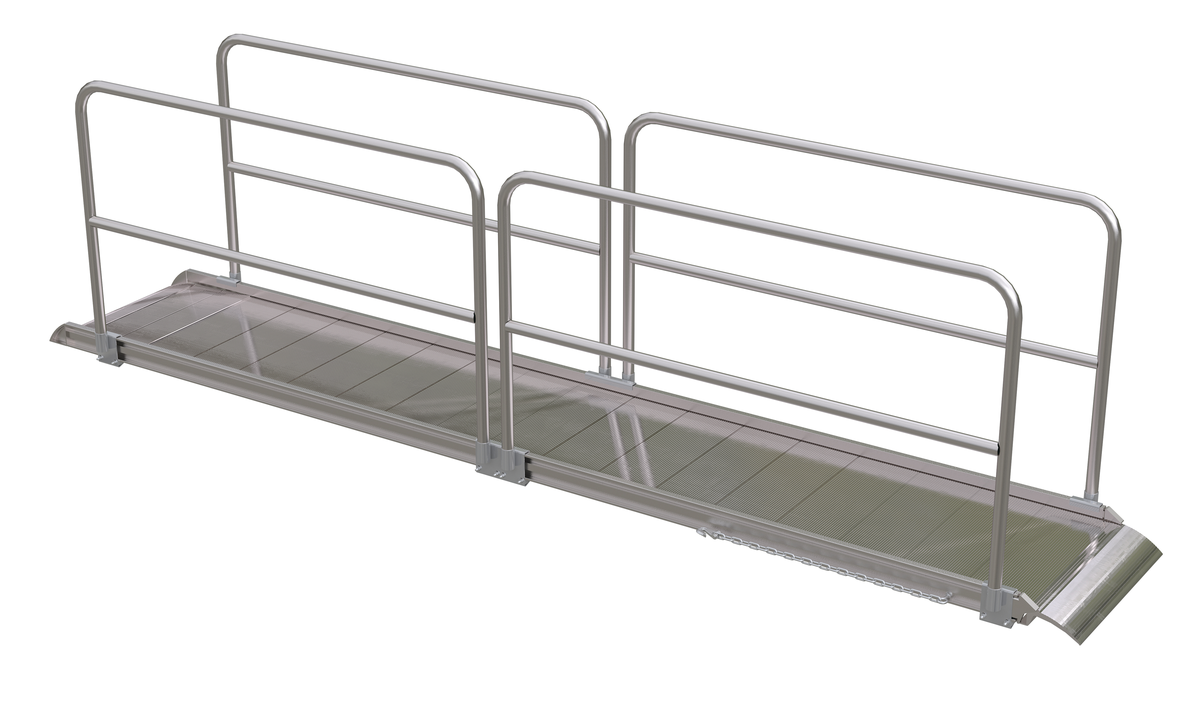

AWR-28-14A-HR | - | 168" | 28" | 26" | 168" | 168" | 1200 lbs. | 1600 lbs. | €2,175.46 | |
 |

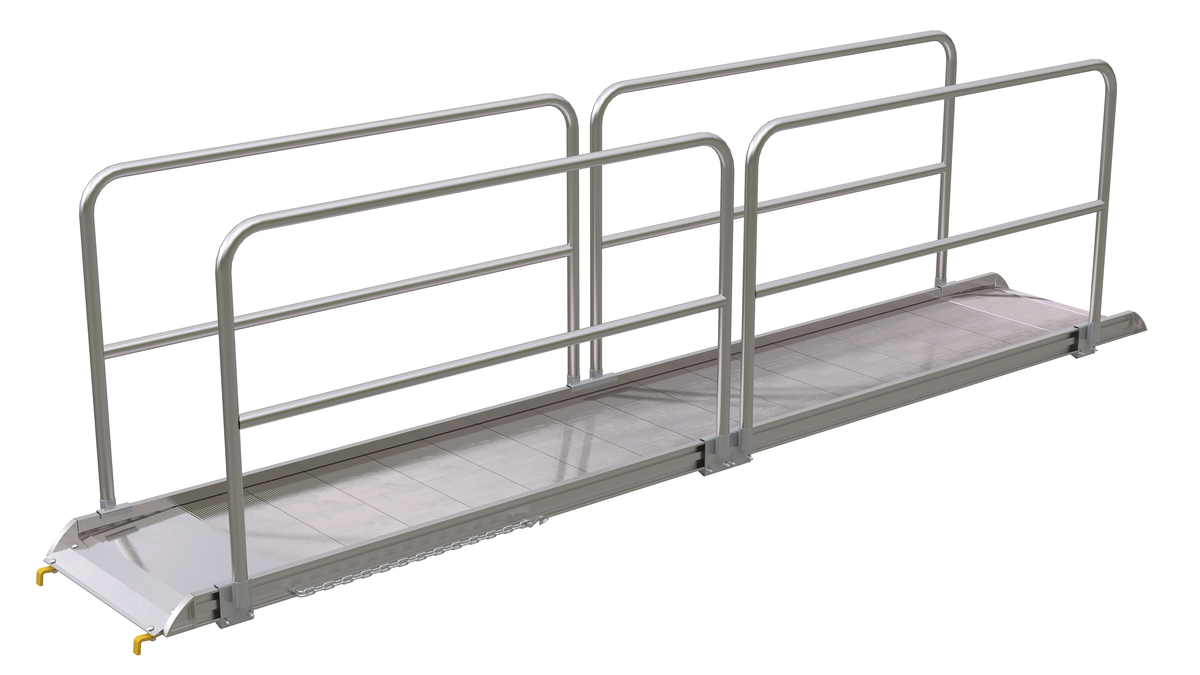

AWR-28-14B-HR | - | 170 4/5" | 28" | 26" | 169 1/4" | 169 1/4" | 1200 lbs. | 1600 lbs. | €2,103.29 | |
 |

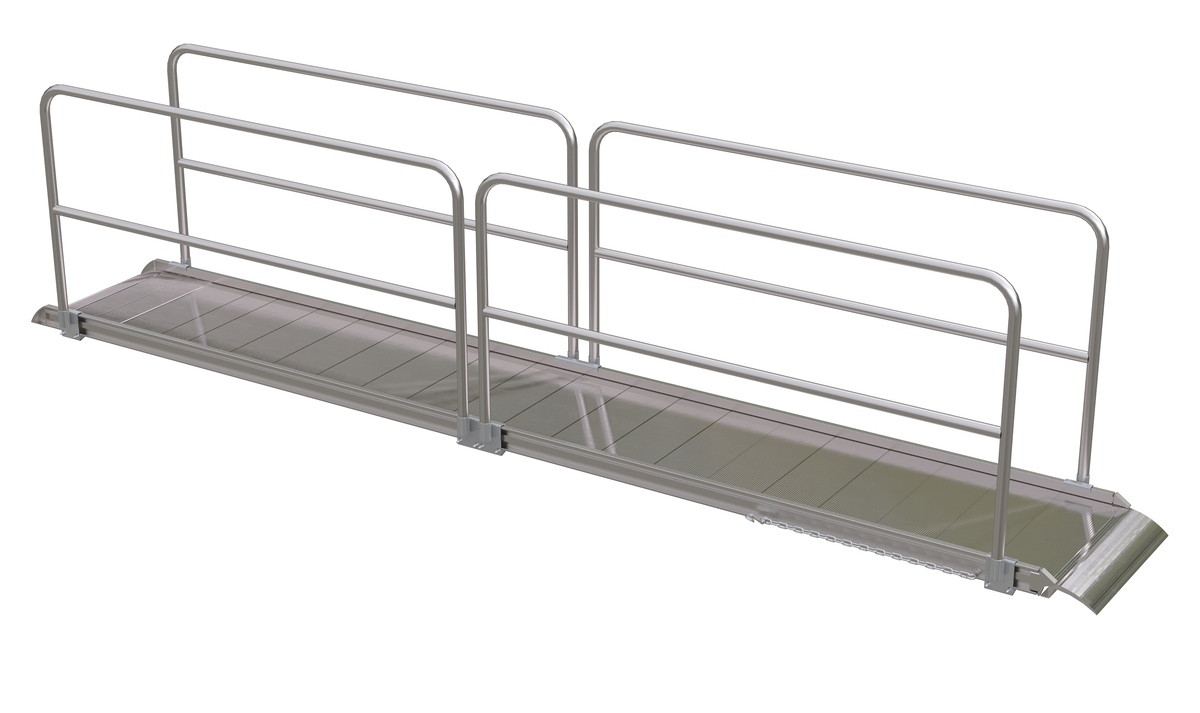

AWR-28-16A-HR | - | 192" | 28" | 26" | 192" | 192" | 1000 lbs. | 1000 lbs. | €2,371.66 | RFQ
|
